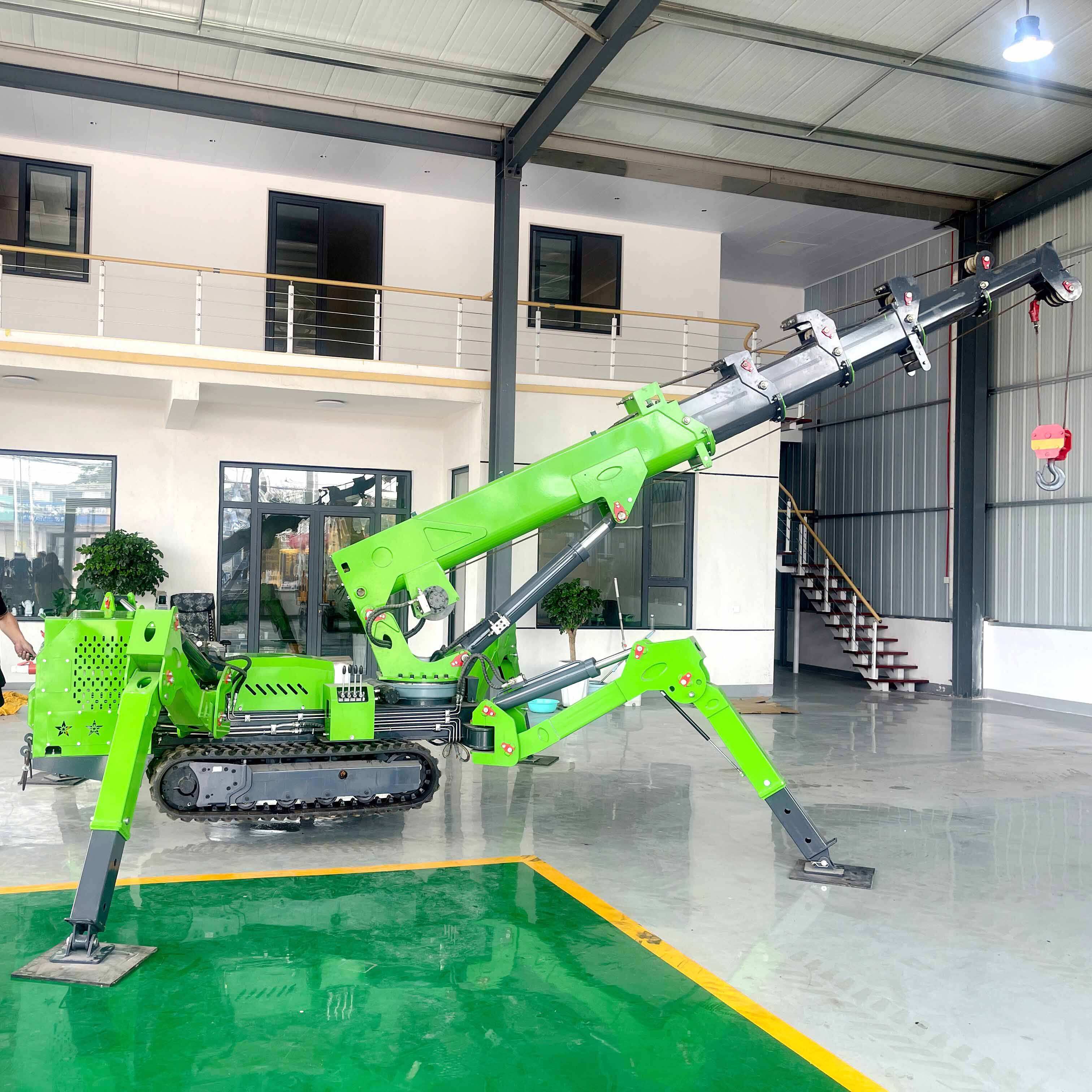

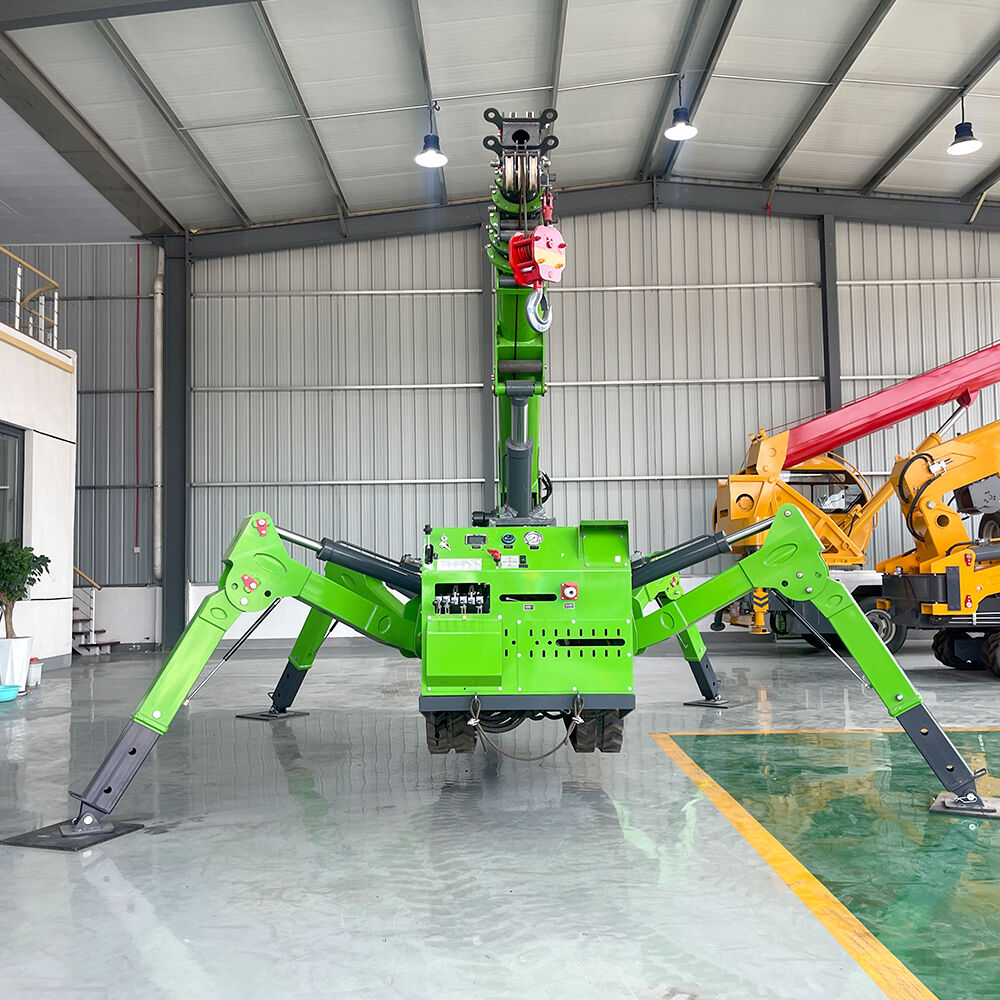

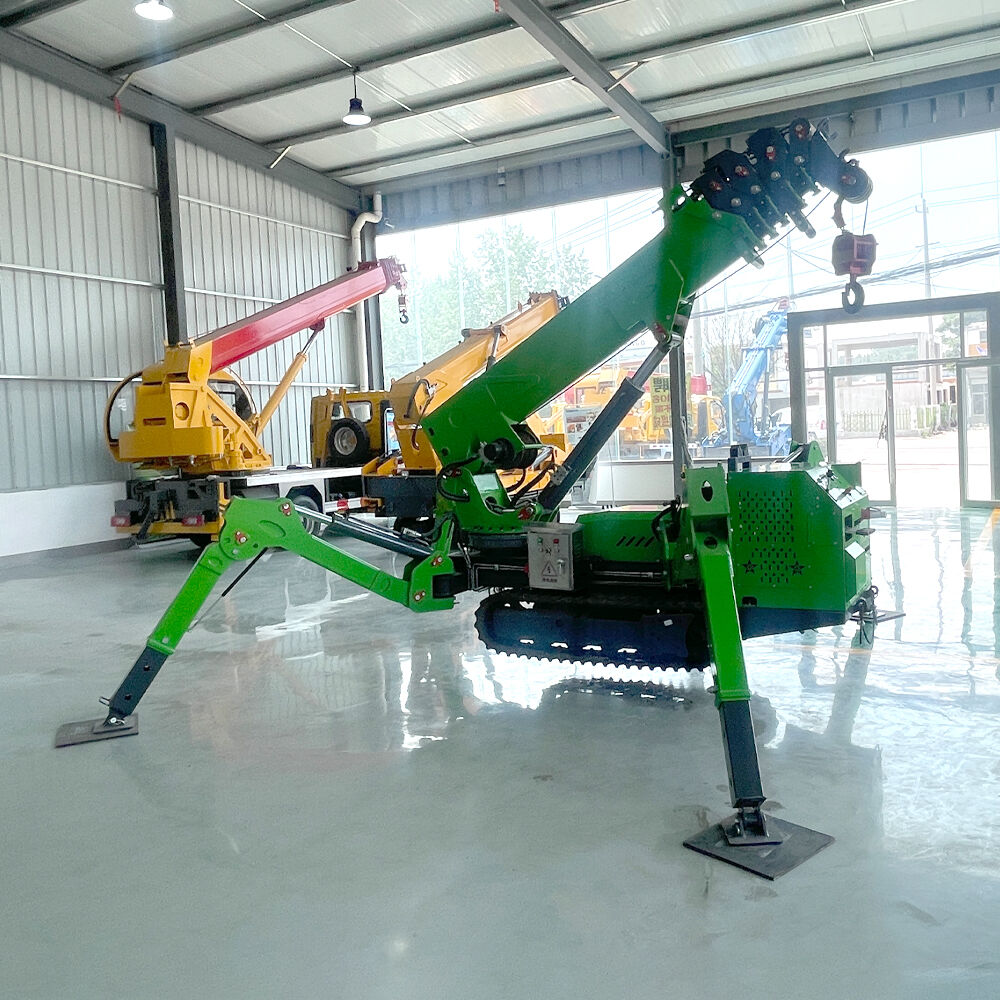

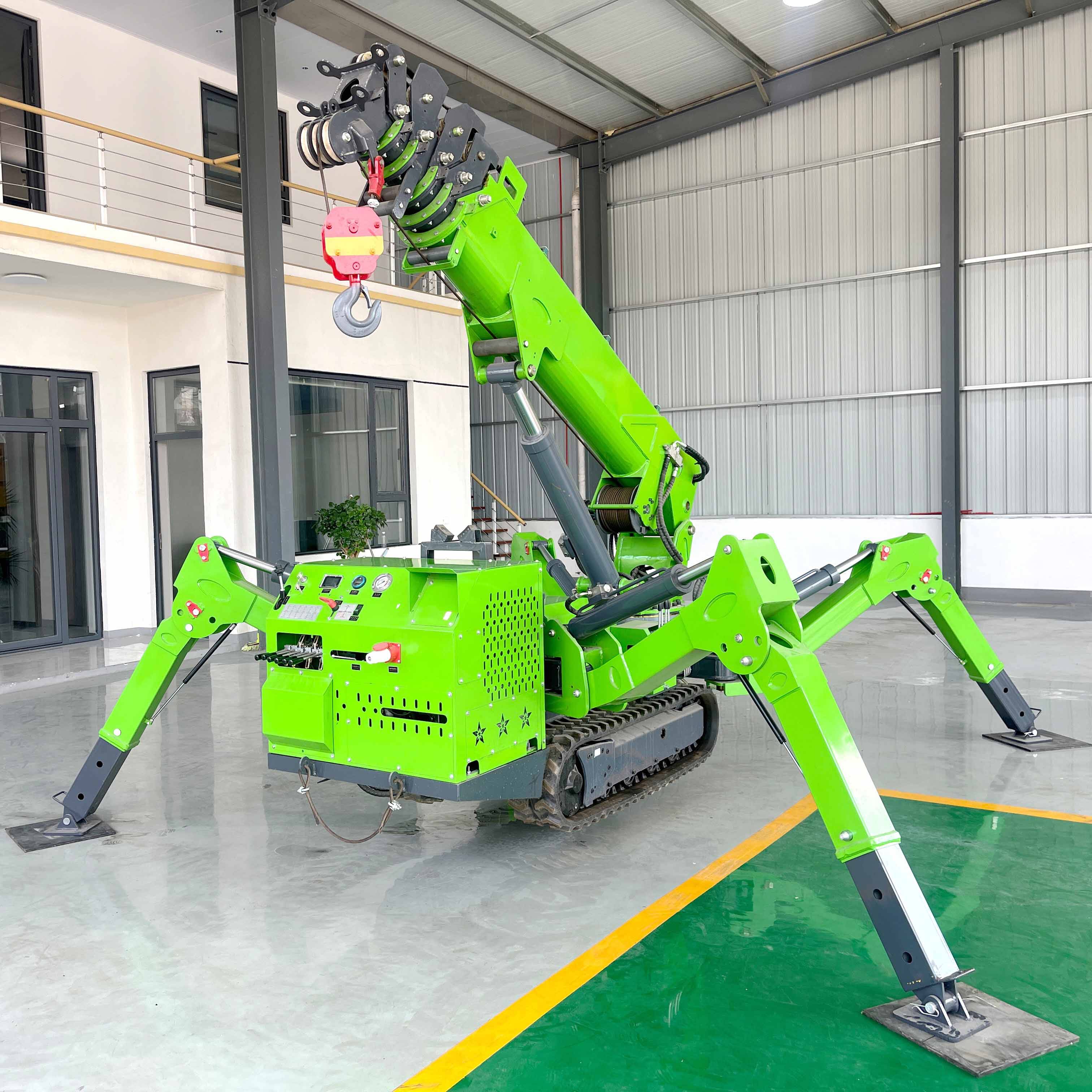

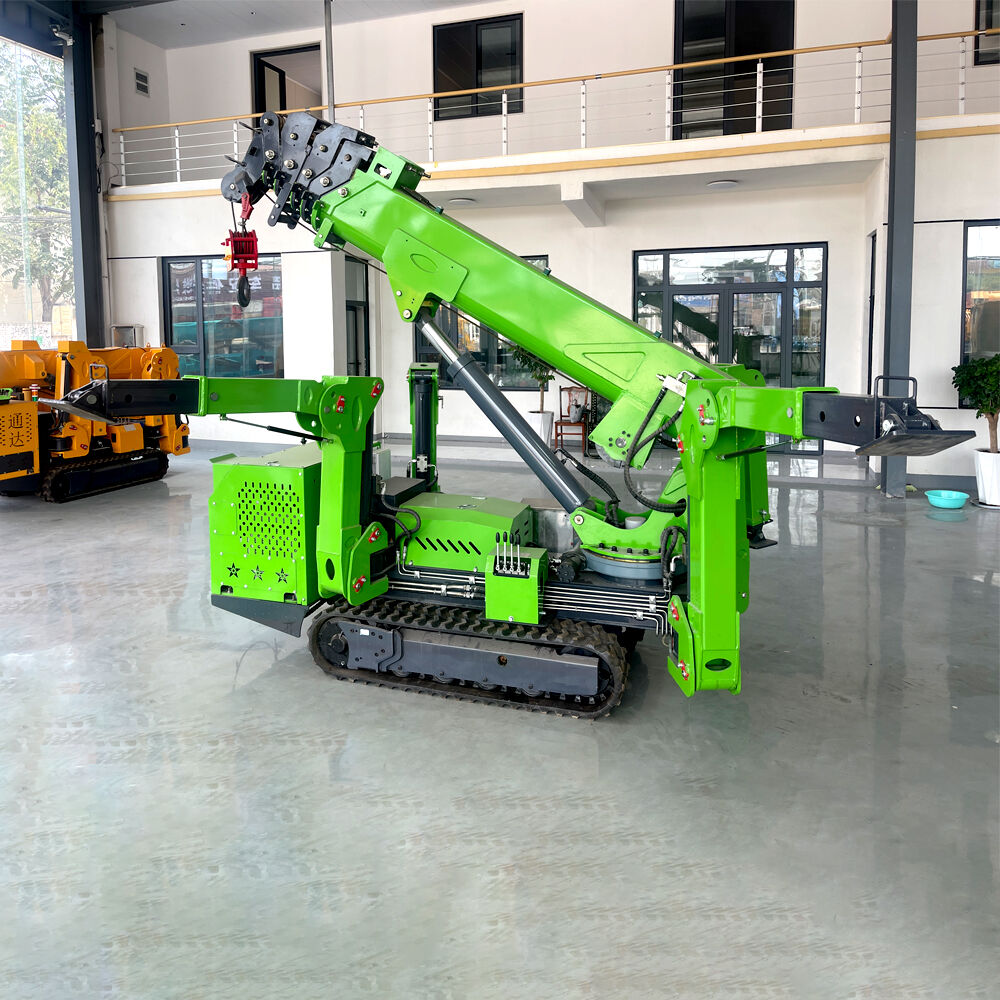

3 ton crawler spider Crane
This compact 3-ton spider crane is designed for tight indoor spaces and narrow alleyways, offering strong lifting power with precise multi-angle operation. Its 5-section telescopic boom, 360° continuous rotation, and stable outriggers ensure smooth, accurate handling for decoration work, equipment installation, and small outdoor projects. Powered by either a 5.5kW electric motor or a 12kW diesel engine, it delivers efficient, easy-to-use performance for lightweight lifting tasks.
- Overview
- Recommended Products
Model |
YTW3.0 |
Specification |
2.95T * 1.3m |
Maximum Working Radius |
8.3m * 0.2T |
Maximum Ground Lifting Height |
9.2m |
Hook Lifting Speed |
10m/min (4 ropes) |
Steel Rope |
φ10mm * 50m |
Boom Type |
5-angle automatic 5-section |
Boom Length |
2.8m - 8.3m (5 sections, 2.5m each) |
Boom Telescopic Length/Time |
2.8m - 8.3m / 25sec (20sec at increased speed) |
Boom Angle/Time |
0° - 80° / 18sec (16sec at increased speed) |
Slew Angle/Time |
0° - 360° continuous / 2.1rpm |
Maximum Extended Dimensions |
5100mm (Left-Right) * 4060mm (Front-Rear) |
Travel Mode |
Hydraulic motor drive |
Travel Speed |
0 - 2.5km/h (Forward & Backward) |
Gradeability |
20° |
Ground Pressure |
49.0Kpa (0.50kgf/cm²) |
Electric Motor Model |
Three-phase AC asynchronous motor |
Working Voltage (Frequency) |
380V (50Hz) |
Power (Electric Motor) |
5.5KW |
Diesel Engine Model |
Youpu 2V80 |
Emission Standard |
National II (China) |
Rated Output Power (Diesel Engine) |
12KW |
Starting Method (Diesel Engine) |
Electric starting |
Fuel Type |
Diesel fuel |
System Voltage |
12V |
Overall Dimensions (LWH) |
3200mm * 980mm * 1750mm |
Vehicle Weight |
2.65T |
