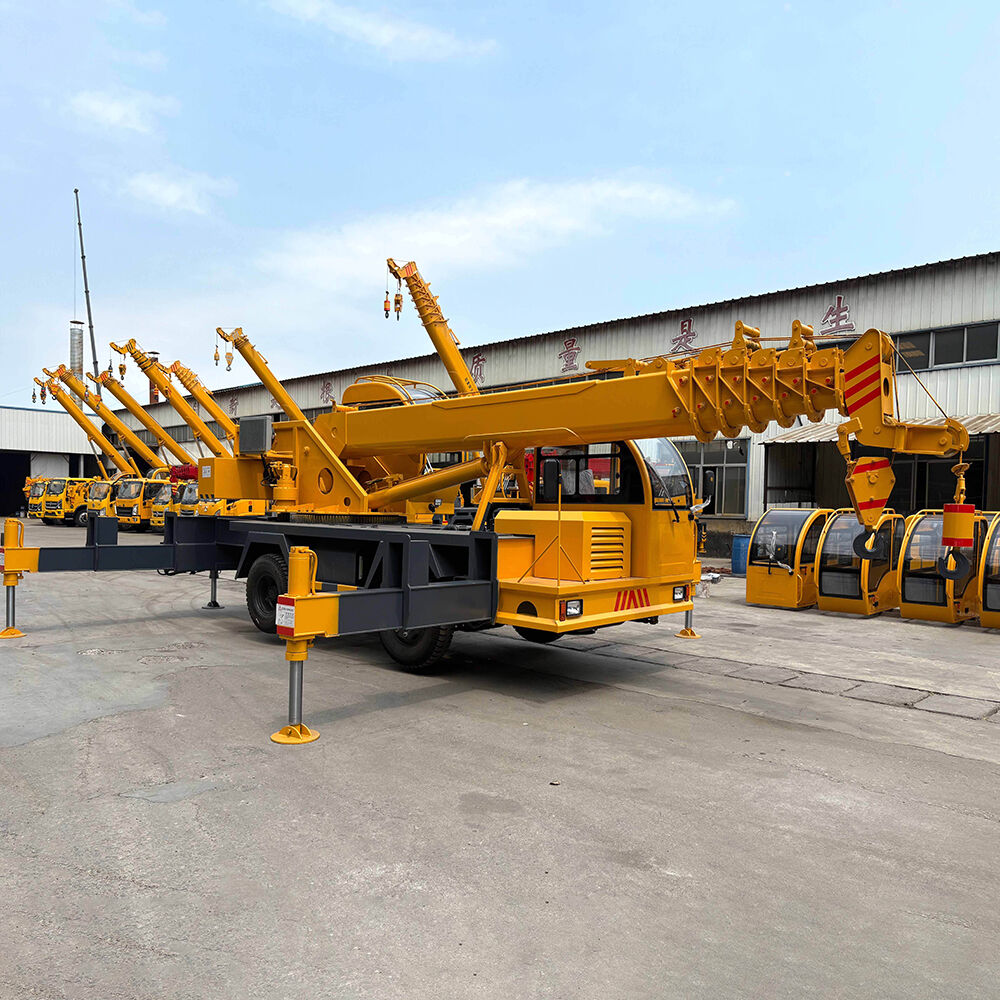

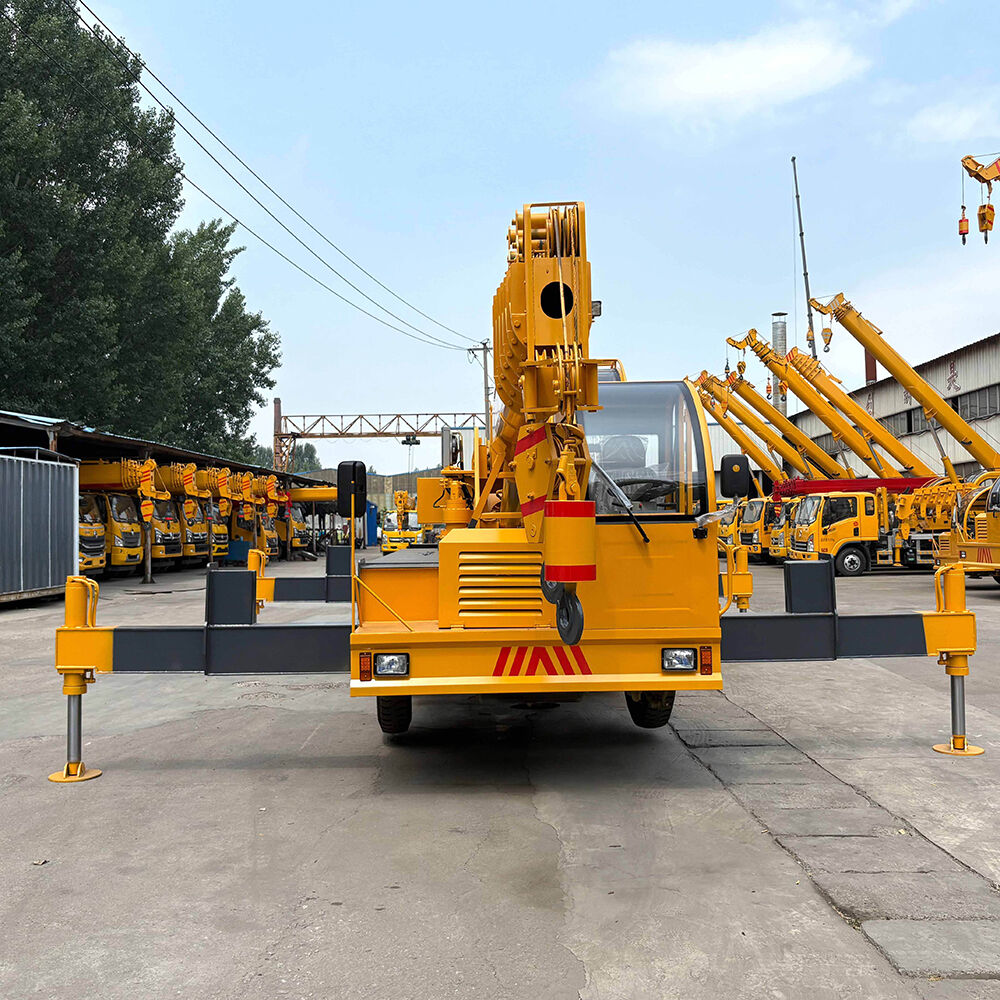

HC10T 10 Ton Self-made Crane
This self-made crane HC10T crane features a compact yet versatile design suited for DIY and small-scale lifting tasks. It offers strong load-bearing performance, flexible operation, and adjustable height and angle for various handling needs. Equipped with a 10T main winch, 6T auxiliary winch, 7-section U-shaped boom, 30m lifting height, and a stable 6-leg support system, it ensures efficient, reliable, and labor-saving operation. Powered by a 4105 engine with air brake, power steering, and rear-mounted transmission, it delivers dependable performance across multiple work scenarios.
- Overview
- Recommended Products
Brand Model: HC10T |
Main Hook Winch: 10 tons |
Chassis Model: Self-made Chassis |
Auxiliary Hook Winch: 6 tons |
Maximum Lifting Capacity: 10 T |
Rotating Bearing: 1.3m external gear |
Boom: 5m 7-section U-shaped boom |
Hydraulic System: 50# |
Maximum Lifting Height: 30m |
Central Rotation: Small 3-way |
Leg Span (Transverse * Longitudinal): 5.7m / 4.3m |
Main Boom Dimensions / Extend: 350*150mm / 1.2m |
External Dimensions (L* W * H): 7.95m * 2.1m * 2.89m |
Main Boom Size: 500*300mm |
Lifting Speed (Auxiliary / Main Hook): 120m/min / 90m/min |
Rear Shift Jack: Available |
Rotation Speed: 0-3rpm |
Steering Type: Power Assist |
Engine Model: 4105 Engine |
Braking Type: Air Brake |
Motor Power: 11KW |
Transmission: 140 Rear-mounted Transmission |
Tire Model: 815-16 Tires |

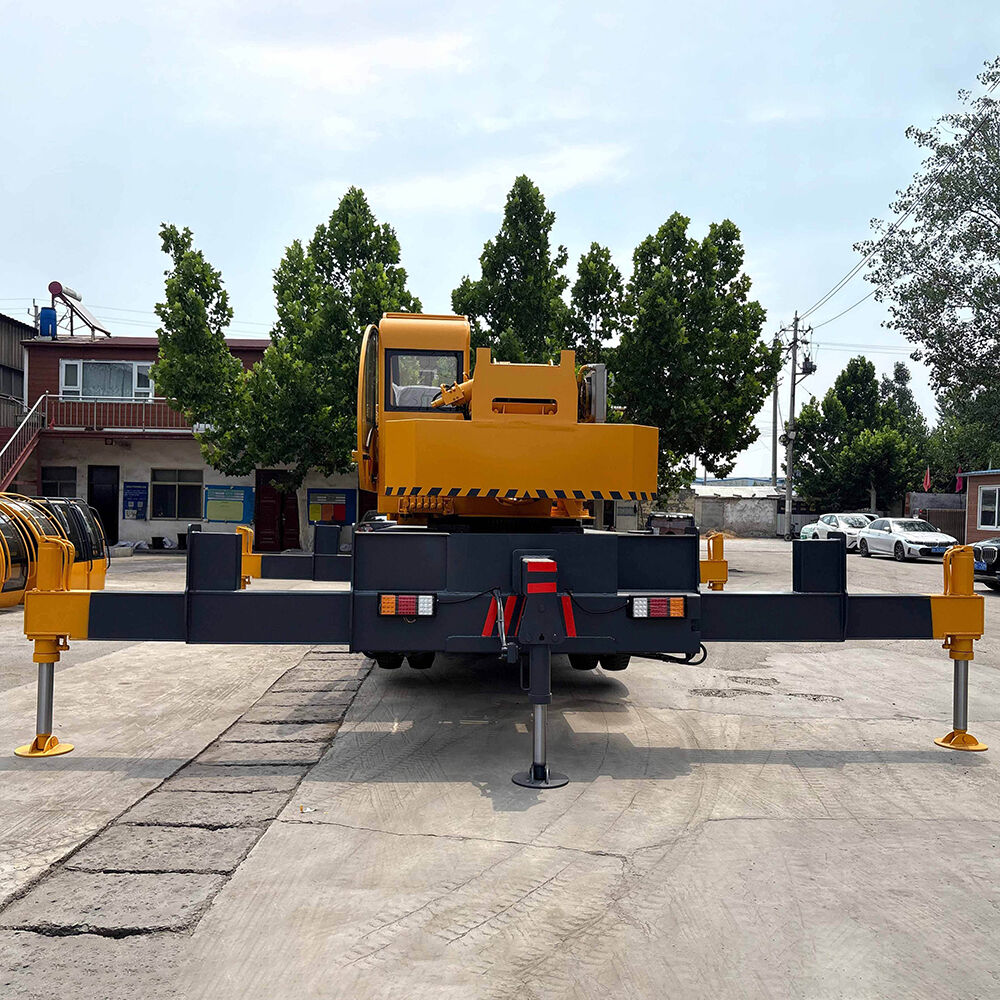

Legs: 6 legs (4 double-section + front & rear) |
Axle Model: 1080 Axle |
Leg Extension Size: 1.8m |
Vehicle Weight: 11 tons |

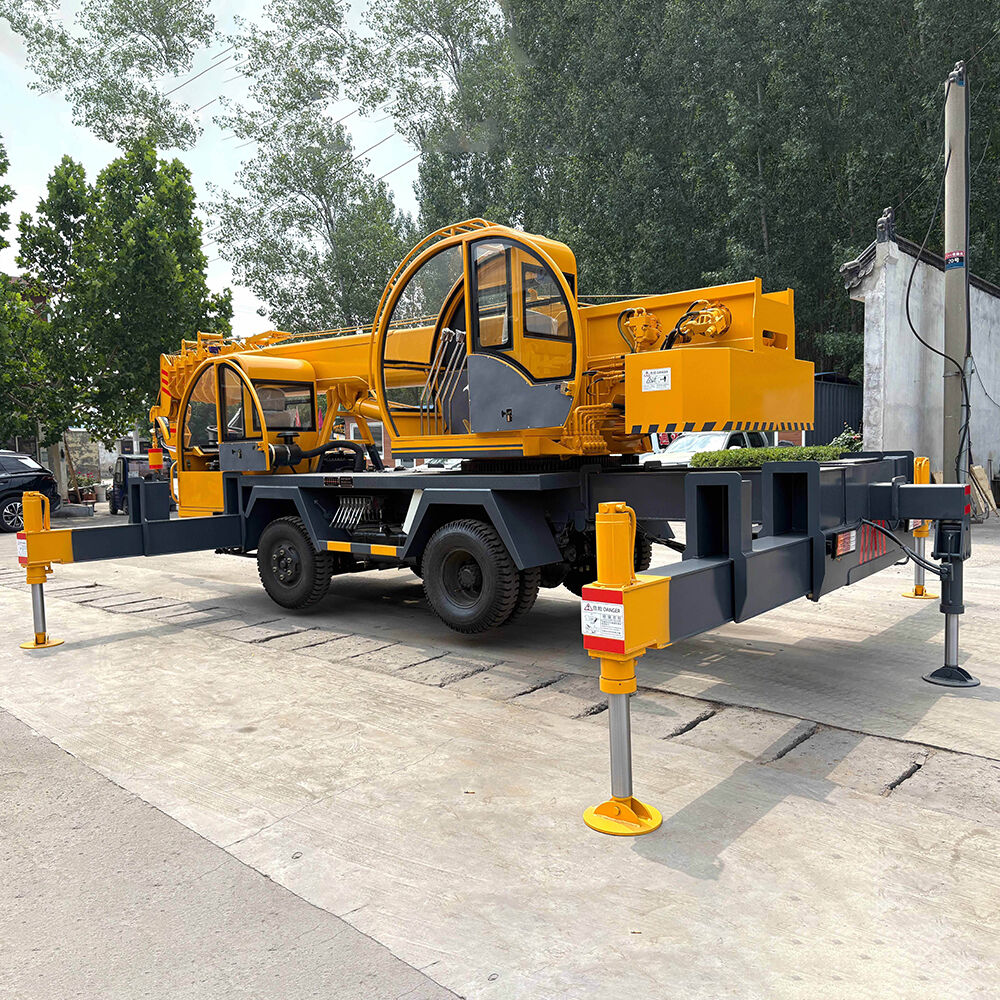

Cab: Front and Rear |
Full Boom Lifting Capacity: 1T |
Optional Equipment: Camera, Double Pump |
