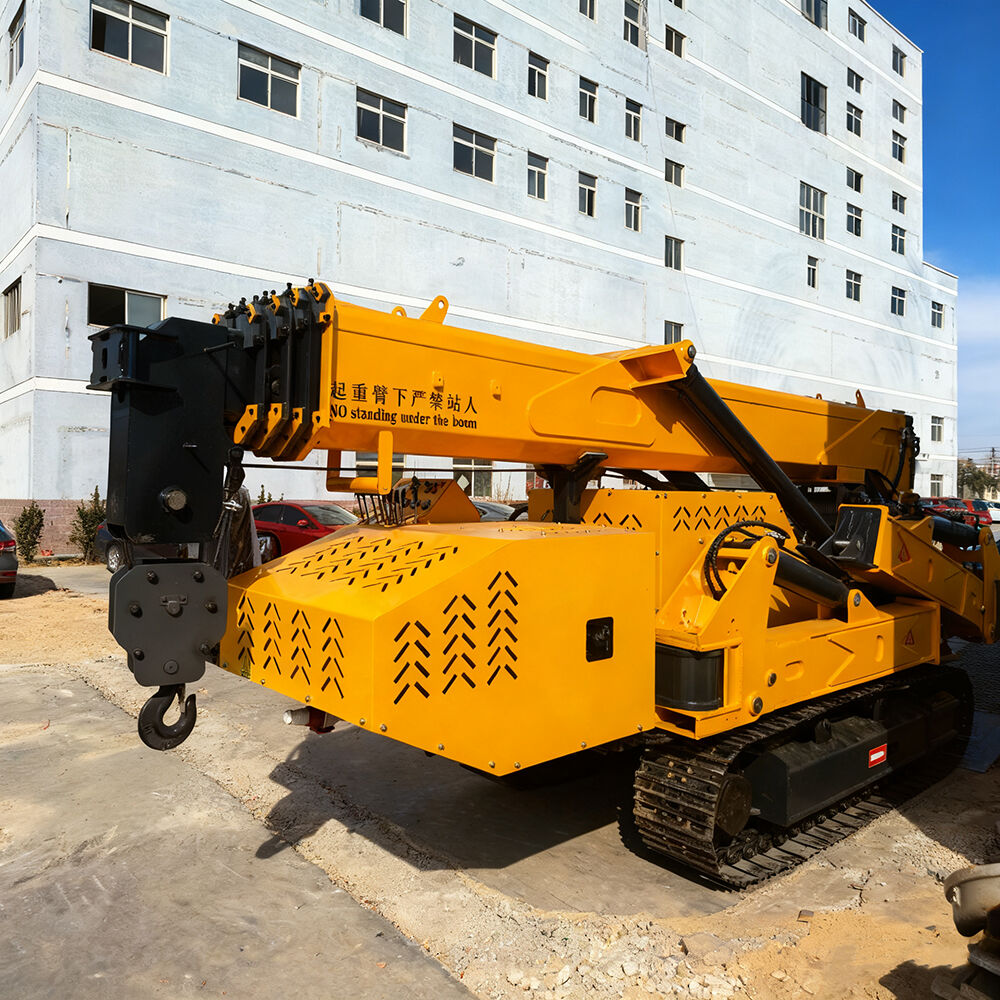

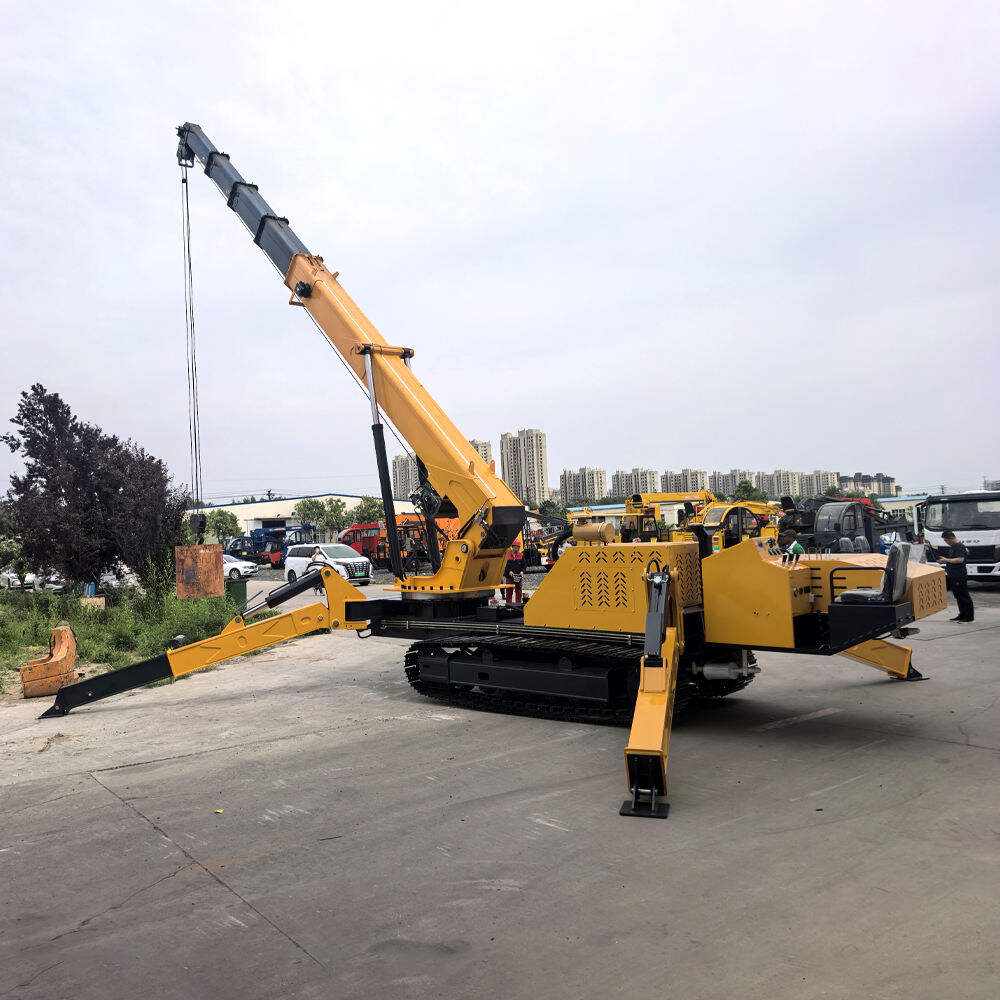

10Ton Crawler Spider Crane
The 10-ton crawler spider crane features a compact, agile design ideal for narrow indoor areas and confined outdoor sites. Its full-automatic 5-section hexagonal boom, 19.6m lifting height, and 360° continuous rotation enable precise multi-angle lifting for decoration, equipment installation, and small construction projects. Powered by a 15kW electric motor or turbocharged diesel engine, and supported by advanced hydraulic outriggers, it delivers stable, efficient, and easy operation for versatile lifting needs.
- Overview
- Recommended Products
Model |
YTW10.0 |
Specification |
10.00Ton * 2.3m |
Maximum Working Radius |
17.5m * 0.2Ton |
Maximum Ground Lifting Height |
19.6m |
Hook Speed |
12m/min (4 ropes) |
Rope |
φ12mm * 100m |
Boom Type |
Hexagonal Full-automatic 5-section |
Boom Length |
5.55m - 19m (5.5m, 5 sections) |
Telescopic Length/Time |
19m / 54sec (41sec at increased speed) |
Boom Angle/Time |
0° - 80° / 24.5sec (17.0sec at increased speed) |
Slew Angle/Time |
0° - 360° Continuous / 2.1rpm |
Outrigger Active Form |
Manual rotation, hydraulic extension, hydraulic grounding (Manual adjustment for the 1st section; Automatic for the 2nd and 3rd |
Maximum Extended Dimensions |
Approximately (Left-Right) 8500mm * (Front) 8400mm * (Rear) 6300mm |
Walking Way |
Hydraulic motor drive |
Walking Speed |
Forward/Backward 0 - 2.5KM/h |
Grade Ability |
20° |
Ground Length * Width (Crane) |
(Steel 450mm * 135mm * 46 sections); Ground Contact Length 2600mm |
Ground Pressure |
49.0Kpa (0.50kgf/cm²) |
Electric Motor |
Three-phase AC Asynchronous Motor |
Working Voltage (Frequency) |
380V (50HZ) |
Power |
15KW |
Diesel Engine |
Yunnei 4102 / Weifang 4108 Turbocharged |
Emission Standard |
National Stage II |
Maximum Output |
81KW / 91KW |
Starting Method |
Electric starting |
Fuel |
Diesel Fuel |
System Voltage |
24V |
Length * Width * Height |
Approximately 5750mm * 1780mm * 2350mm |
Vehicle Weight |
Approximately 11.5Ton |
