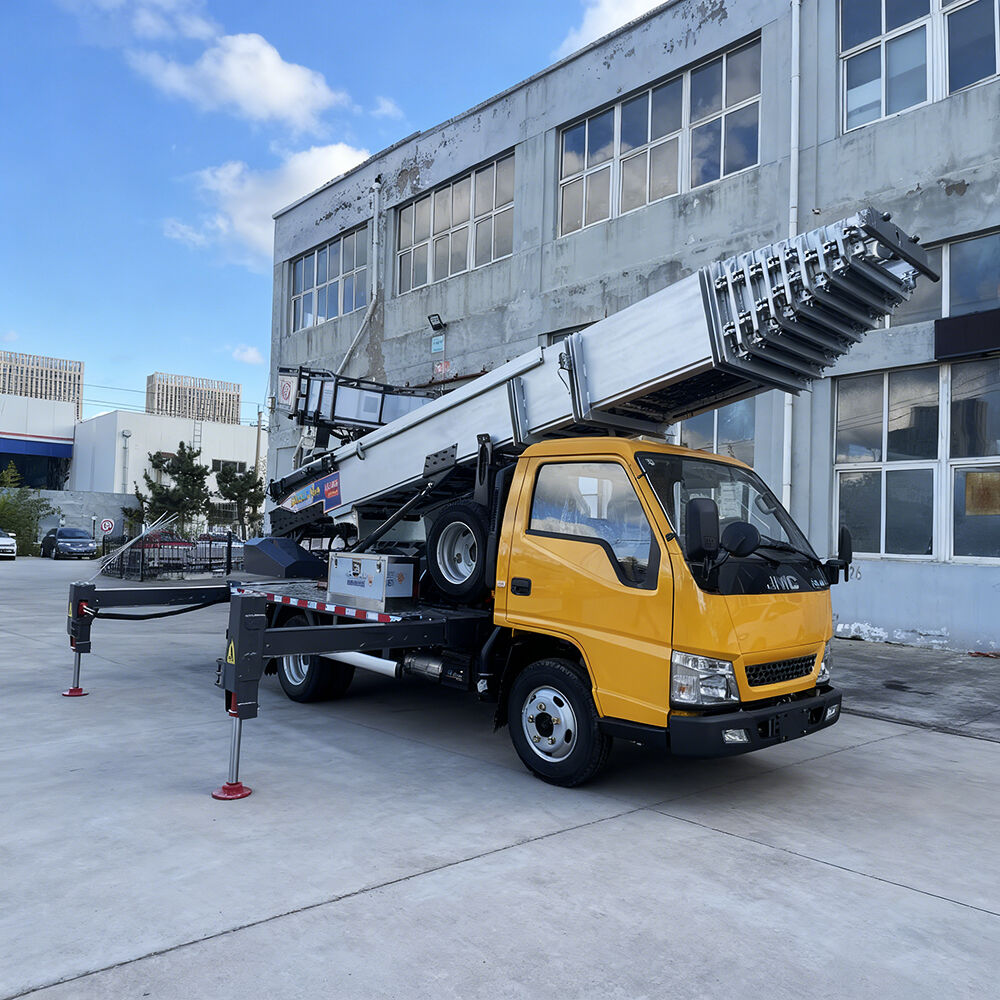

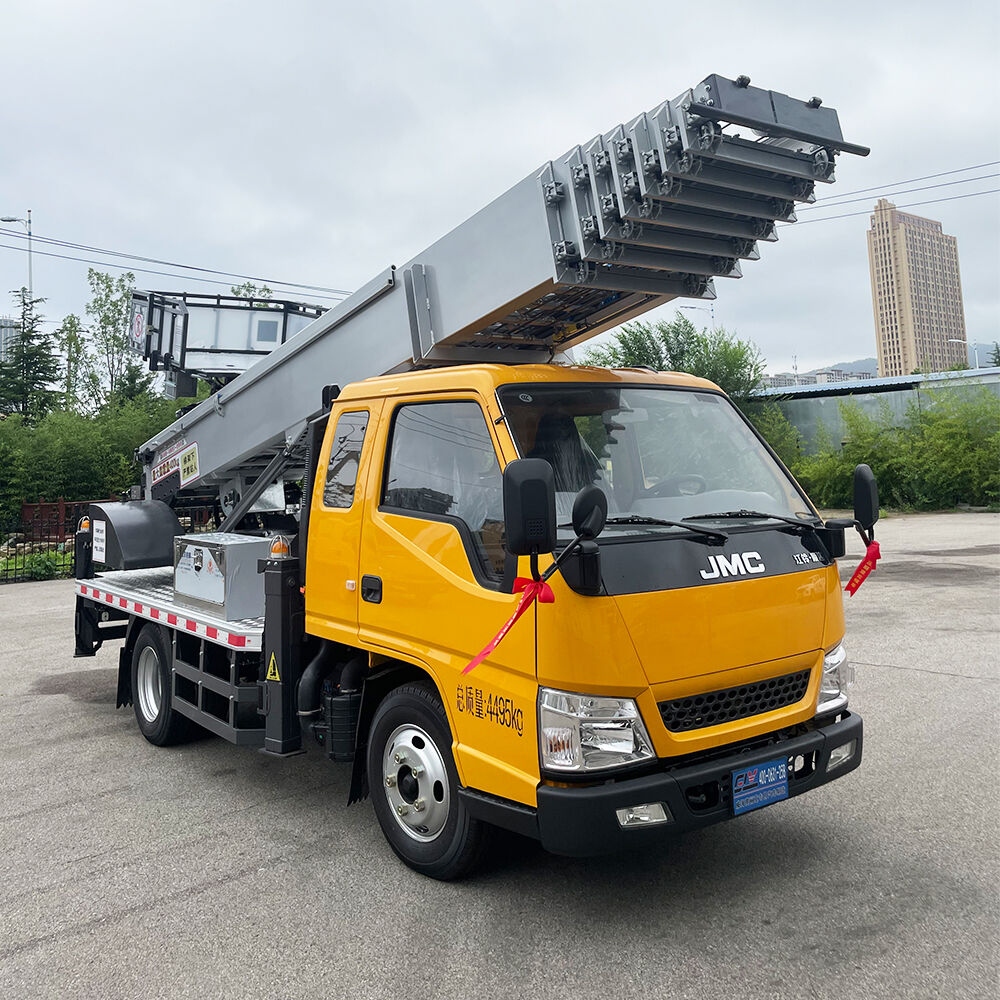

40m work height Aerial Ladder Truck
The aerial ladder truck is built for reliable high-altitude access and vertical material transfer. Using a JMC chassis, it reaches 40 meters and features a reinforced alloy ladder system that provides smooth extension, stable load handling, and dependable climbing performance. Its wide operating range, intelligent safety controls, and precise angle adjustment ensure consistent performance in building installation, high-rise moving, rooftop service, emergency rescue, and logistics tasks. Customizable height, ladder setup, and power options offer a safer and more efficient solution.
- Overview
- Recommended Products
Item |
Data |
Item |
Data |
Maximum Working Height |
40 m |
Chassis |
Jiangling Shunda |
Length |
5999 mm |
Engine |
D20TCIF12 |
Width |
2050 mm |
Displacement |
2000 ml |
Height |
2935 mm |
Power |
90 KW |
Gross Mass |
4495 kg |
Horsepower |
122 |
Curb Weight |
4365 kg |
Number of Passengers |
2 persons |
Cable Length of Carrier |
110 m |
Number of Axles |
2 pieces |
Cable Length of Ladder |
104 m |
Wheelbase |
2800 mm |
Working Platform |
1150×1000×450 mm |
Axle Load |
1675/2820 kg |
Rated Load of Working Platform |
400 kg |
Front Track |
1400 mm |
Outrigger Spread Span |
1400 mm |
Rear Track |
1425 mm |
Lateral Outrigger Span |
4550 mm |
Number of Leaf Springs |
1/1+1 pieces |
Longitudinal Outrigger Span |
3300 mm |
Number of Tires |
6 pieces |
Outrigger Retraction/Deployment Time |
5 s |
Tire Specification |
6.5R15LT |
Boom Type |
Nine-section Synchronous Telescoping |
Maximum Driving Speed |
100 km/h |
Slewing Device |
180 Degrees on Each Side |
Approach Angle |
10° |
Radiator |
Manual / Automatic |
Departure Angle |
10° |
