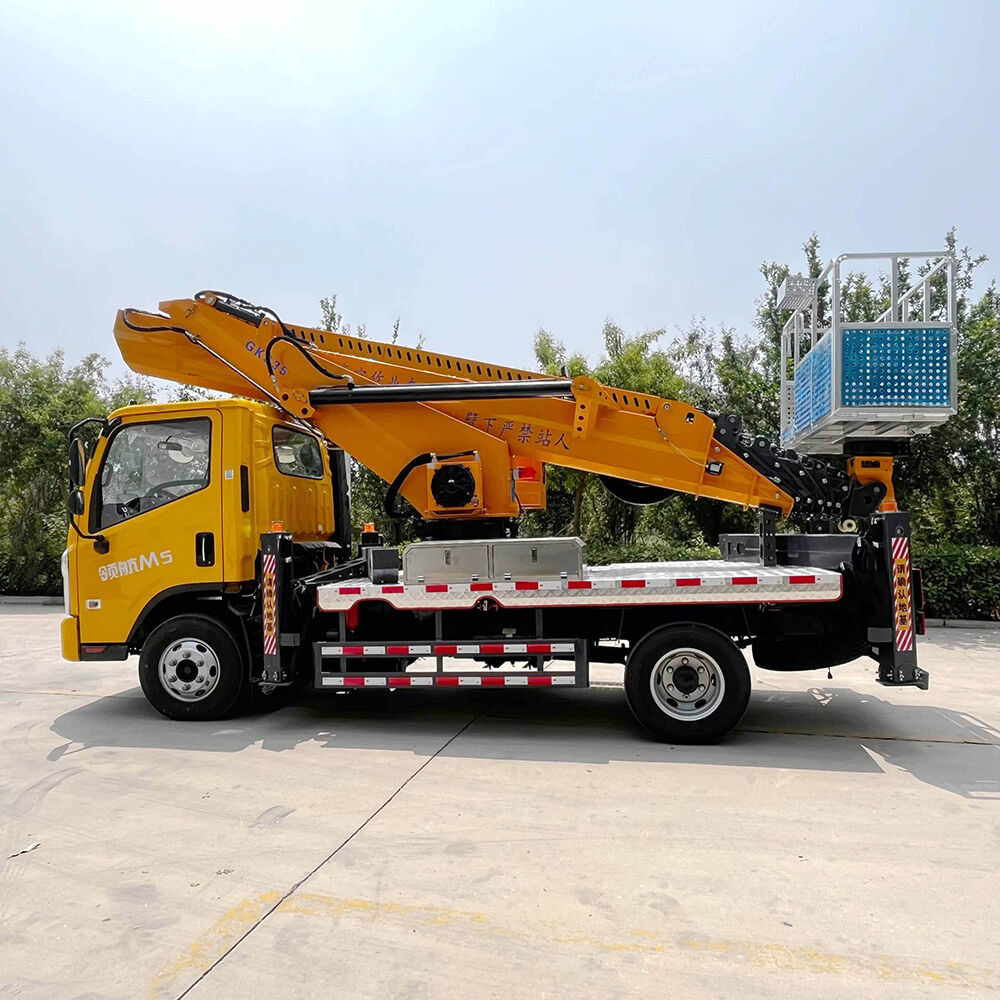

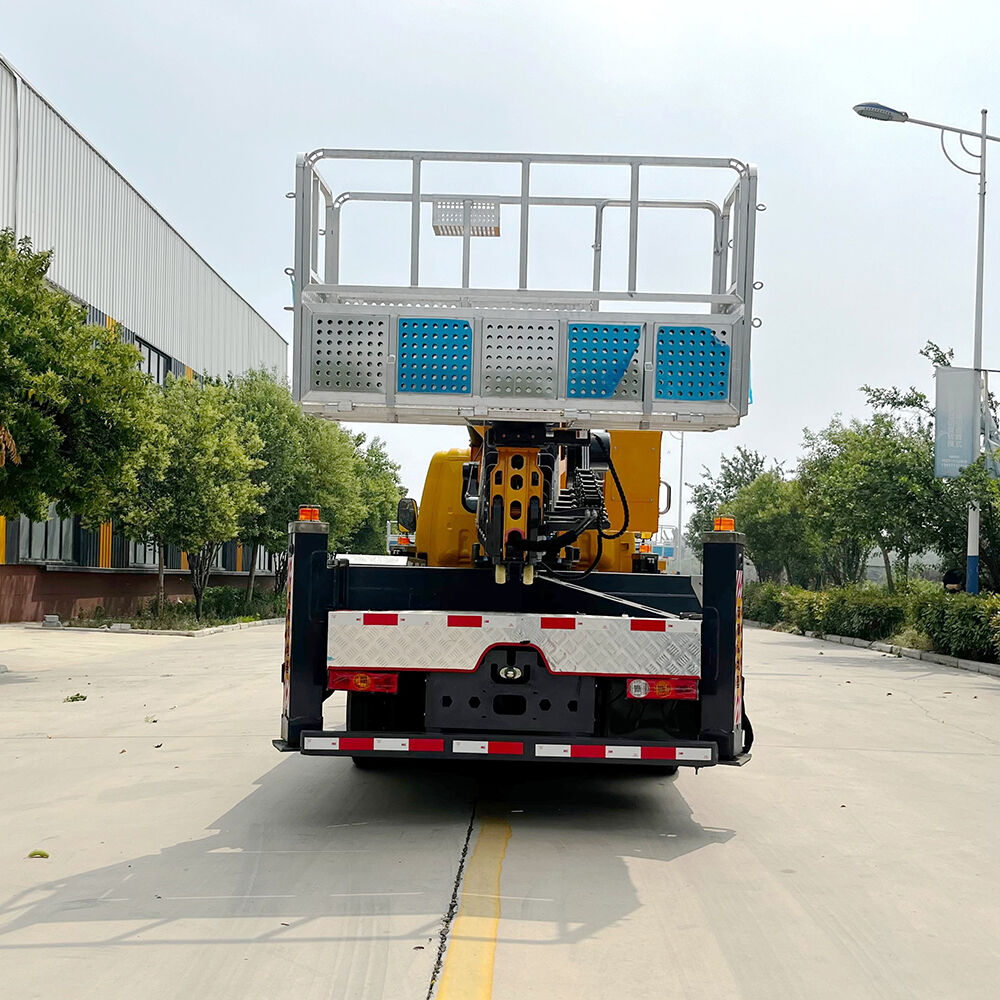

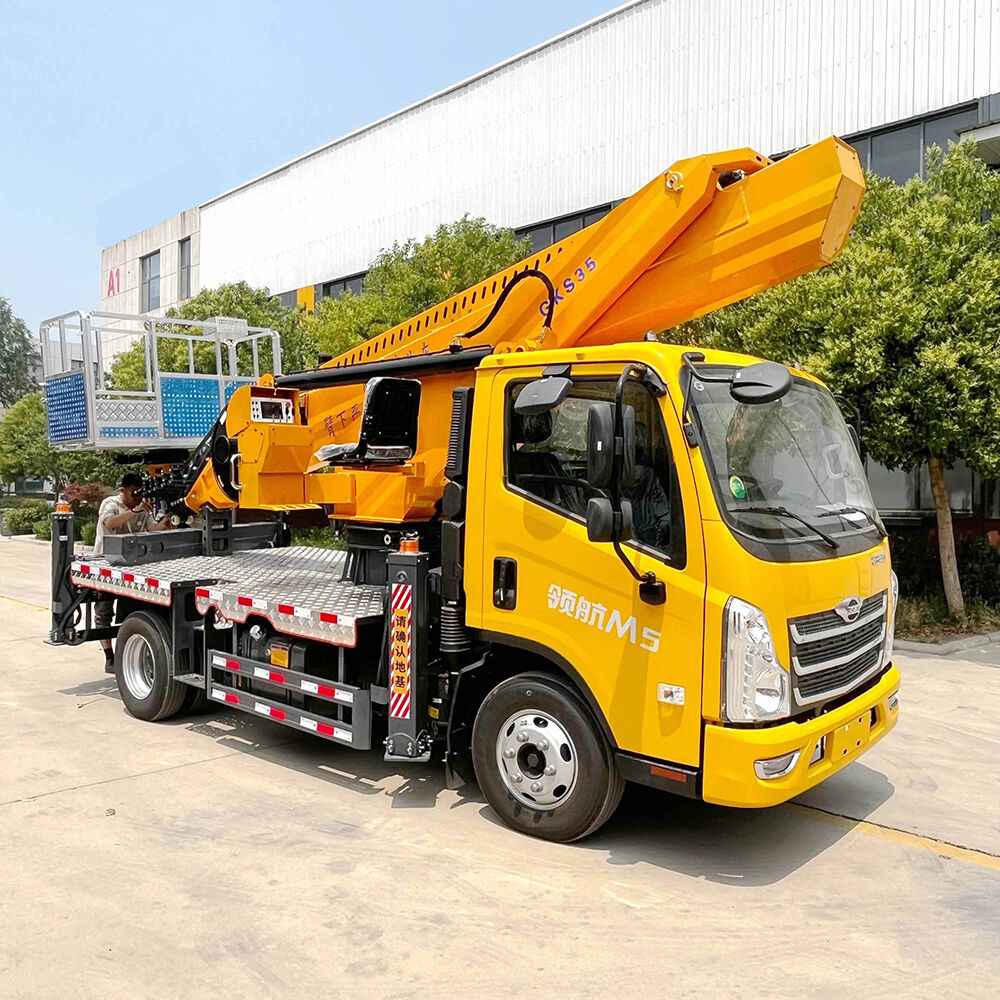

Foton chassis 32m working height Aerial work vehicle
This vehicle-mounted aerial work platform, built on a reliable Foton chassis, delivers a working height of up to 32 meters. Its telescopic boom offers smooth extension, stable lifting, and precise positioning for tasks at elevated locations. Designed for safety and efficiency, it features intelligent control, strong load capacity, and flexible mobility. Ideal for building maintenance, power-line repair, signage installation, and urban tree trimming, it provides a dependable solution for complex high-altitude operations.
- Overview
- Recommended Products
Model：FTGKS32 |
Chassis：FOTON Navigator M |
Total Length(MM):5998 |
Engine：Full diesel engine H20-120E60(122 HP) |
Overall width(MM):2050 |
Tyre：650mm Reinforced Steel-Belted Radial Tire |
Overall height (MM):2700 |
Braking System：Hydraulic Brake |
Act. Wt.(KG):5382 |
Boom Type：8-Stage Drum-Shaped Polygonal Section Boom & 7-Stage Synchronized Telescoping |
Max. Work Height(M):32 |
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation |
Work radius at Max. work height(M):3.7 |
Platform Max. Load Capacity(KG)：200KG |
Max. Work Radius(M)：16 |
Outrigger：Front and rear hydraulic V-outrigger(individually adjustable) |
Work height at Max. work radius(M):23 |
Control operation：Work platform and ground remote control operation |
Front overhang(MM):1075 |
Operating system：Electro-hydraulic proportional control system & Realize infinite speed regulation |
Rear overhang(MM)：2120 |
Leveling system：Hydraulic Auto-Leveling System |
Wheelbase(MM)：2800 |
Upper/Lower Interlock System：Safety Interlock System for Boarding and Alighting to Prevent Accidents. |
Transverse Span(MM)：6200 |
Level Detection Function：Real-Time Vehicle Levelness Monitoring. |
Longitudinal Span(MM)：5700 |
E-Stop：Real-Time Vehicle Levelness Monitoring. |
