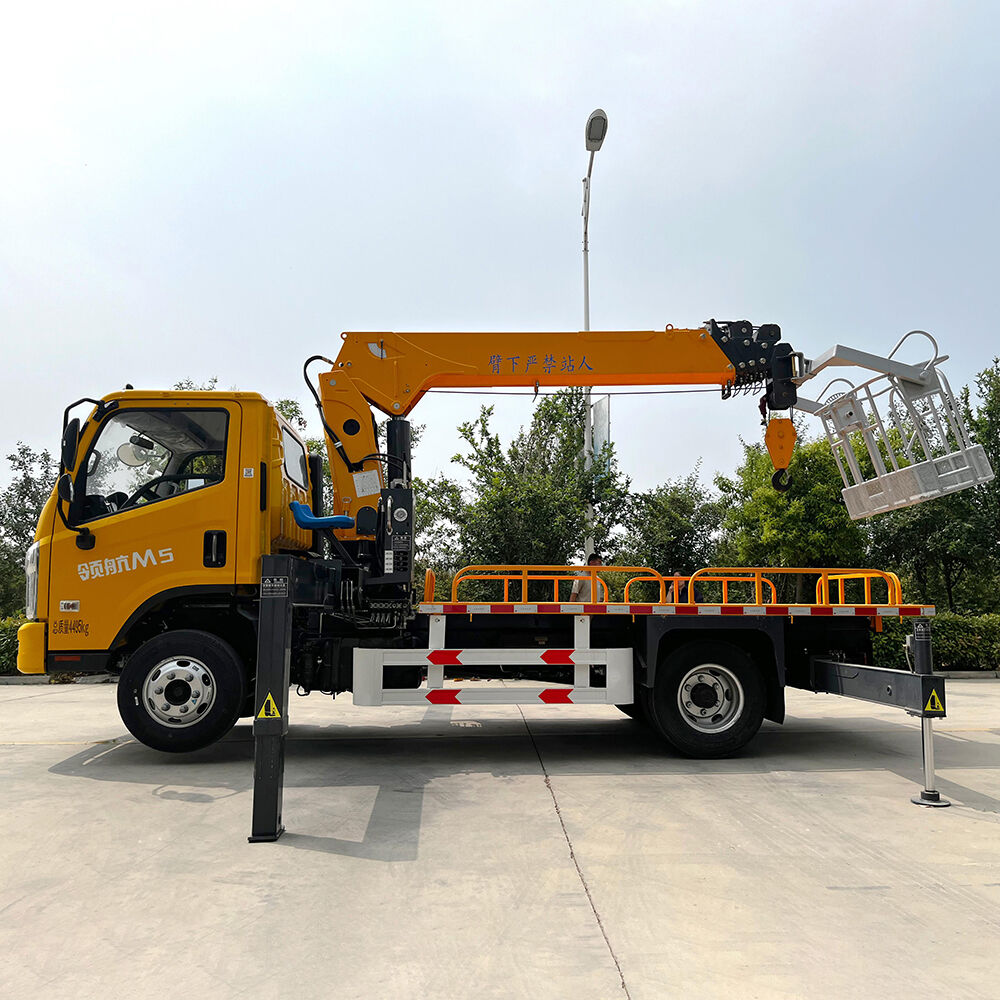

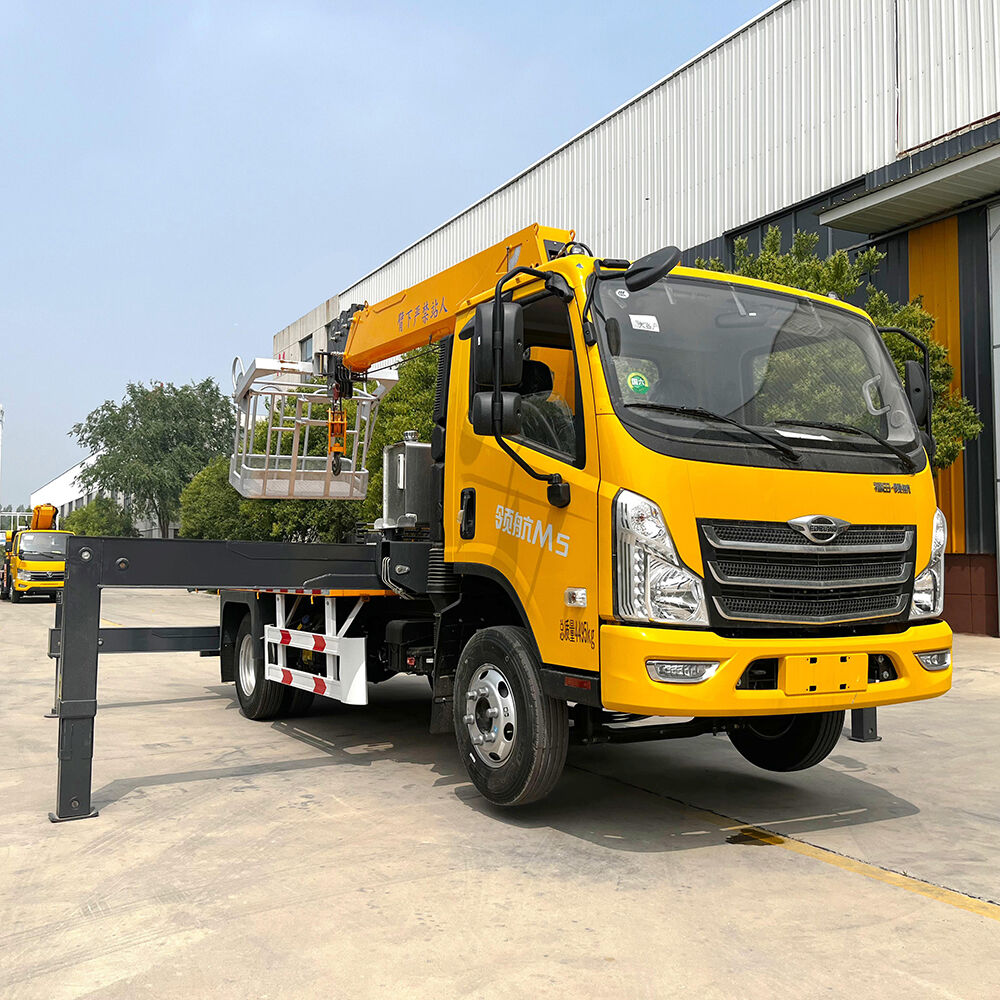

FTSCD-6.3T truck-mounted aerial crane
The truck-mounted aerial crane is a multifunctional machine that combines transport and lifting in one unit. Its vehicle-mounted design offers strong mobility, allowing quick transfer between construction sites. The boom extends and rotates freely, handling a wide range of lifting tasks such as cargo loading, equipment hoisting, and municipal emergency work. Easy to operate and equipped with safety protection systems, it delivers reliable, efficient, and economical support for diverse engineering operations.
- Overview
- Recommended Products
Vehicle Parameters |
Overall Dimensions |
actual weight5998mm*2200mm*3080mm(L*W*H) |
Kerb Weight |
5000KG |
|
Chassis Parameters |
Operator's Cab |
Futian new model |
Horsepower |
Full diesel engine 160HP |
Tyre |
7.00R16*6 |
Wheelbase |
3360mm |
|
Transmission |
Wanliyang 8-Speed |
Rear Axle |
1066KG |
|
Frame Rail |
170 Double-Wall Frame Rail |
Fuel Tank |
90L |
|
Spring Brake Chamber(ABS)、Power Window System、Remote Central Locking System、OEM Electric Air Conditioning | ||||
|
Superstructure Parameters |
Boom |
Five-Section Return-Rope Boom & Four-Section Synchronized Telescoping & Wire Rope System |
||
Outrigger |
H-outrigger |
Transverse Span |
5200/4500mm |
|
Longitudinal Span |
3400mm |
|||
Maximum Lifting Moment |
150KN·M |
Boom Length |
3400~10000mm |
|
Luffing Range |
0~75° |
Max.Work Height |
15m |
|
Boom Rotation Angle |
360° Full Rotation Capability |
Max.Work Radius |
12m |
|
System Rated Flow |
40L/min |
Rated Working Pressure |
25MPa |
|
Recommended Power |
15KW |
Operating Temperature Range |
"-25°C~+40°C" |
|
Platform Dimensions |
3400mm*2200mm(L*W)，Sideboard Height 500mm |
|||
Safety Devices |
Upper/Lower Interlock System、Dual-Direction Hydraulic Counterbalance Valve |
|||
