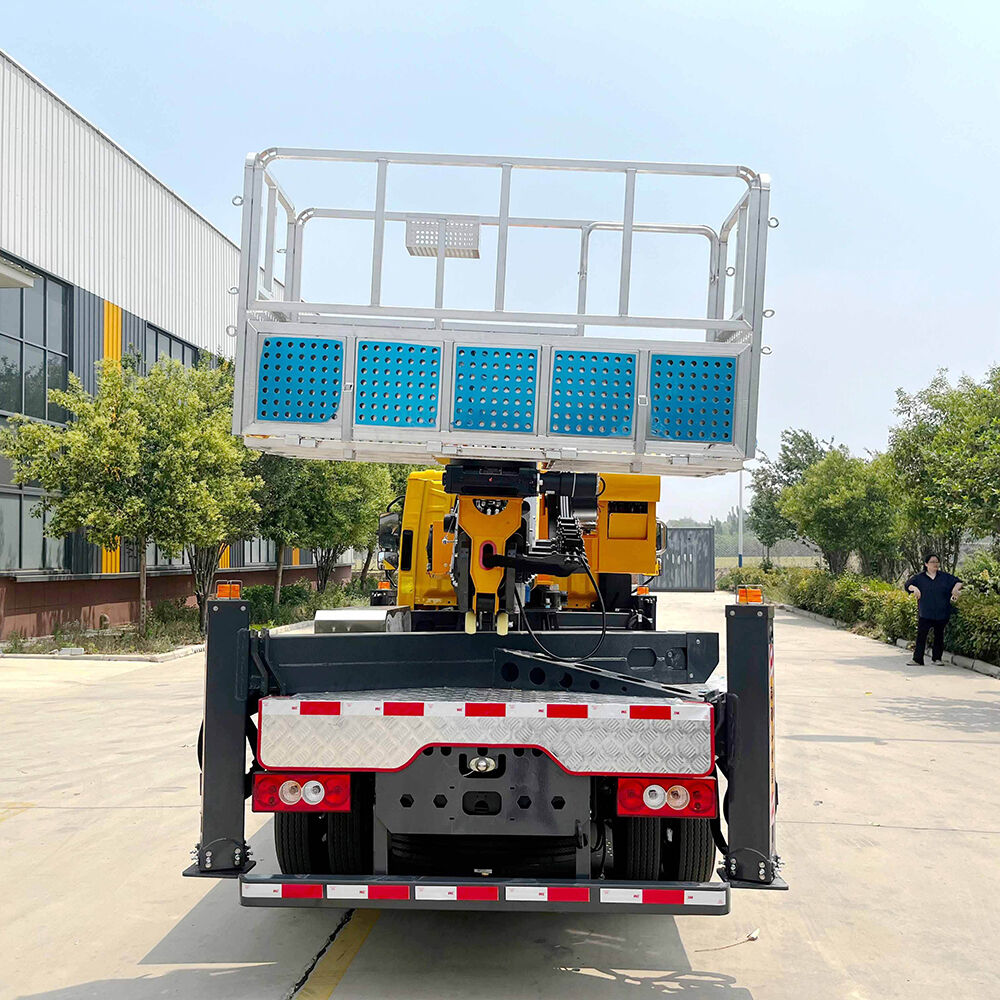

Foton chassis 35m working vehicle-mounted aerial work platform
The vehicle-mounted aerial work platform adopts a Foton chassis and delivers a working height of 35 meters with smooth, responsive boom movement. Its wide-angle operating range, reinforced platform, and intelligent safety monitoring system ensure dependable performance in demanding environments. With quick mobility and easy one-person operation, it is ideal for streetlight maintenance, exterior cleaning, facility inspection, and communication tower servicing.
- Overview
- Recommended Products
Model:FTGKS35 |
Chassis：FOTON Navigator M5 |
Total Length(MM):5998 |
Engine：Full diesel engine Q241106034Z (160HP) |
Overall width(MM):2220 |
Tyre：700mm All-Steel Radial Tire |
Overall height (MM):3200 |
Braking System：Air Brake System |
Act. Wt.(KG):6700 |
Boom Type：7-Segment Drum-Shaped 18-Faceted Arm & 7-Stage Synchronized Telescoping |
Max. work height(M):35 |
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation |
Working radius at maximum height(M):3.7 |
Platform Max. Load Capacity(KG)：200KG |
Max. work radius(M)：18 |
Outrigger：X-outrigger,Four double jointed outrigger,individually adjustable |
Working height at maximum radius(M):23 |
Control operation：Work platform and ground remote control operation |
Front overhang(MM):1600 |
Operating system：Electro-hydraulic proportional control system & Realize infinite speed regulation |
Rear overhang(MM)：1590 |
Leveling system：Hydraulic Auto-Leveling System |
Wheelbase(MM)：3360 |
Upper/Lower Interlock System：Safety Interlock System for Boarding and Alighting to Prevent Accidents. |
Transverse Span(MM)：6200 |
Level Detection Function：Real-Time Vehicle Levelness Monitoring. |
Longitudinal Span(MM)：5700 |
E-Stop：Real-Time Vehicle Levelness Monitoring. |
