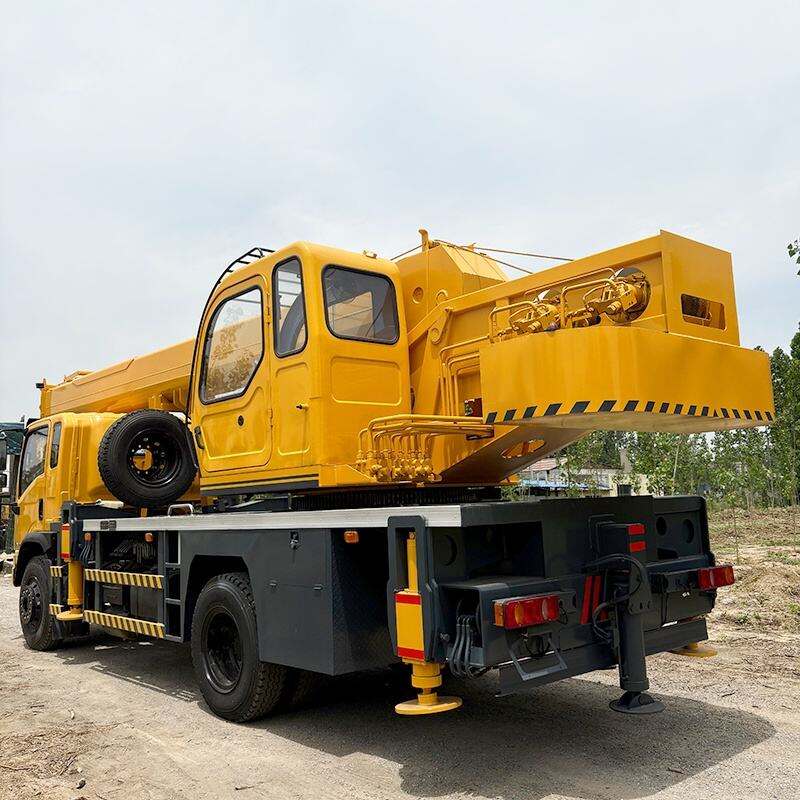

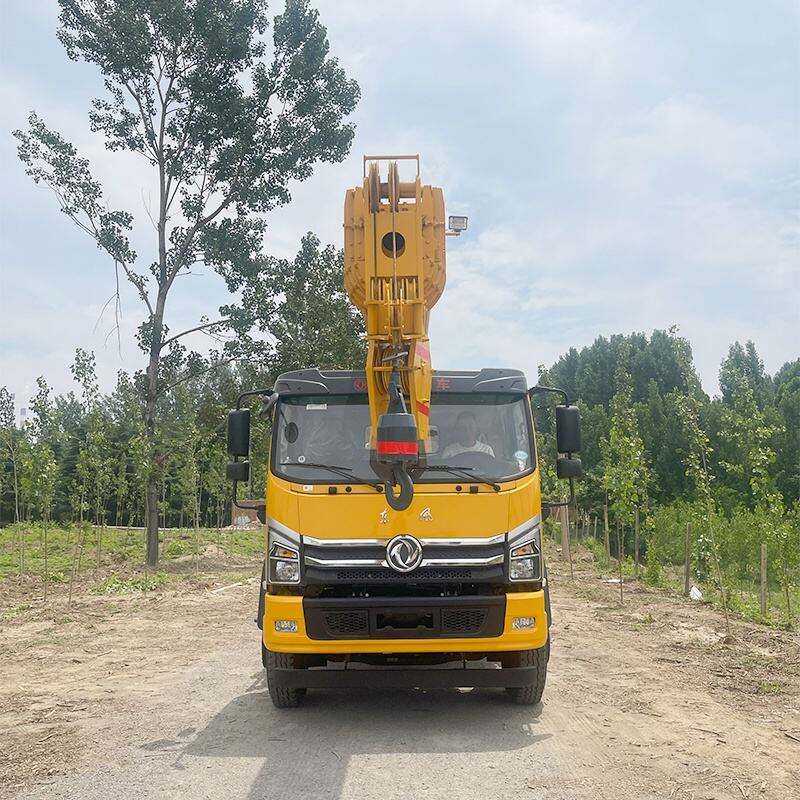

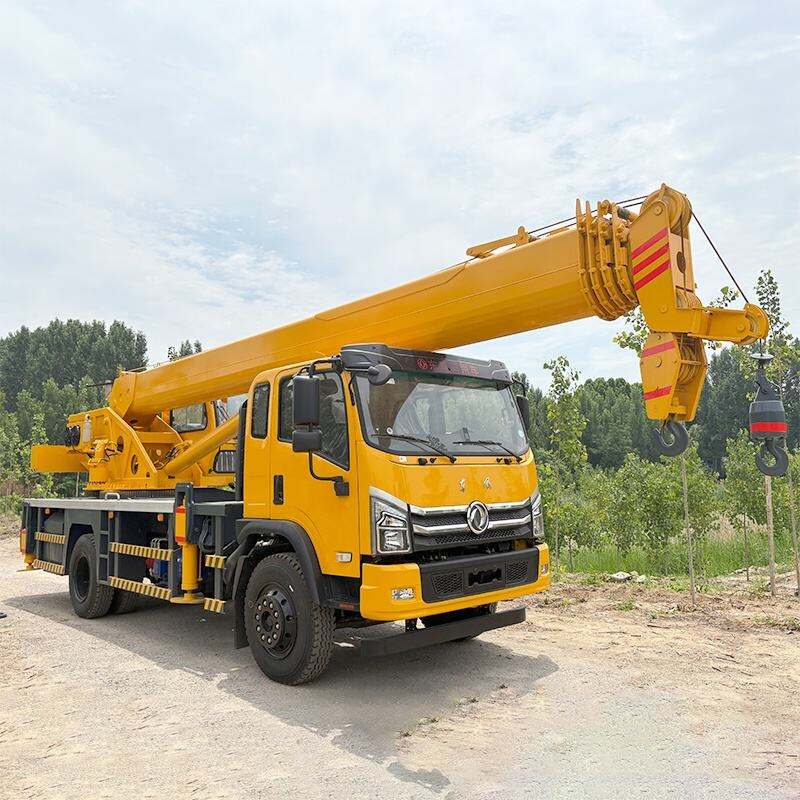

TCDFL-12T DONGFENG Chassis 12 Ton Truck Crane
The TCDFL-12T truck crane, built on the DFL-EQ1161GSZ6DJ chassis, offers a 31-meter lifting height with a 1.5-meter slewing bearing, 6.6 m × 5 m outriggers, and negative-angle working capability. It features an XCMG-style cab with a pneumatic seat, plus air brakes, power steering, and optional dual control. The crane provides a stable platform, smooth boom extension for precise lifting, intelligent controls, terrain-adaptive outriggers, and a durable hook for reliable construction and industrial operations.
- Overview
- Recommended Products
Brand & Model:TCDFL-12T |
Main/Aux Hook Winch:Bevel-axial winch |
Chassis Model:DFL-EQ1161GSZ6DJ |
Reducer Model:Vertical planetary reducer |
Max. Lifting Capacity:12T |
Slewing Ring:1.5m external gear |
U-shaped Boom:U-shaped, 7.5m, 5 sections with single panel inside sliding |
Engine Pump:50/40 pump |
Max. Lifting Height:31m |
Motor Power:15 kW |
Outrigger Span (Lateral·Longitudinal):6.6m *5m |
Central Rotary Joint:Large electric 4-way |
Overall Dimensions (mm):10230*2350*3300mm |
Boom Dimensions:580mm / 460mm |
Lifting Speed (Aux/Main Hook):120m/min / 110m/min |
Rear Jack:Yes |
Slewing Speed:0-3rpm |
Steering Type:Equipped |
Engine Model:YCY30165-60(Full Diesel ) |
Transmission:Fast brand |
Engine Power:121KW / 165 Horsepower |
Wheelbase:3950mm |
Tire Model:900R20 |
Actual/Certified Weight:15500kg / 15805kg |
Traveling Speed:95km/h |
Outrigger Dimensions:2100mm |
Chassis Air Conditioning:Yes |
Brake Type:Air brake |
Additional Configurations:Negative angle, XCMG-style small hook, imitation XCMG cab, pneumatic seats |
Negative angle, XCMG-style small hook, imitation XCMG cab, pneumatic seats |
Optional Configurations |
Upper cab AC, torque computer, camera, dual-operation controls |
