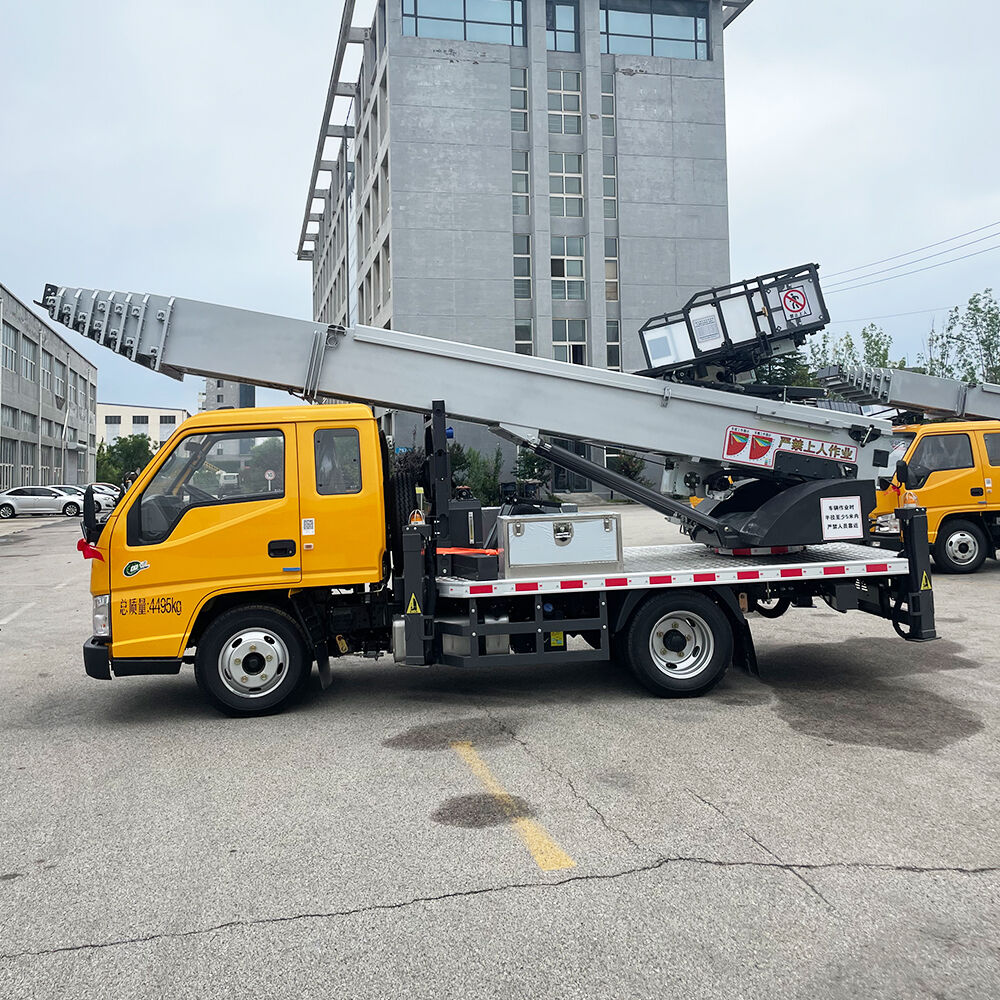

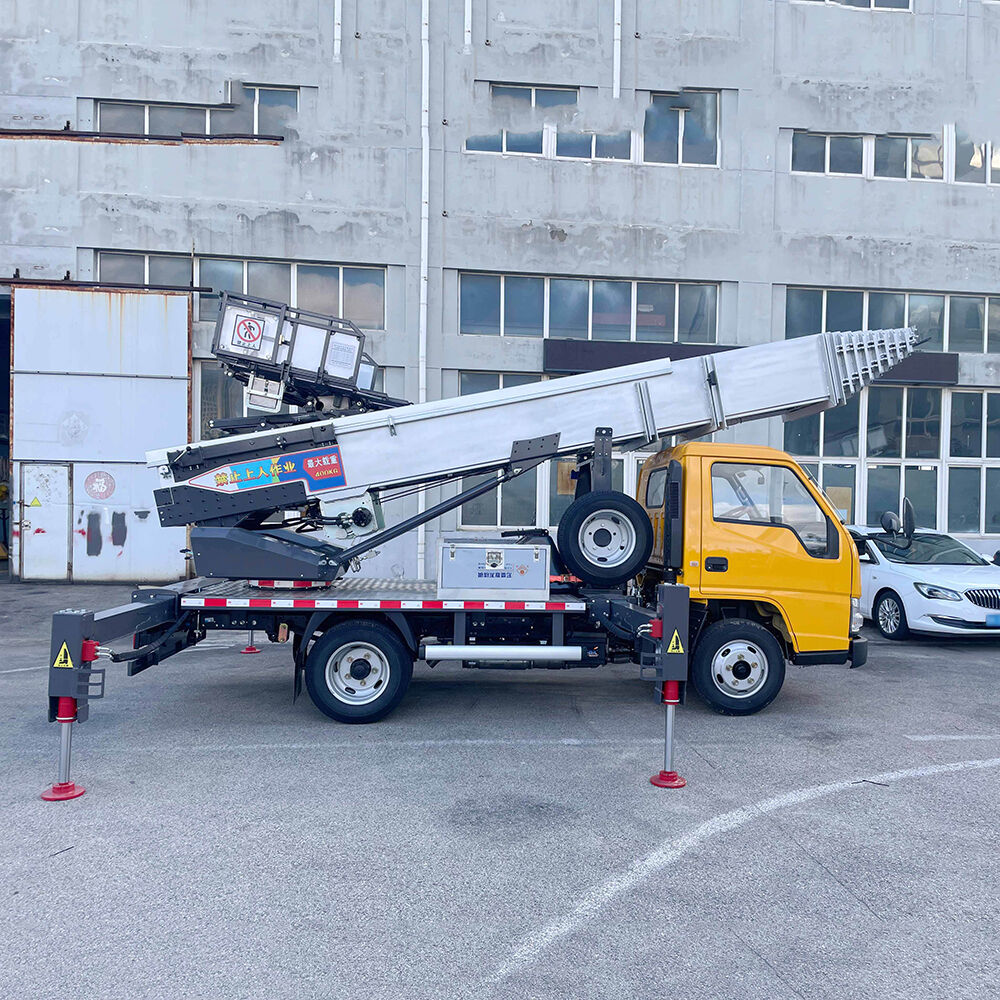

32m work height Aerial Ladder Truck
The aerial ladder truck is a multi-functional piece of equipment used for high-altitude operations and loading/unloading. Equipped with a JMC chassis, it operates at a height of 32 meters. Its strong alloy structure ensures stable, smooth lifting with high load capacity and wide reach. With advanced safety features and multi-angle extension, it performs well in construction, rescue, maintenance, and logistics. Easy to operate and highly efficient, it can be customized in height, platform, and power configuration to provide a safer, more labor-saving aerial work solution.
- Overview
- Recommended Products
Item |
Unit |
Data |
Total Length |
mm |
5995 |
Total Width |
mm |
1900 |
Total Height |
mm |
2950 |
Number of Passengers (including driver) |
person |
5 (Double Row) |
Gross Mass |
kg |
4495 |
Curb Weight |
kg |
4170 (Double Row) |
Rated Load of Working Platform |
kg |
400 |
Maximum Working Height |
m |
32 |
Outrigger Span |
mm |
1100 |
Outrigger Retraction/Deployment Time |
s |
20 |
Number of Axles |
piece |
2 |
Axle Load |
- |
1840/2600 |
Wheelbase |
mm |
3360 |
Front Track |
mm |
1385 |
Rear Track |
mm |
1425 |
Number of Leaf Springs |
piece |
7/4+5 |
Number of Tires |
piece |
6 |
Tire Specification |
- |
7.00R16LT 10PR |
Maximum Driving Speed |
km/h |
100 |
Approach Angle |
° |
28 |
Departure Angle |
° |
18 |
