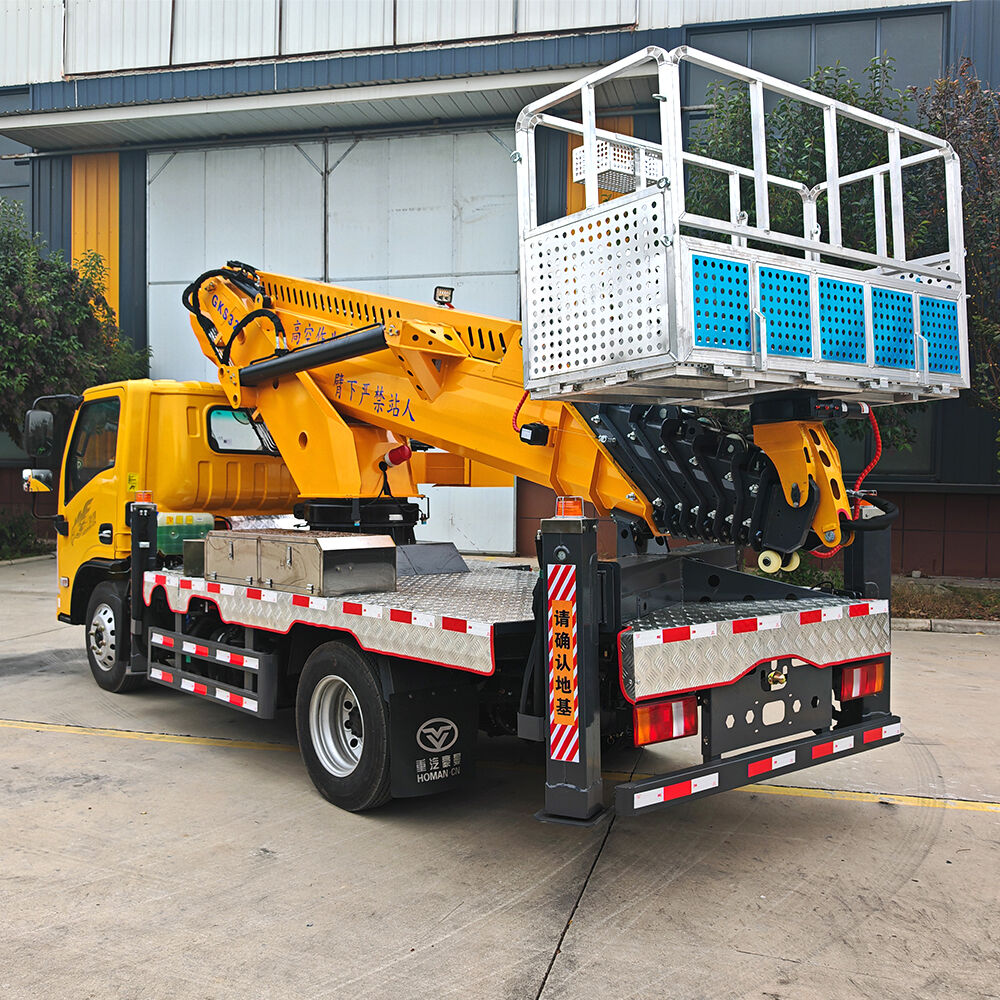

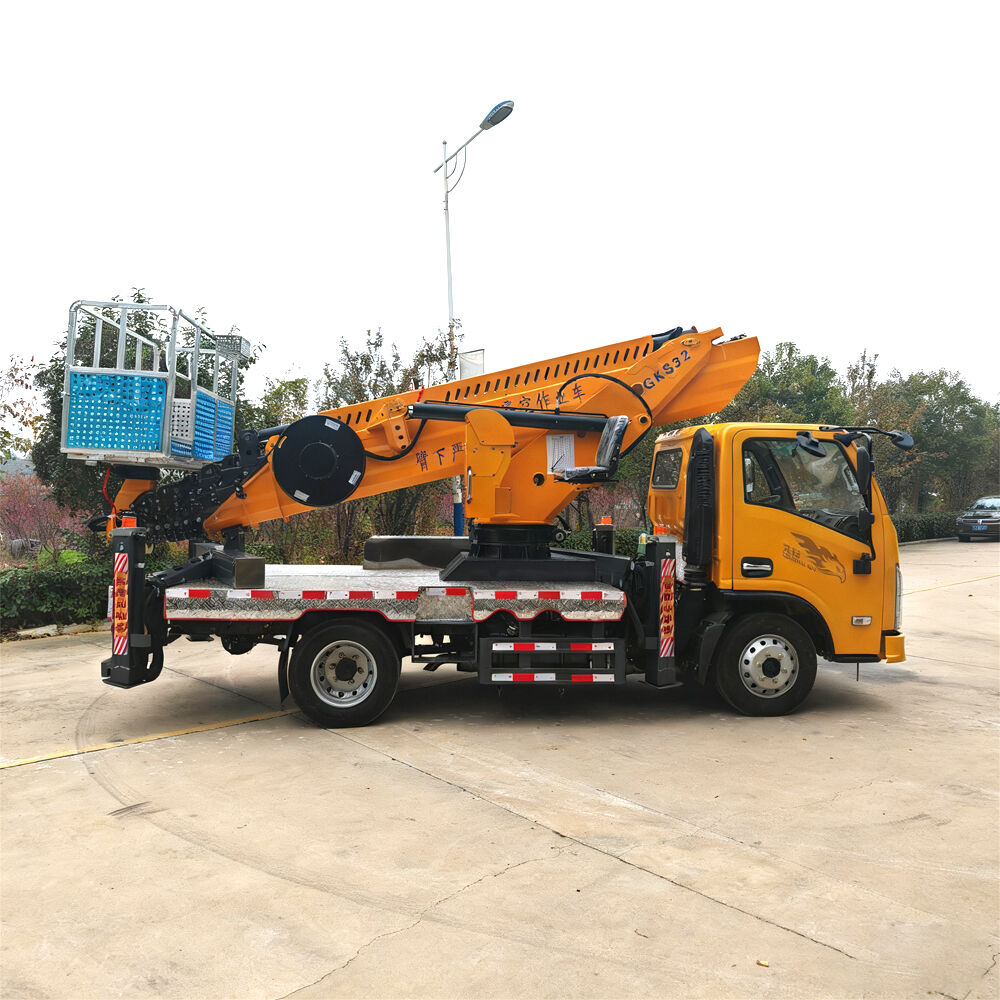

Sinotruk Homan Chassis 32m working height truck-mounted aerial work platform
This truck-mounted aerial work platform, built on a Sinotruk Homan chassis, features a flexible boom and a working height of up to 32 meters. Equipped with intelligent anti-tilt and overload alarm safety systems, it allows for stable lifting and precise steering with just one button. The comfortable work platform can accommodate multiple workers. It is widely used in construction, power maintenance, and landscaping, efficiently solving the challenges of working at heights.
Other chassis are also available, such as Isuzu, Foton, JMC, FAW Jiefang, and Dongfeng etc..
- Overview
- Recommended Products
Model：SinotrukGKS32 |
Chassis：SINOTRUK HOMAN |
Engine |
Yunnei YN25PLUS160C |
Engine displacement |
2.5 L / 137 HP |
Transmission |
WLY5G32 |
Wheelbase |
2950mm |
Dimensions |
5998mm*2050mm*2900mm |
Maximum working height |
32m |
Maximum working radius |
16m |
Platform size |
1800mm*700mm*1100mm (with small platform for carrying goods) |
Platform rated load |
200KG (lightweight aerospace aluminum basket) |
Brakes |
Air brakes |
Boom rotation |
360° |
