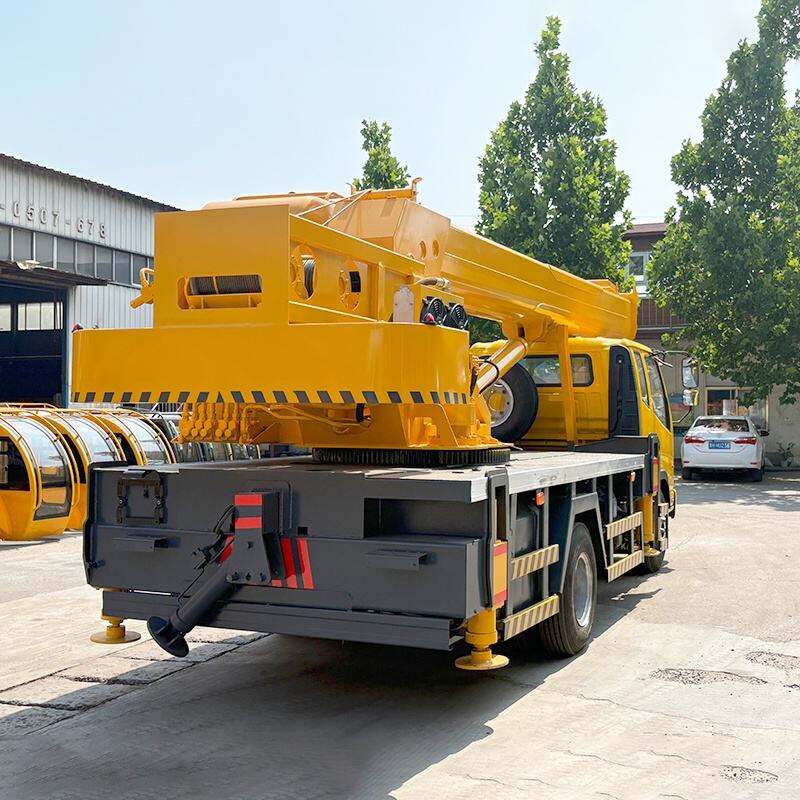

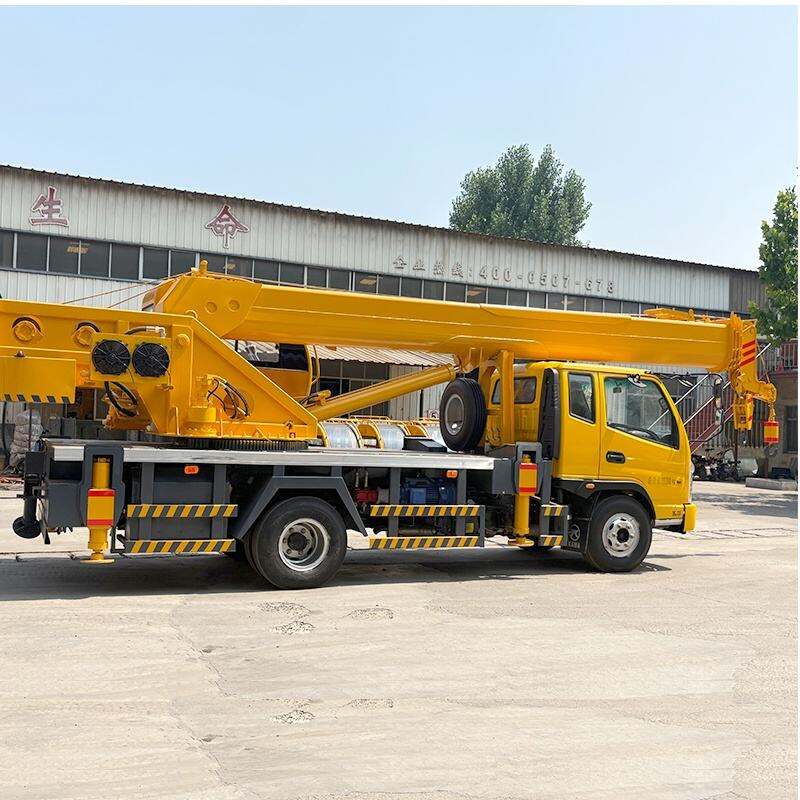

TCKAMA-10T KAMA Chassis 10 Ton Truck-mounted Crane
The TCKAMA-10T is a 10-ton truck-mounted crane built on the KMC1110A360P6 chassis, featuring a 5-section U-shaped boom with a 27-meter lifting height. Powered by a diesel engine and a slant-shaft winch, it delivers fast, precise lifting performance. The crane offers a spacious, stable operating platform, smooth boom extension and retraction, and an intelligent control system for easy operation. Its outrigger system ensures firm support on varied terrain, while comprehensive safety devices and a durable hook enhance reliability in demanding lifting tasks.
- Overview
- Recommended Products
Brand & Model:TCKAMA-10T |
Main/Aux Hook Winch:Bevel-axial winch |
Chassis Model:KMC1110A360P6 |
Reducer Model:Vertical planetary reducer |
Max. Lifting Capacity:10T |
Slewing Ring:1.3m external gear |
U-shaped Boom:5 sections, 6.5m |
Engine Pump:50/40 dual pumps |
Max. Lifting Height:27m |
Motor Power:15 kW |
Outrigger Span (Lateral·Longitudinal):6.4m * 4.15m |
Central Rotary Joint:Large five-hole |
Overall Dimensions (mm):9240×2210×3130(L×W×H) |
Boom Dimensions:540mm × 430mm |
Lifting Speed (Aux/Main Hook):120/110 m/min |
Rear Jack:Yes |
Slewing Speed:0-3 rpm |
Steering Type:Power-assisted |
Engine Model:Q28-130E60 (full diesel) |
Transmission:Wanli Yang |
Engine Power:96 kW / 132 HP |
Wheelbase:3600mm |
Tire Model:825R-16 |
Actual/Certified Weight:11500 kg / 11200 kg |
Traveling Speed:90 km/h |
Outrigger Dimensions:Double legs, 2100mm each |
Chassis Air Conditioning:Yes |
Brake Type:Air brake |
Special Features |
Negative angle operation, Electronic throttle |
Optional Configurations |
Upper cab AC, torque computer, camera, dual-operation controls |
