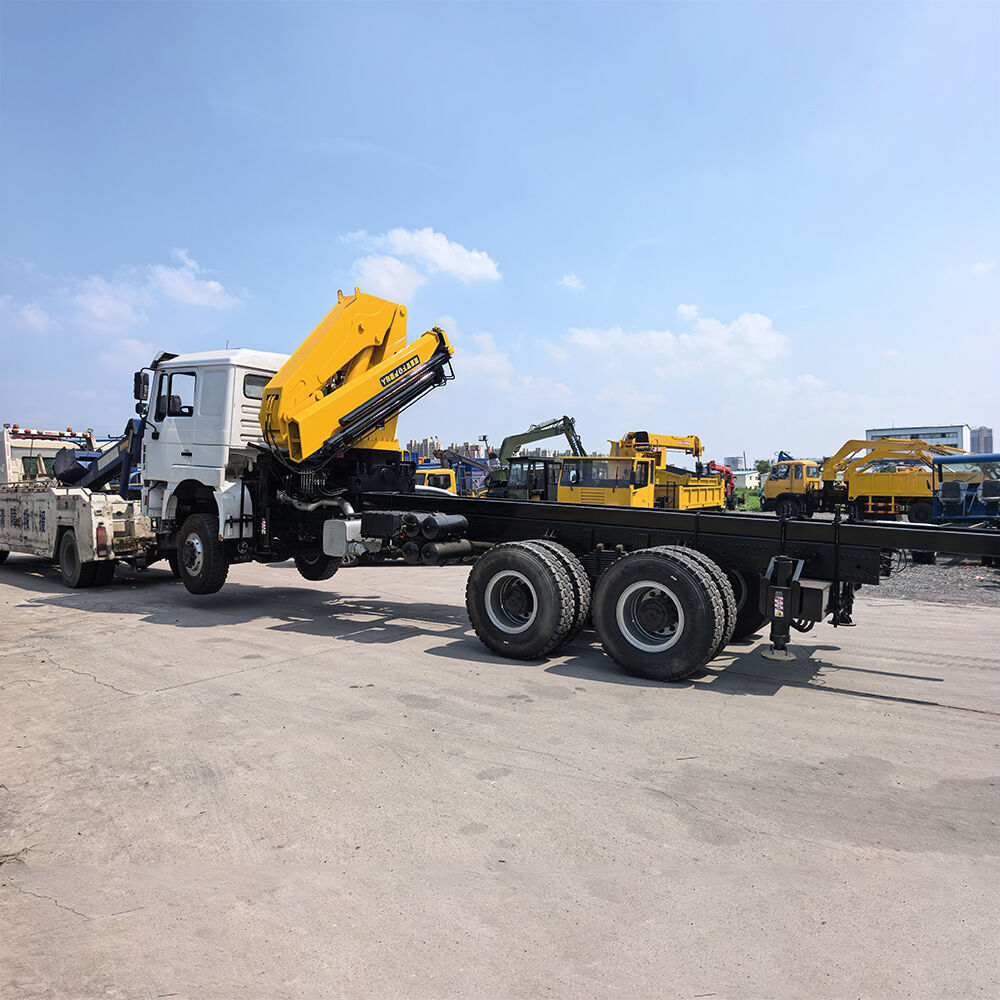

10 Ton Folding Arm Truck Mounted Knuckle Boom Crane
The 10-ton knuckle boom crane features a 20-ton·meter lifting moment, a 12.3 m radius, and a 15 m height, supporting high-capacity lifting tasks. With 360° slewing and multi-stage outriggers, it provides excellent ground stability for larger loads. Its robust hydraulic system ensures steady, accurate movement when handling machinery, steel materials, or building components. Ideal for heavy construction work, industrial equipment installation, infrastructure maintenance, and utility services.
- Overview
- Recommended Products
Item |
YTW10 |
Max.Lifting Moment(Ton.M) |
20 |
Max.Lifting Capacity(kg) |
10000 |
Max.Working Radius(m) |
12.3 |
Max.Working High(m) |
15 |
Slewing Angle |
360° full rotation |
Installation Space(mm) |
Lower operation 1150 |
|
Upper operation 1450 |
Outtrigger Span(mm) |
1940/4000 |
Crane Self Weight(kg) |
4200 |
