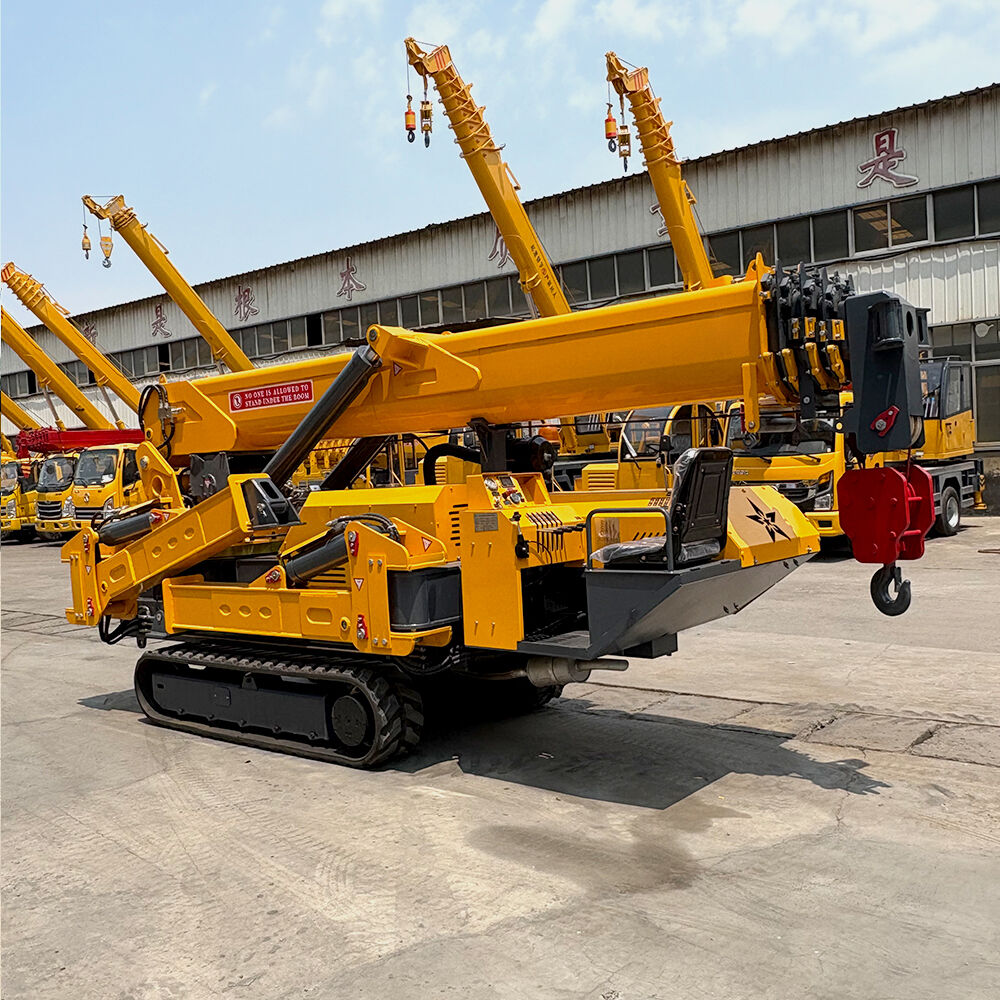

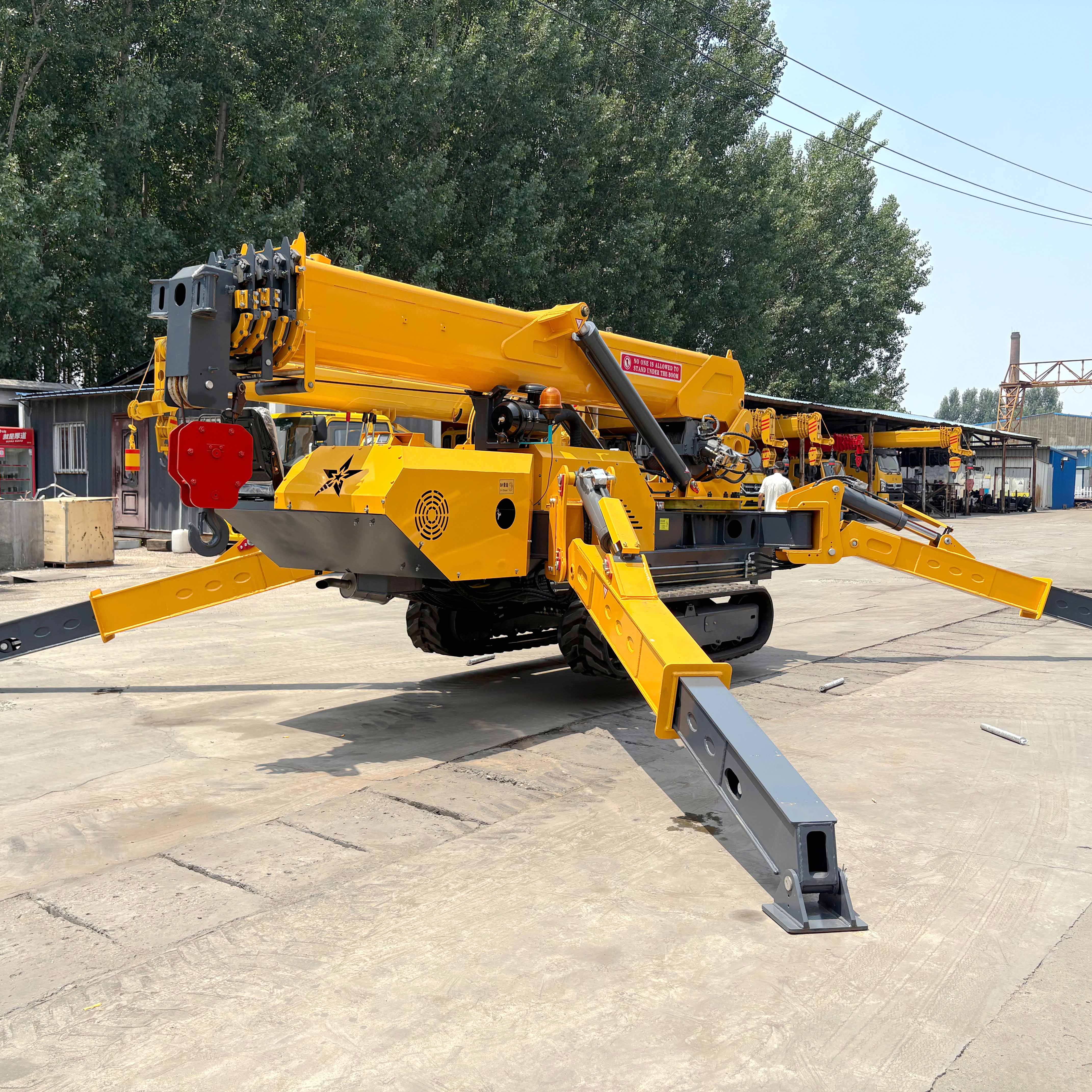

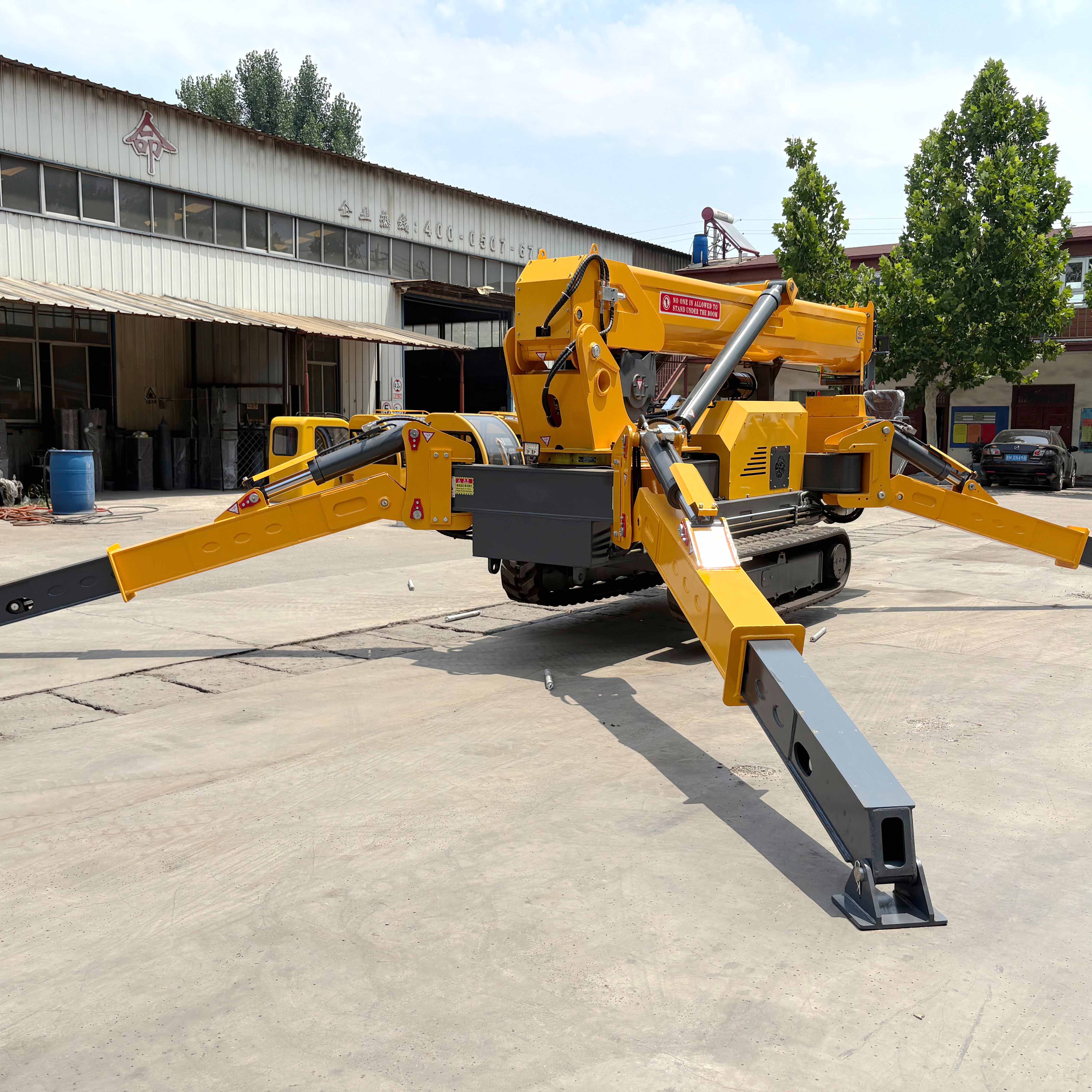

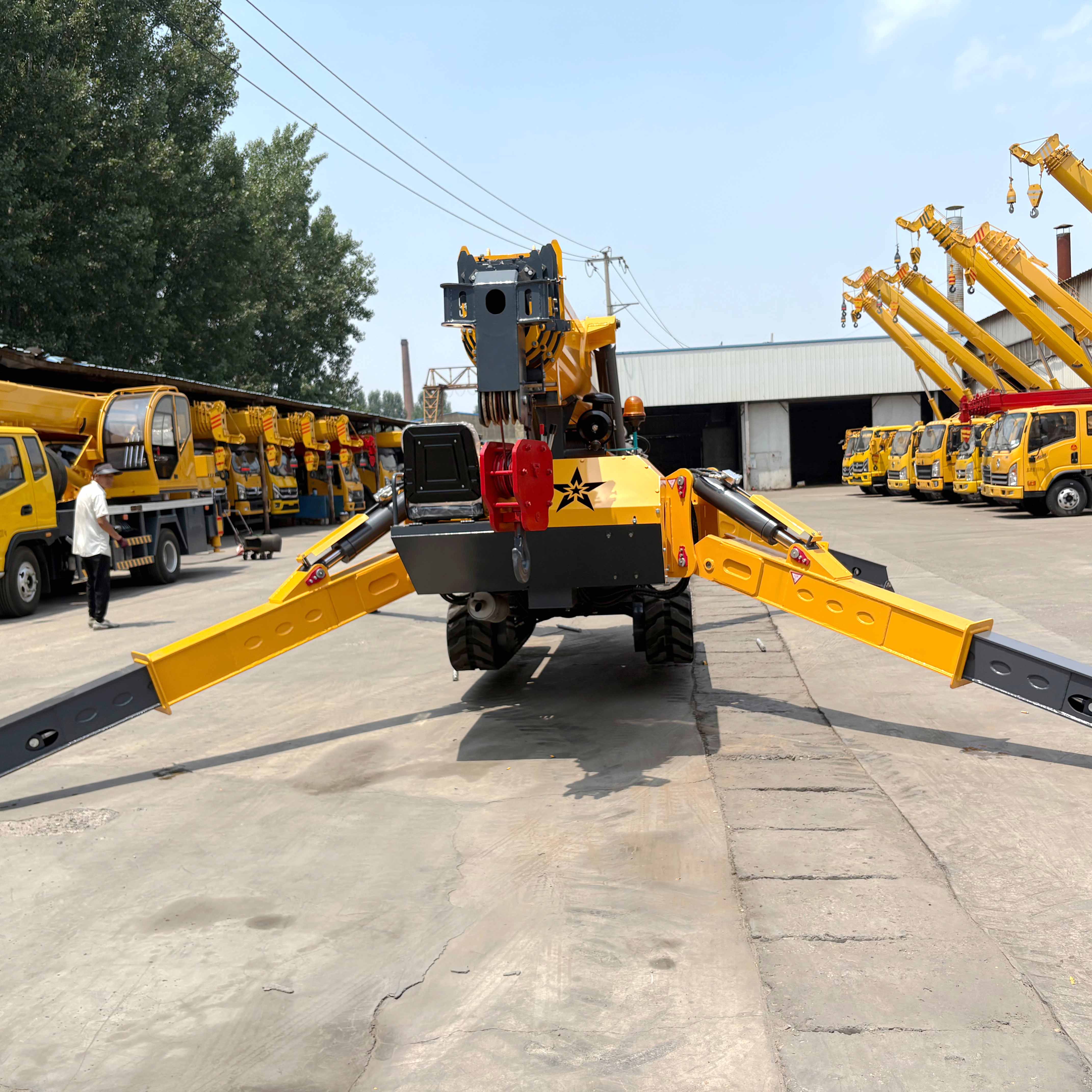

8 Ton Crawler Spider Crane
The 8-ton crawler spider crane offers strong lifting power in a compact, agile body designed for tight indoor spaces and narrow outdoor areas. Its fully automatic 5-section boom, 17.8m max lifting height, and 360° continuous rotation enable precise multi-angle operation for decoration work, equipment installation, and small construction tasks. With a 15kW electric motor or 47kW diesel engine, advanced outriggers, and smooth hydraulic travel, it provides stable, efficient, and easy-to-use performance for versatile lifting needs.
- Overview
- Recommended Products
Model |
YTW8.0 |
Specification |
8.00T*2.3m |
Maximum Working Radius |
16m*0.2T |
Maximum Ground Lifting Height |
17.8m |
Hook Speed |
12m/min 4 ropes |
Rope |
φ12mm*100m |
Boom Type |
Full automatic 5section |
Boom Length |
4.85m-17m (4.5 meters with 5 sections) |
Telescopic Length/Time |
17m/54sec(41sec） |
Boom Angle/Time |
0°-80°/24.5sec(17.0sec) |
Slew Angle/Time |
0°-360°(Continuous)/2.1rpm |
Outrigger Active Form |
Manual adjustment for the 1 section Automatic for the 2,3section |
Maximum Extended Dimensions |
Approximately (front left right) 6900mm * (rear left right) 7300mm * (front back) 5900mm |
Walking Way |
Hydraulic motor |
Walking Speed |
0-2.5KM/h |
Grade Ability |
20° |
Ground Length*Width |
2060mm * 350mm * 2 strips (rubber 350 * 52.5 * 104 sections) (steel 350 * 135 * 41 sections) grounding length 2300mm |
Ground Pressure |
49.0Kpa（0.50kgf/cm²） |
Electric Motor |
Three-phase AC asynchronous motor |
Working Voltage |
380V（HZ50） |
Power |
15KW |
Diesel Engine |
Cloud 490 Boost |
Emission Standard |
Country 2 ∥ |
Maximum Output |
47KW |
Starting Method |
Electric starting |
Fuel |
Fuel |
System Voltage |
24V |
Length*Width*Height |
5200mm*1590mm*2260mm |
Vehicle Weight |
9.2T |
