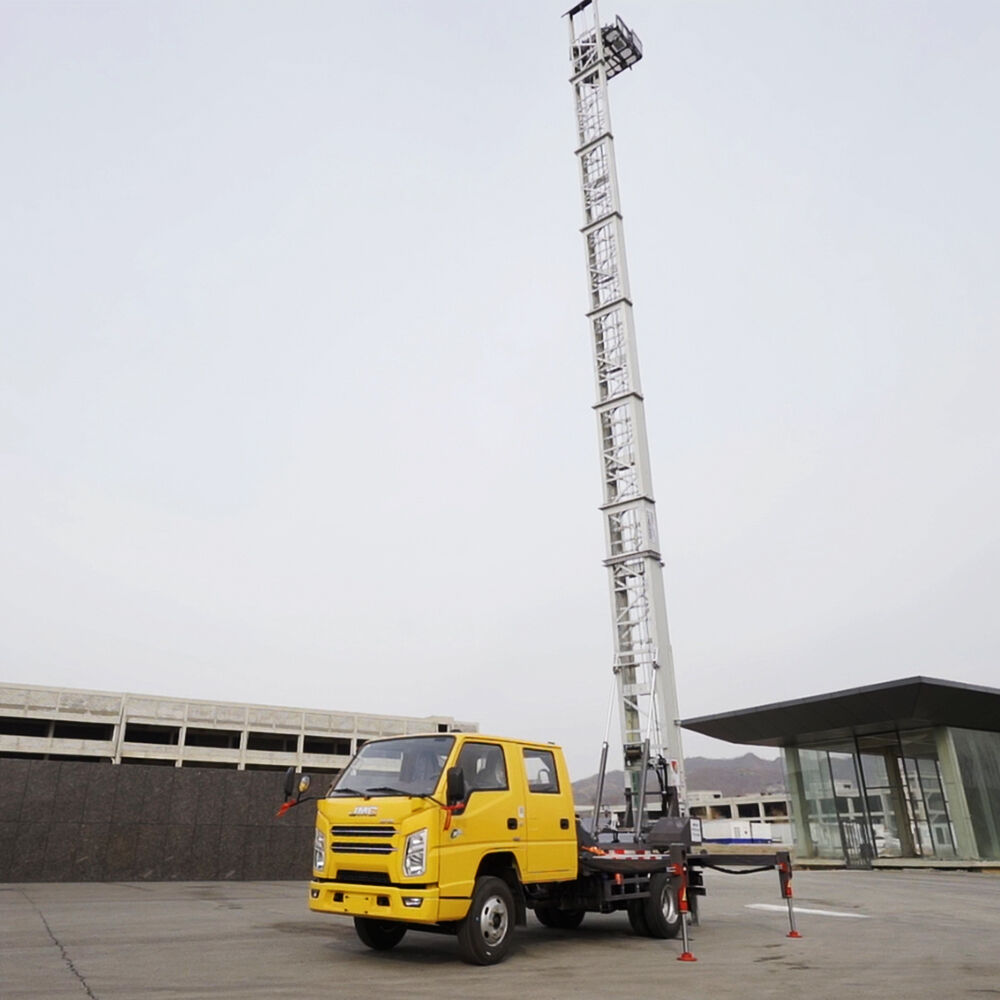

36m work height Aerial Ladder Truck

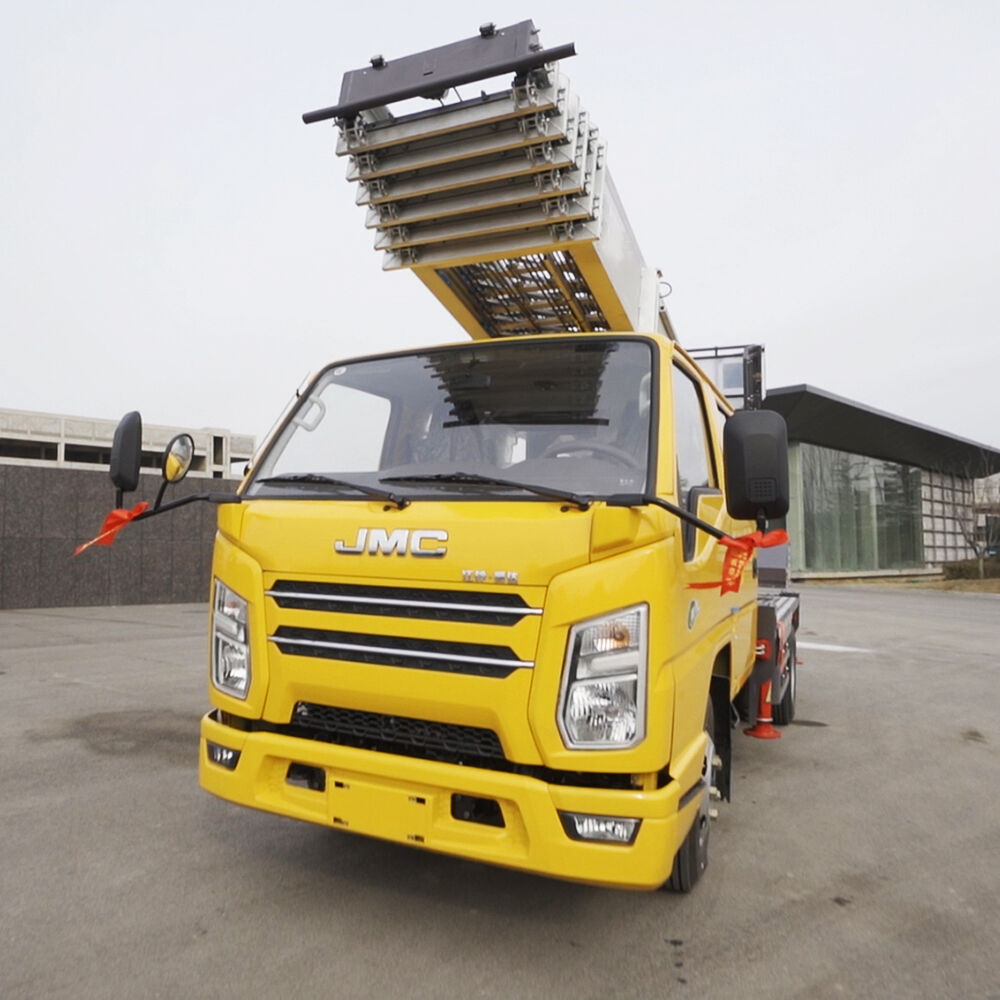

The aerial ladder truck is engineered for diversified high-altitude operations and material handling. Built on a JMC chassis, it delivers a 36-meter working height with a reinforced alloy structure that ensures stable elevation, smooth motion control, and strong load capacity. Its extended operating envelope, safety monitoring features, and multi-angle articulation support reliable performance in construction, emergency response, facility maintenance, and logistics tasks. The working height, platform configuration, and power system can be customized to provide a safer and more efficient aerial access solution.
- Overview
- Recommended Products
Item |
Unit |
Data |
Total Length |
mm |
5980 |
Total Width |
mm |
1895 |
Total Height |
mm |
3000 |
Gross Mass |
kg |
4495 |
Curb Weight |
kg |
4365 |
Number of Passengers (including driver) |
person |
2 |
Rated Load of Working Platform |
kg |
400 |
Maximum Working Height |
m |
36 |
Longitudinal Span |
mm |
4200 |
Chassis Name |
- |
Jiangling Shunda |
Chassis Model |
- |
JX1041TCF26 |
Engine Model |
- |
JX493ZLQ6A |
Engine Power |
ml/kW |
2771/90 |
Emission Standard |
- |
GB17691-2018 National VI |
Number of Axles |
piece |
2 |
Axle Load |
- |
1795/2700 |
Front Track |
mm |
1400 |
Rear Track |
mm |
1425 |
Number of Leaf Springs |
piece |
7/6+5 |
Number of Tires |
piece |
6 |
Tire Specification |
- |
6.50R16LT 10PR |
Maximum Driving Speed |
km/h |
100 |
