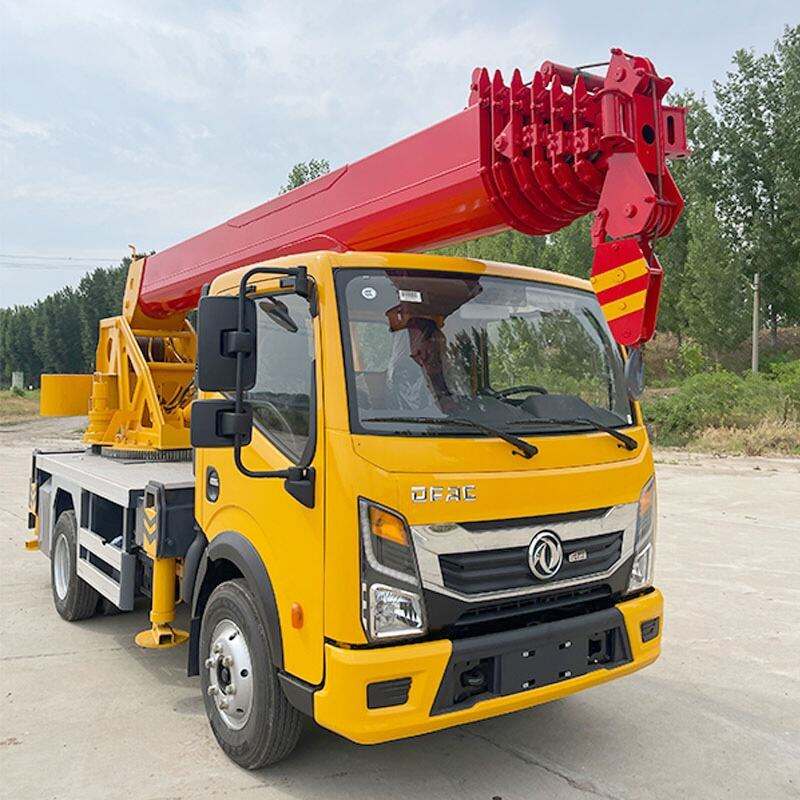

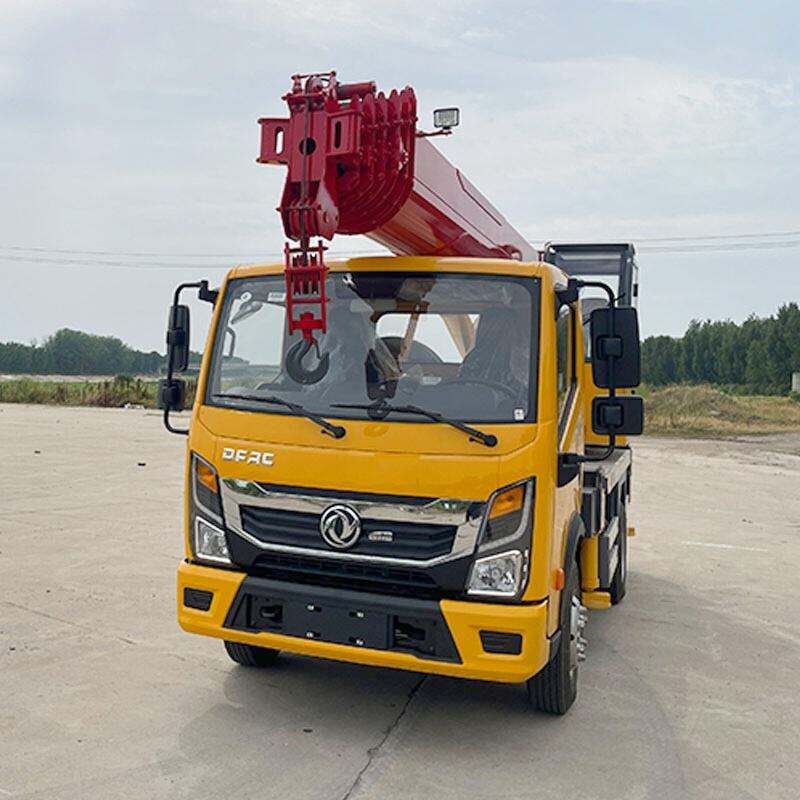

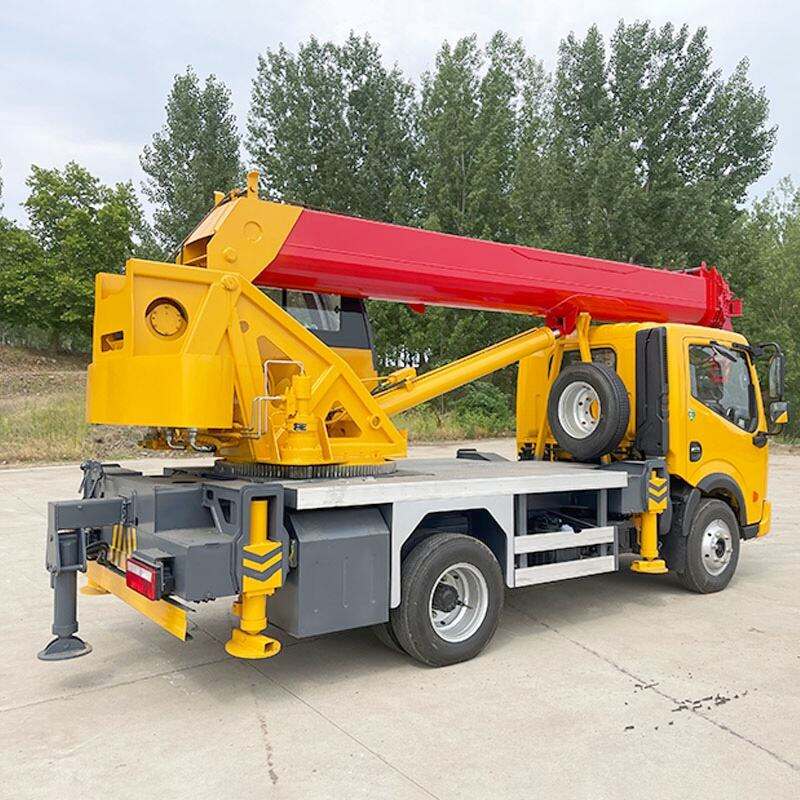

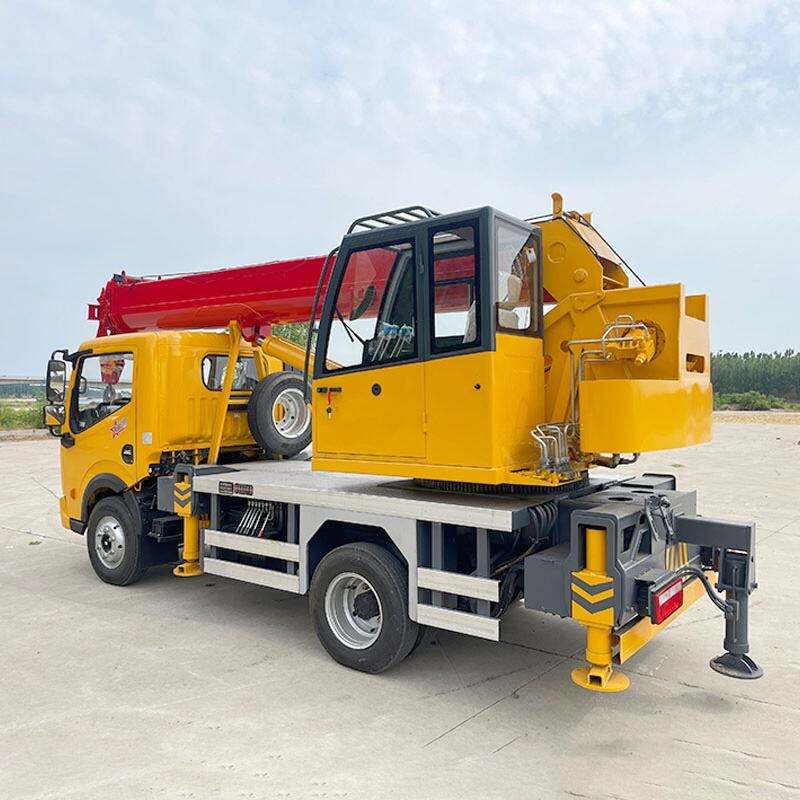

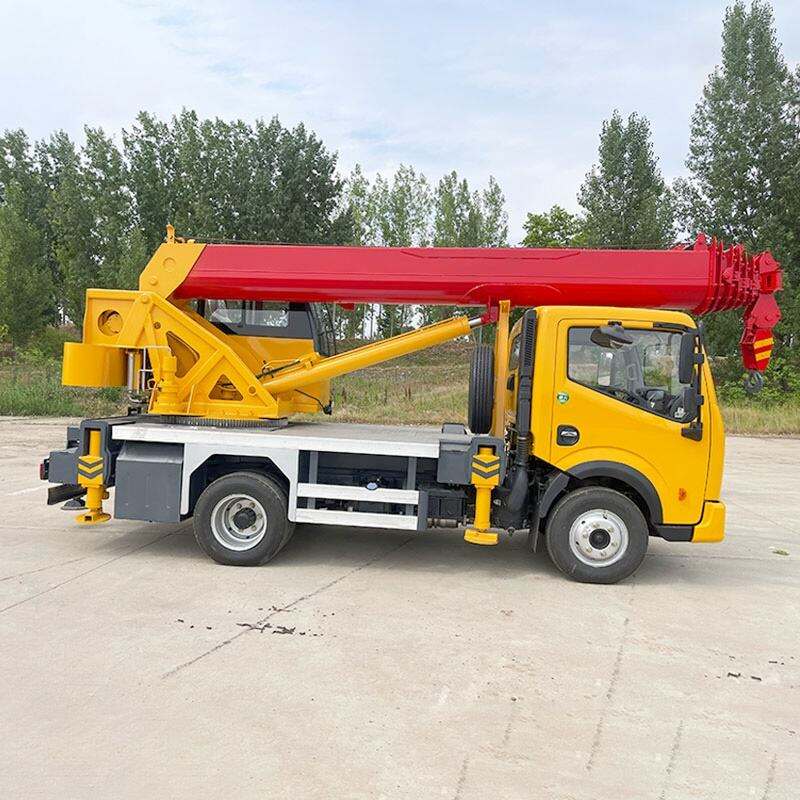

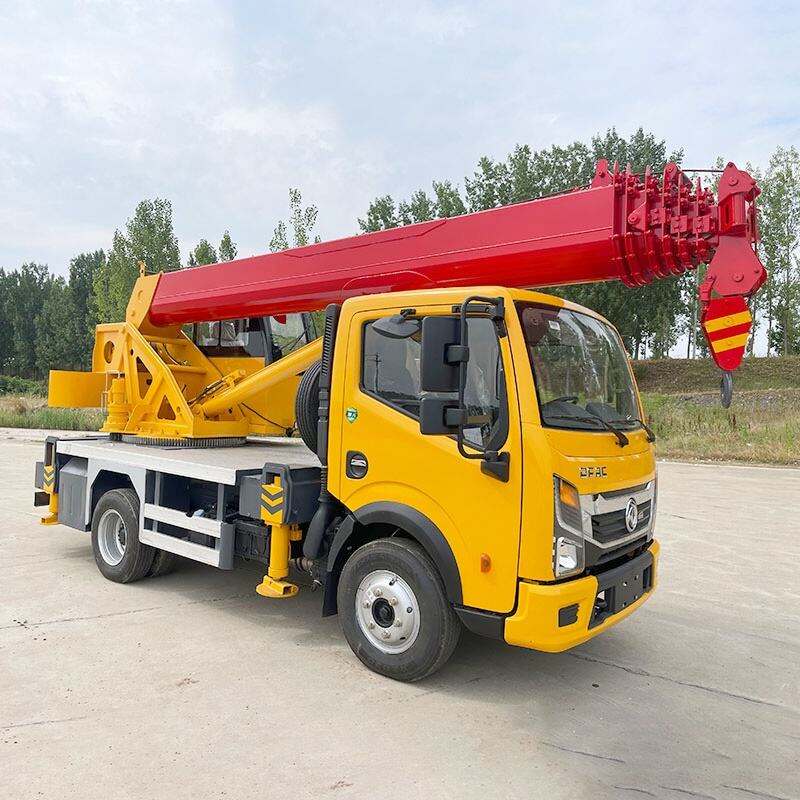

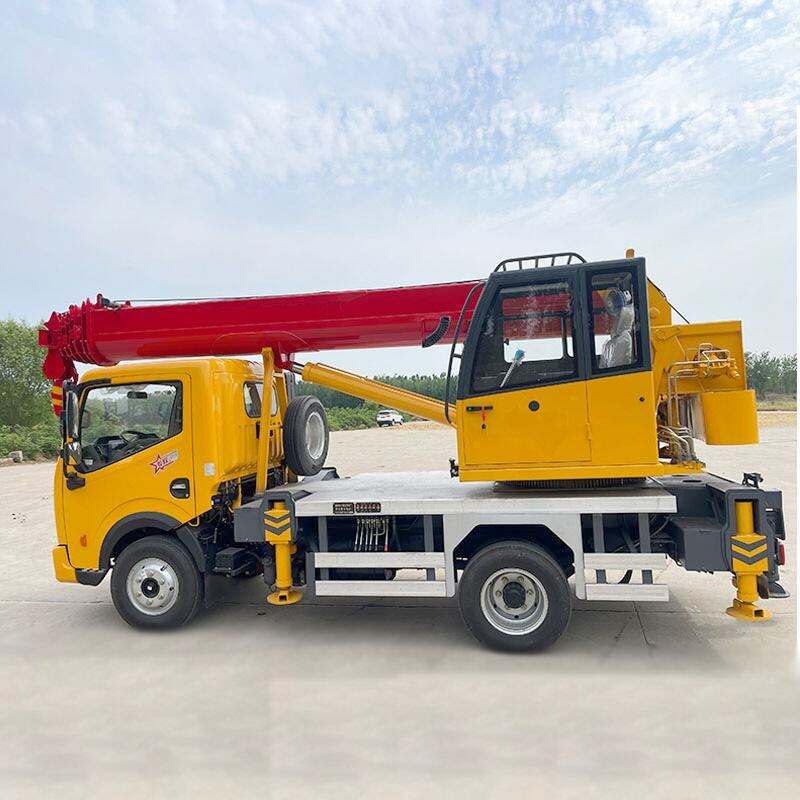

TCDFL-6T DONGFENG Chassis 6 Ton Truck Crane
The TCFOTON-6T is a 6-ton truck-mounted crane built on the Dongfeng chassis, featuring a spacious platform and a 7-section U-shaped boom with a 28-meter lifting height. The boom extends smoothly for precise lifting, supported by an 8-ton slant-shaft winch and 5.4 m × 5.4 m outriggers for stable operation on varied terrain. Its intelligent controls, durable hook, and safety devices ensure reliable performance. Compact and customizable, it suits construction, municipal, and industrial lifting tasks.
- Overview
- Recommended Products
Brand & Model:TCDFL-6T |
Main Hook Winch:8T Oblique Towing Winch |
Chassis Model:DFL Xingyun |
Gearbox Type:Planetary Gearbox |
Max. Lifting Capacity:6T |
Slewing Bearing:1.2-Meter External Gear |
U-shaped Boom:7-section single plate boom,5m |
Hydraulic Pump:40# displacement pump |
Max. Lifting Height:28 m |
Central Slewing:Electric Slewing |
Outrigger Span (Lateral·Longitudinal):5.4m *5.4m |
Frame Size/Extension:300*150mm/1.5m |
Overall Dimensions (mm):5995× 1950× 2750(L×W×H) |
Boom Cross-Section:450 mm × 468 mm |
Lifting Speed (Aux/Main Hook):36(95)-76 m/min |
Rear Jack:Equipped |
Slewing Speed:0–3 rpm |
Steering System:Power-Assisted |
Engine Model:Quanchai-Q25A-162E60(Fully Diesel) |
Brake System:Air Brake |
Engine Power:116 kW / 162 hp |
Transmission Brand:Wanliyang |
Tire Model:700R16 |
Wheelbase:2800 mm |
Traveling Speed:110 km/h |
Weight:7500kg/4495 kg |
Chassis Air Conditioning:Standard |
Outrigger Leg Length:1800 mm (Per Leg) |
Special Features |
Negative angle operation, Electronic throttle |
Optional Configurations |
Upper cab AC, torque computer, camera, dual-operation controls |
