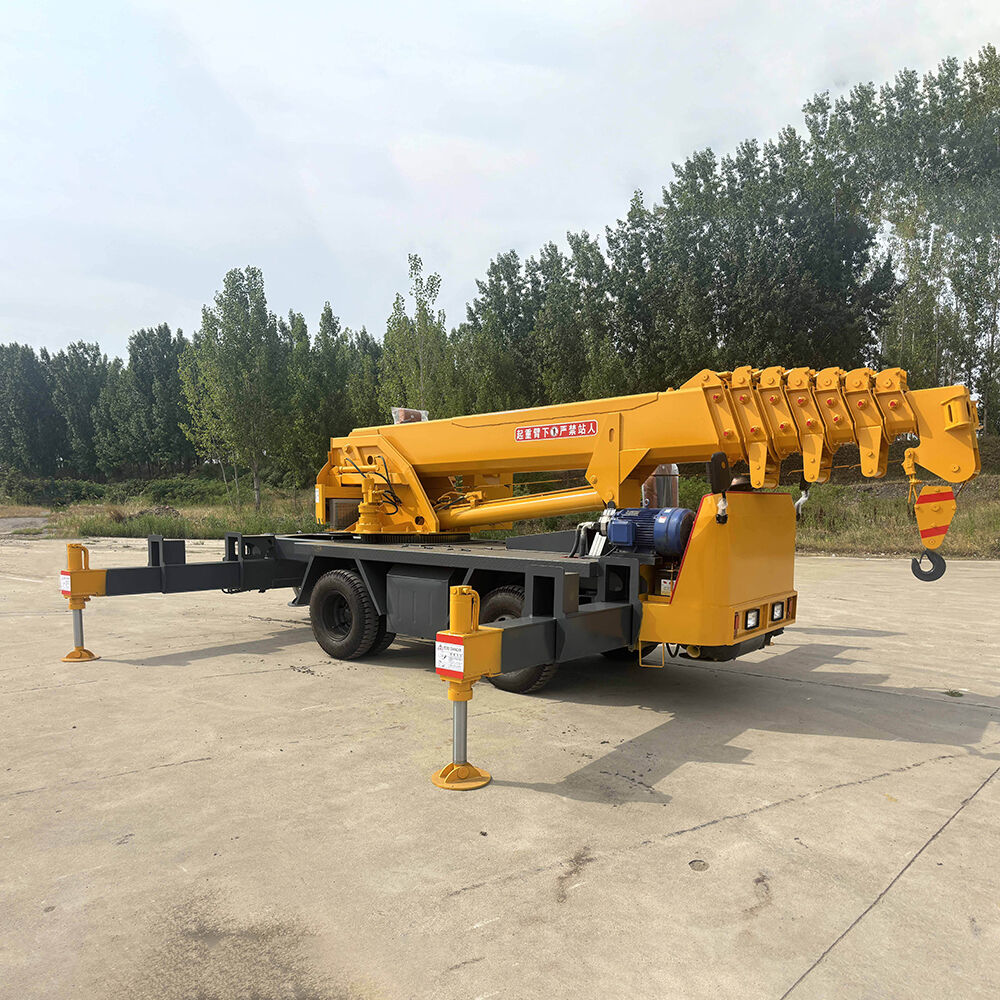

HC8T 8 Ton Self-made Crane
The HC8T 8-ton self-made crane combines practical design with strong adaptability for diverse lifting tasks. Its self-developed chassis, 8-section boom, and 22-meter lifting height deliver excellent load-bearing performance, while the diagonal-shaft winch, 1.05-meter slewing bearing, and double outriggers ensure stable, reliable operation. Measuring 5000×1850×2400 mm and equipped with air brakes and power steering, it offers flexible, efficient, and adjustable height and angle control, making it well-suited for material handling, DIY projects, and small-scale lifting work.
- Overview
- Recommended Products
Brand Model: HC8T |
Main Hook Winch: Diagonal axis winch |
Chassis Model:Self-made Chassis |
Rotating Bearing: 1.05m external gear |
Max Lifting Capacity: 8T |
Engine Pump: 40# |
Boom: 3.5m * 8 sections |
Central Rotation: Small three-way design |
Max Lifting Height: 22m |
Frame Size/Extension: 250*150mm/1m |
Leg Span (Transverse * Longitudinal): 5m / 4.8m |
Boom Size: 490*300mm |
External Dimensions (LWH): 5000*1850*2400mm |
Rear Shift Jack: Yes |
Lifting Speed (Auxiliary/Primary Hook): 36(95)-76m/min |
Steering Type: Power-assisted |
Rotation Speed: 0-3rpm |
Brake Type: Air brake |
Engine Model: 490 Engine |
Wheelbase: 1750mm |
Tire Model: 750R16 Tires |
Leg Dimensions: Double legs, 1600mm each |
Travel Speed: 60km/h |
Rear Shift Top: Available |
