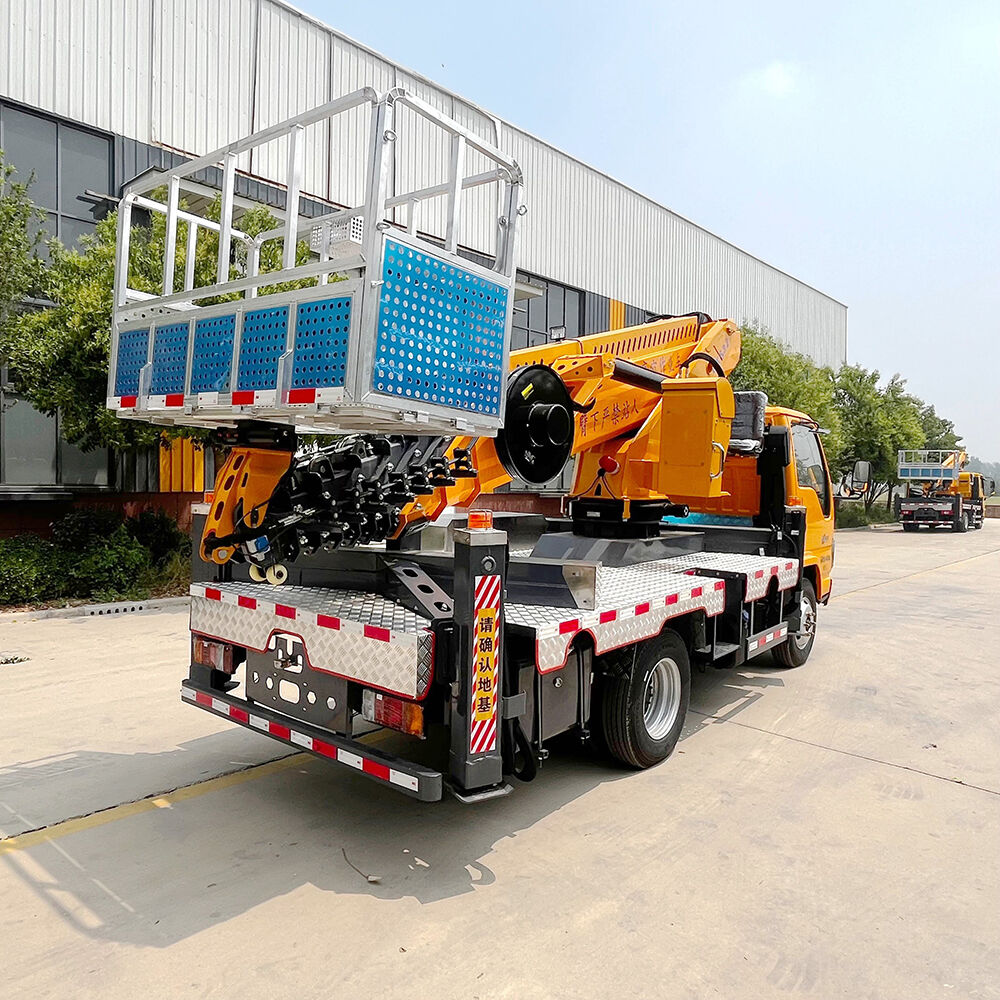

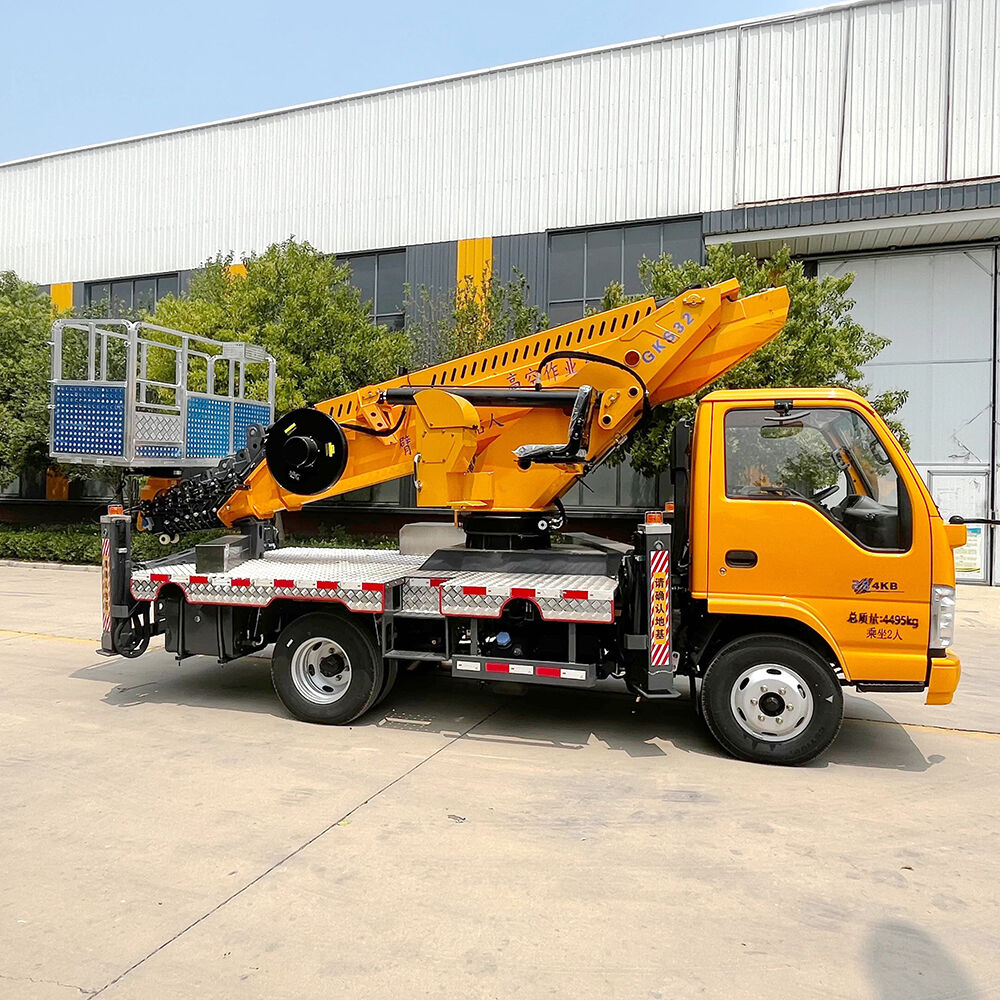

ISUZU CHASSIS 32m WORKING HEIGHT AERIAL WORK PLATFORM
The high altitude operation vehicle utilizes a high-performance Isuzu chassis, offering powerful performance and flexible handling. Its 7-section folding boom structure provides excellent horizontal and vertical mobility, with a maximum working height of 32 meters and a platform rated load of 200 kg. Furthermore, it is equipped with an intelligent anti-tilt and overload alarm safety system. It is widely used in construction, power maintenance, and landscaping, effectively solving the challenges of working at heights.
- Overview
- Recommended Products
Model: WSLGKS32 |
Chassis: Isuzu chassis QL1041DCFAY |
Total length (mm): 5998 |
Support legs: Front and rear V-shaped support legs (individually adjustable) |
Total width (mm): 2050 |
Engine: Isuzu 4KB1-TCG60 engine (130 HP) |
Total height (mm): 2980 |
Wheelbase (mm): 2800 |
Weight (KG): 5742 |
Lateral span (mm): 6200 |
Maximum working height (meters): 32 |
Longitudinal span (mm): 5700 |
Maximum working radius and maximum working height (M): 3.7 |
Tires: 7.00R16LT Steel wheels |
Maximum working radius (meters): 16 |
Braking system: Hydraulic brake |
Working radius at maximum working height (meters): 23 |
Boom types: 8-stage drum-shaped polygonal cross-section booms and 7-stage synchronous telescopic booms. |
Front overhang (mm): 1075 |
Rotator: 21-inch disc worm gear integrated turntable (first-tier brand) and 360-degree free rotation |
Rear overhang (mm): 2120 |
Platform maximum load capacity (KG): 200KG |
