TCFOTON-6 Foton Chassis 6 Ton Truck Crane

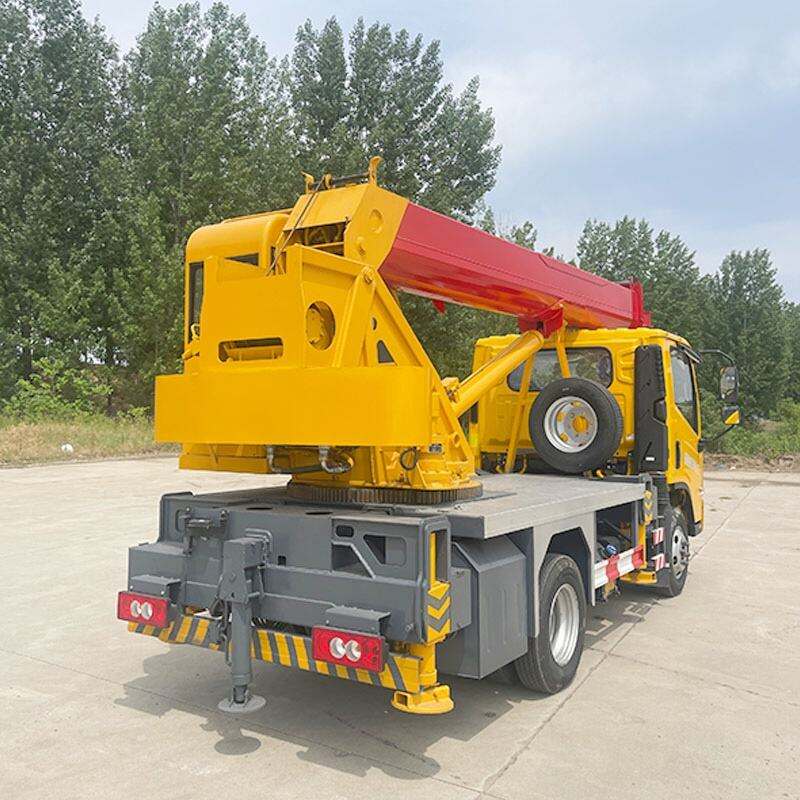

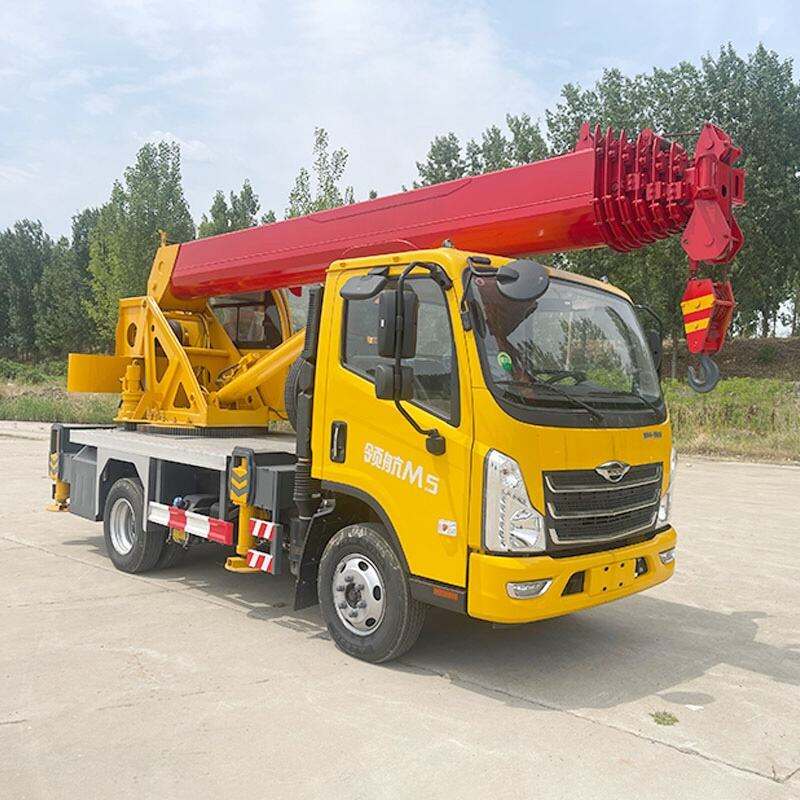

The TCFOTON-6T is a 6-ton truck-mounted crane built on the Foton M5 chassis, featuring a spacious platform and a 7-section U-shaped boom with a 28-meter lifting height. The boom extends smoothly for precise lifting, supported by an 8-ton slant-shaft winch and 5.4 m × 5.4 m outriggers for stable operation on varied terrain. Its intelligent controls, durable hook, and safety devices ensure reliable performance. Compact and customizable, it suits construction, municipal, and industrial lifting tasks.
- Overview
- Recommended Products
Brand & Model:TCFOTON-6T |
Main Hook Winch:8T inclined-axis winch |
Chassis Model:FOTON Linghang M5 |
Reducer Model:Planetary gear reducer |
Max. Lifting Capacity:6T |
Slewing Ring:1.2 m external gear ring |
U-shaped Boom:7-section single plate boom,5m |
Hydraulic Pump:40# displacement pump |
Max. Lifting Height:28 m |
Central Slewing Joint:Electric rotary union |
Outrigger Span (Lateral·Longitudinal):5.4 m *5.4 m |
Frame Size/Extension:300×150 mm / 1.5m |
Overall Dimensions (mm):5995 × 1870 × 2850 (L×W×H) |
Boom Dimensions:450×468 mm |
Hoisting Speed (Aux/Main):36(95)-76 m/min |
Rear Jack:Yes |
Slewing Speed:0-3 rpm |
Steering System:Power-assisted hydraulic steering |
Engine Model:Q25A-150E60 (Fully Diesel) |
Brake Type:Air brake |
Engine Power:110 kW / 150 HP |
Transmission:WLY Transmission |
Tire Specification:650R 16 |
Wheelbase:2800 mm |
Travel Speed:115 km/h |
Actual/Certified Weight:7500 kg / 4495 kg |
Chassis Air Conditioning:Yes |
Outrigger Leg Length:Dual-stage 1800 mm |
Special Features |
Negative angle operation, Electronic throttle |
Optional Configurations |
Upper cab AC, torque computer, camera, dual-operation controls |
