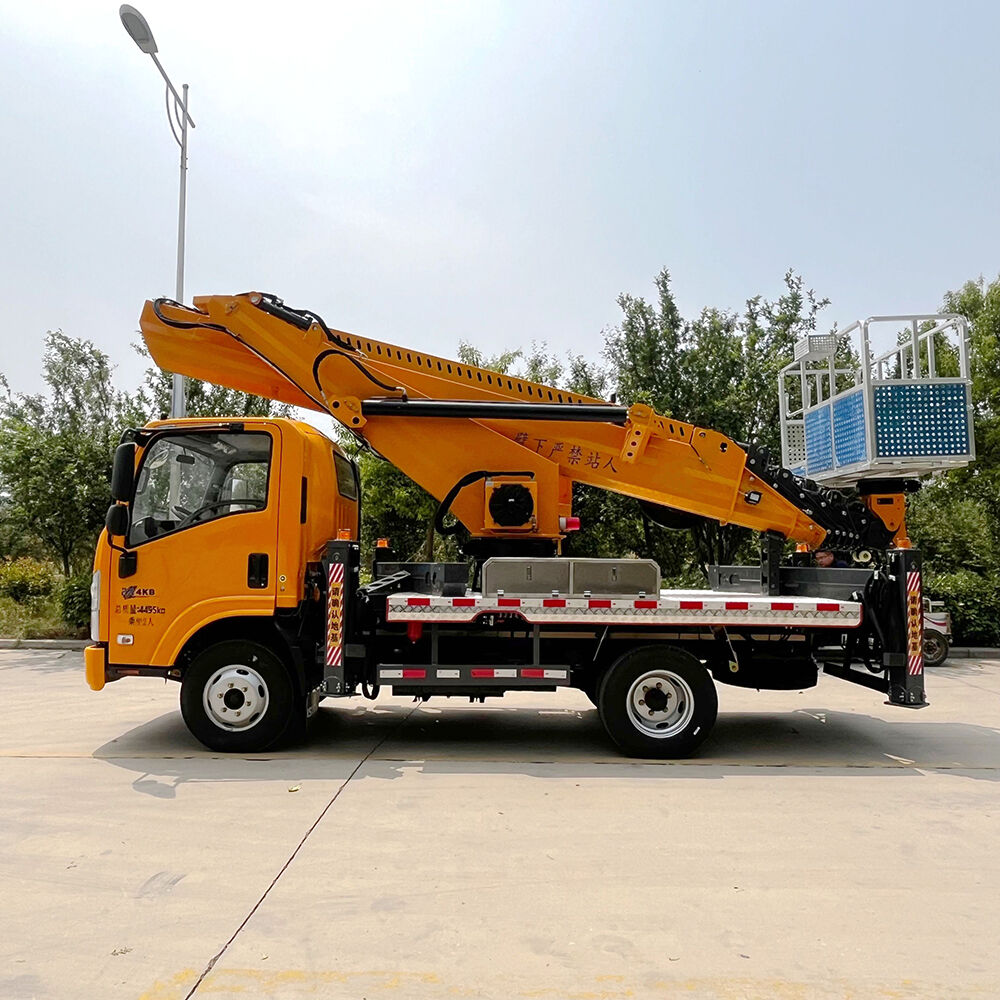

Isuzu Chassis 34 Meter Working Height Aerial Work Platform Truck
The 34-meter aerial work platform truck, built on an Isuzu chassis, is a highly efficient, safe, and reliable platform widely used in power line maintenance, municipal maintenance, street light installation, landscaping, and construction. Equipped with a 34-meter telescopic boom, it can reach a maximum working height of 34 meters, supports 360° continuous rotation, offers flexible operation, and a wide working range. It features a hydraulic leveling system and anti-misoperation protection devices, comprehensively ensuring safety during aerial work operations.
- Overview
- Recommended Products
Model：WSLGKS34 |
Chassis：Isuzu Chassis M100 |
Total Length(MM):5998 |
Control operation：Work platform and ground remote control operation |
Overall width(MM):2090 |
Engine：Isuzu engine(130 HP、96KW) |
Overall height (MM):3300 |
Transmission:Isuzu MSB 5-Speed |
Act. Wt.(KG):6348 |
Transverse Span(MM)：6200 |
Max. Work Height(M):34 |
Longitudinal Span(MM)：5700 |
Work radius at Max. work height(M):3.7 |
Tyre：7.00R16LTSteel Wheel |
Max. Work Radius(M)：18 |
Braking System：Air Brake System |
Work height at Max. work radius(M):23 |
Boom Type：7-Segment Drum-Shaped 18-Faceted Arm & 7-Stage Synchronized Telescoping |
Front Axle:2.5T |
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation |
Wheelbase(MM)：2795 |

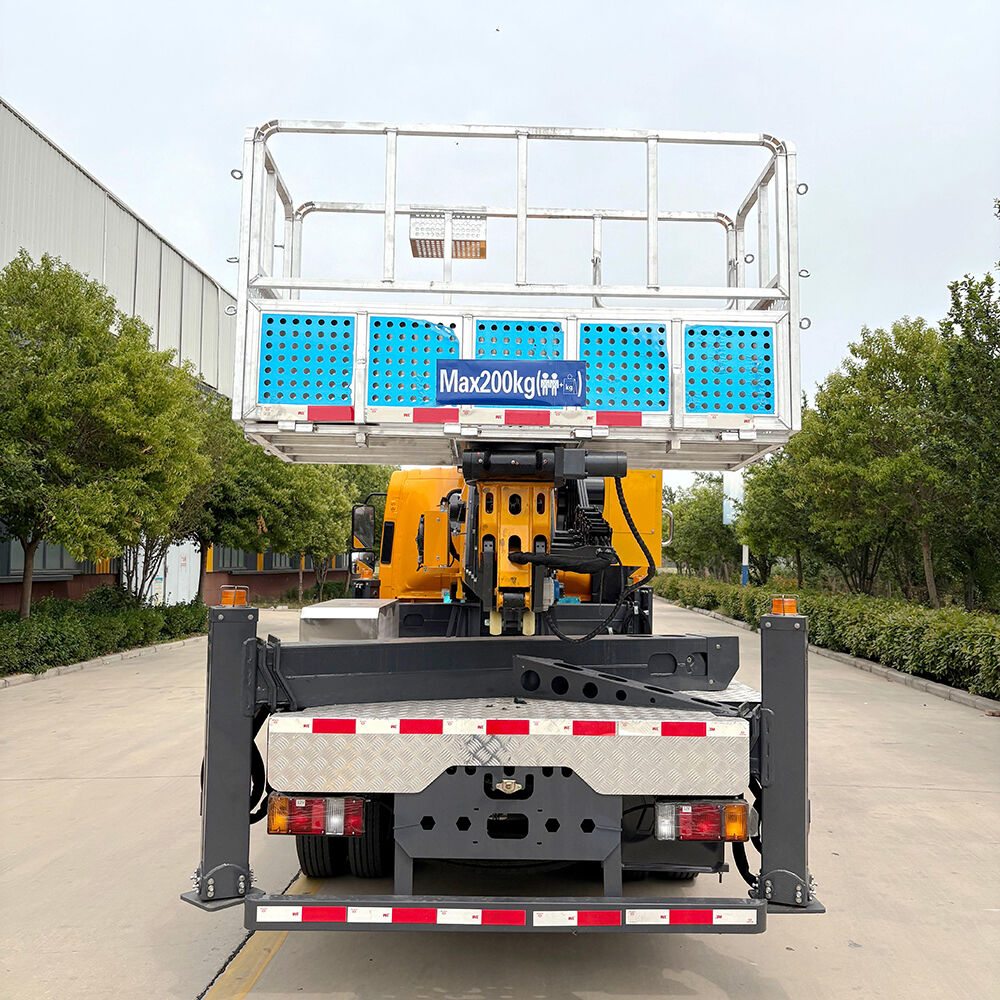

Platform Max. Load Capacity(KG)：200KG |
Rear Axle：4.8T |
Outrigger：X-outrigger,Four double jointed outrigger,individually adjustable |
