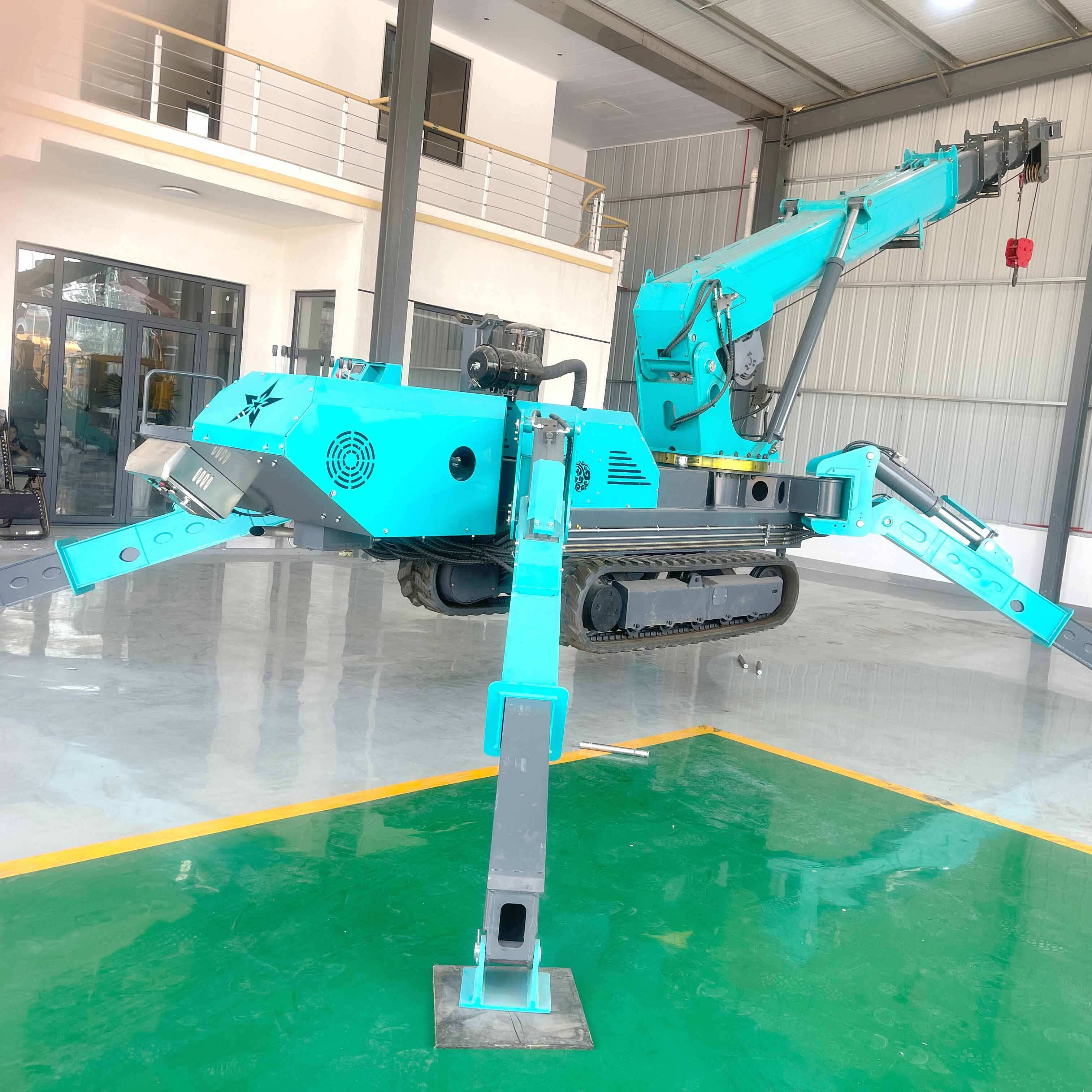

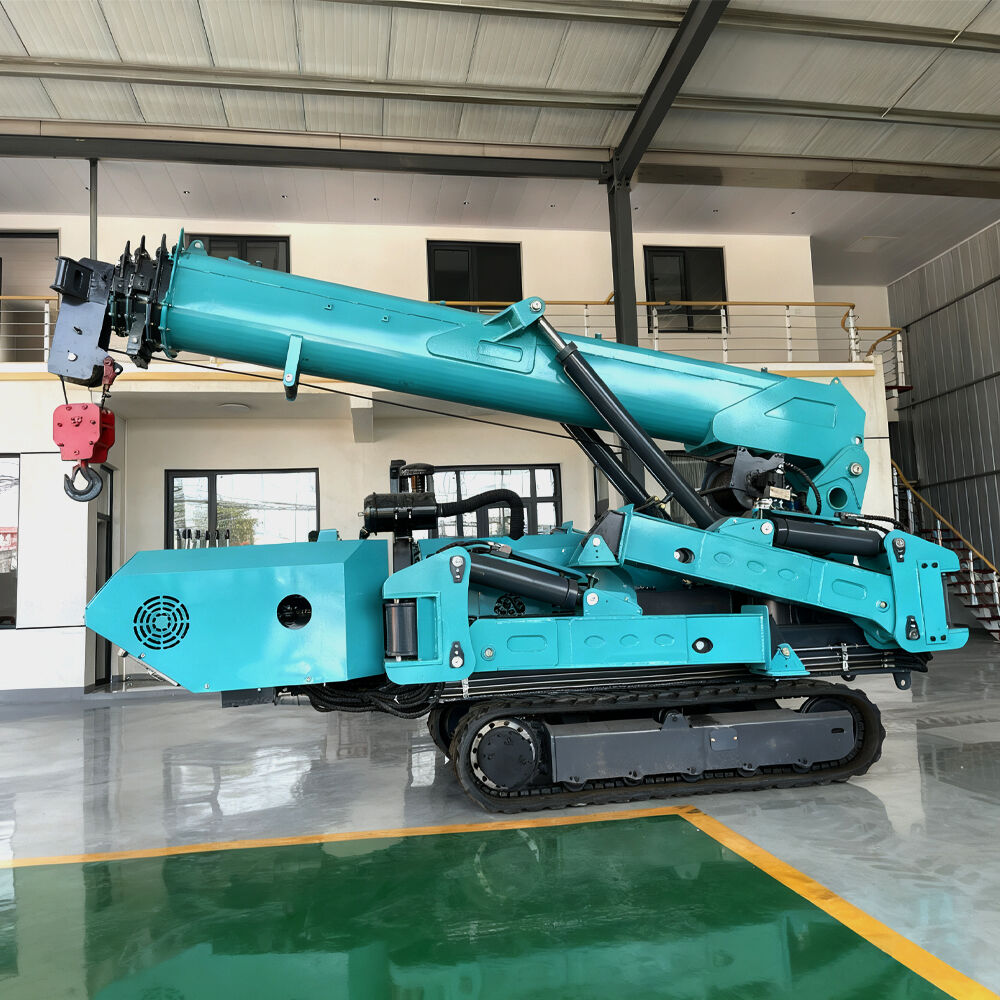

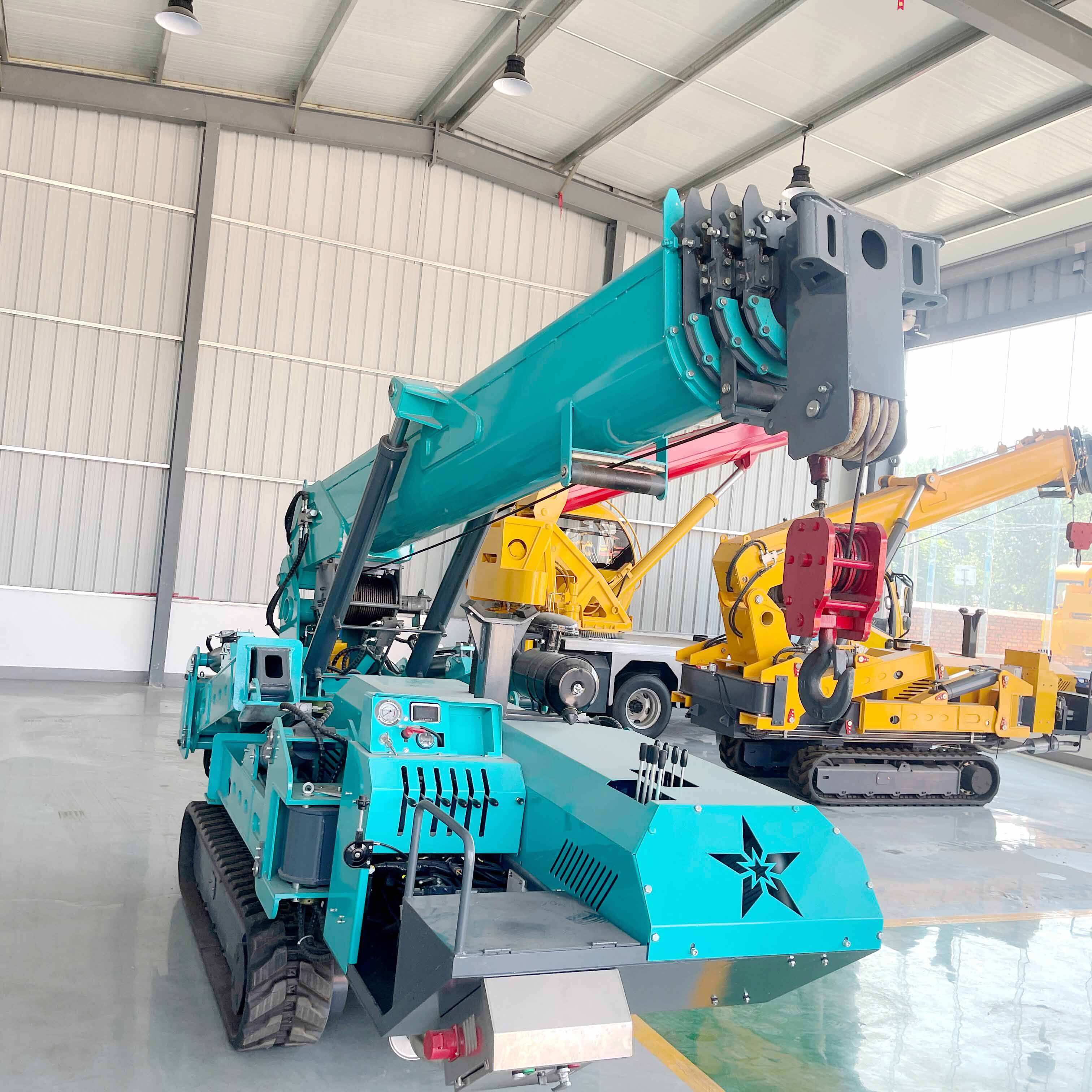

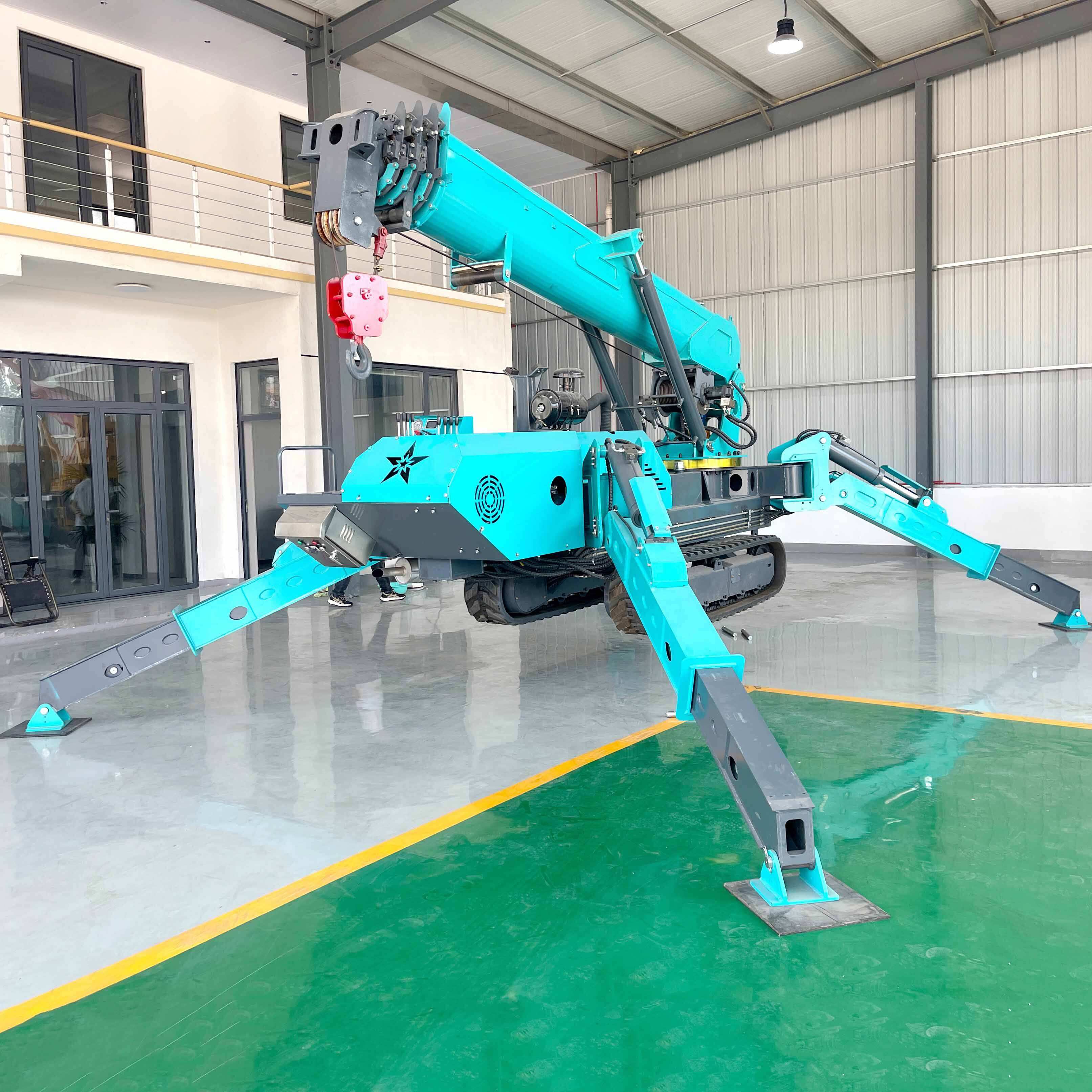

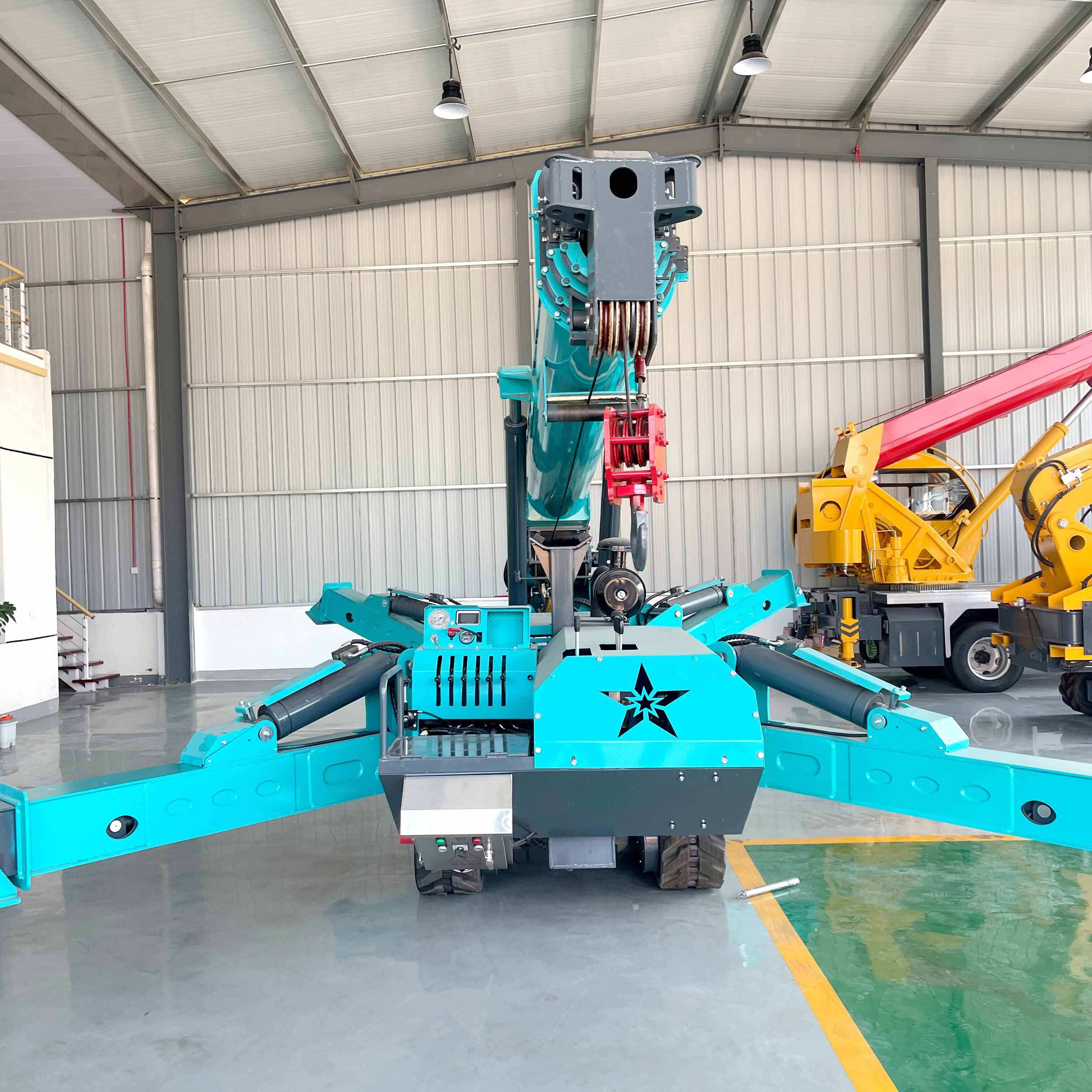

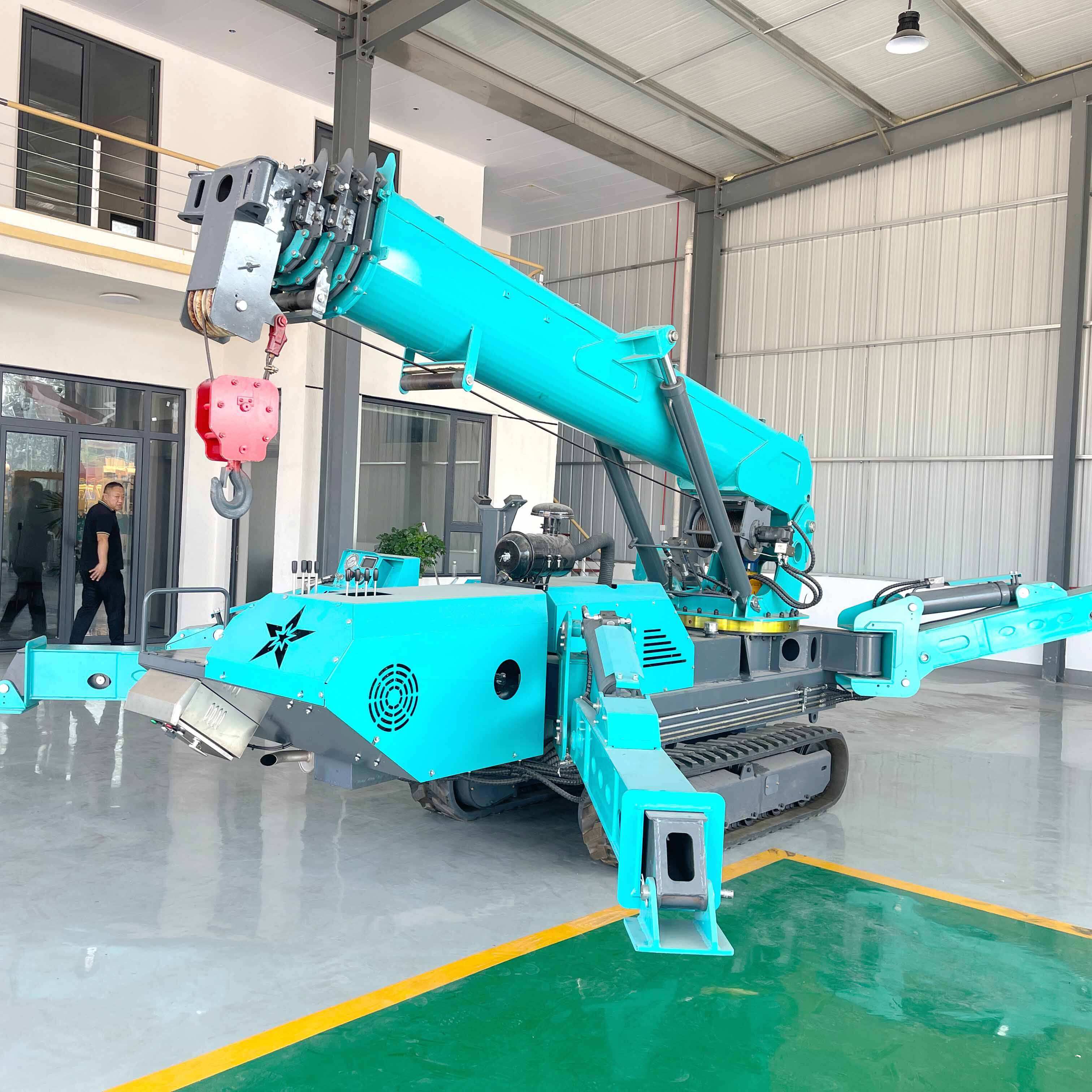

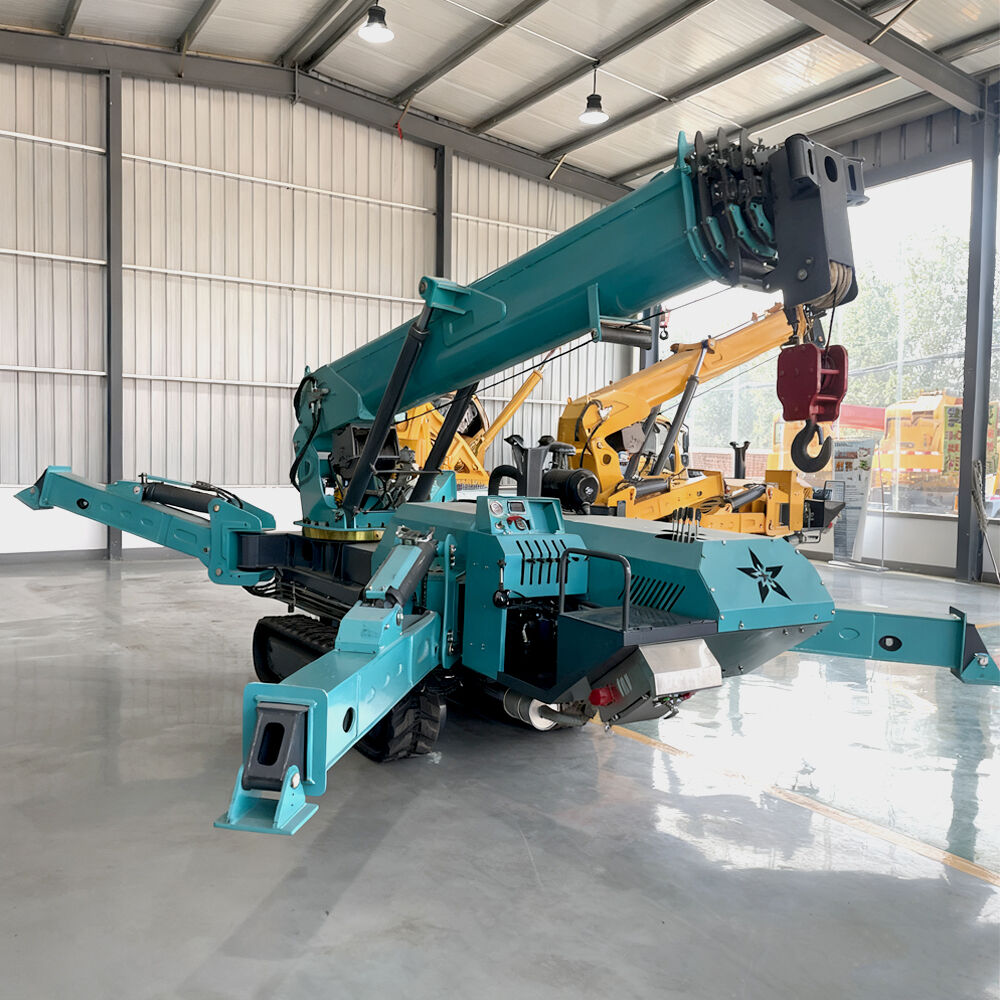

5 ton crawler spider crane
The 5-ton crawler spider crane features a compact, agile design ideal for narrow indoor spaces and confined outdoor areas. Its fully automatic 5-section boom, 16.8m max lifting height, and 360° continuous rotation enable precise multi-angle lifting for decoration, equipment installation, and small construction projects. Powered by an 11kW electric motor or a 37kW diesel engine, it delivers stable performance, easy operation, and efficient handling for a wide range of light to medium lifting tasks.
- Overview
- Recommended Products
Model |
YTW5.0 |
Specification |
5.00T*2.0m |
Maximum Working Radius |
16m*0.21T |
Maximum Ground Lifting Height |
16.8m |
Hook Speed |
12m/min 4 ropes |
Boom Type |
Full automatic 5section |
Boom Length |
4.7m-16.5m (4 meters and 5 sections) |
Telescopic Length/Time |
11.7m/45sec(38sec） |
Boom Angle/Time |
0°-80°/24.5sec(17.0sec) |
Slew Angle/Time |
0°-360°(Continuous)/2.1rpm |
Maximum Extended Dimensions |
(Left and Right) 5670mm * (Front) 5510mm * (Rear) 5030mm |
Walking Way |
Hydraulic motor |
Walking Speed |
0-2.5KM/h |
Grade Ability |
20° |
Ground Pressure |
49.0Kpa（0.50kgf/cm²） |
Motor model |
Three-phase AC asynchronous motor |
Working Voltage |
380V（HZ50） |
Power |
11KW |
Diesel Engine |
Yunnei 490 (National II) |
Emission Standard |
Country 2 ∥ |
Maximum Output |
37KW |
Starting Method |
Electric starting |
Fuel |
Fuel |
System voltage |
24V |
Length*Width*Height |
4600mm*1430mm*2170mm |
Vehicle Weight |
6.55T |
