45m work height Aerial Ladder Truck

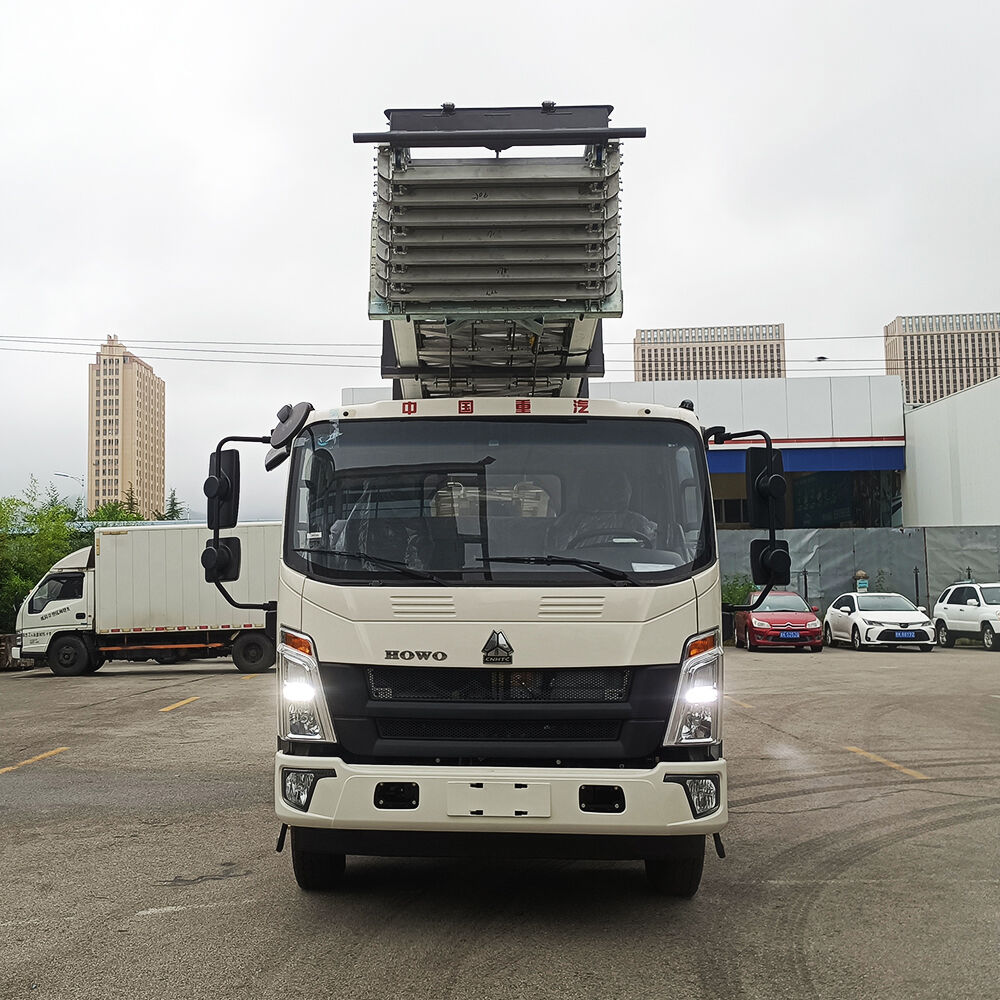

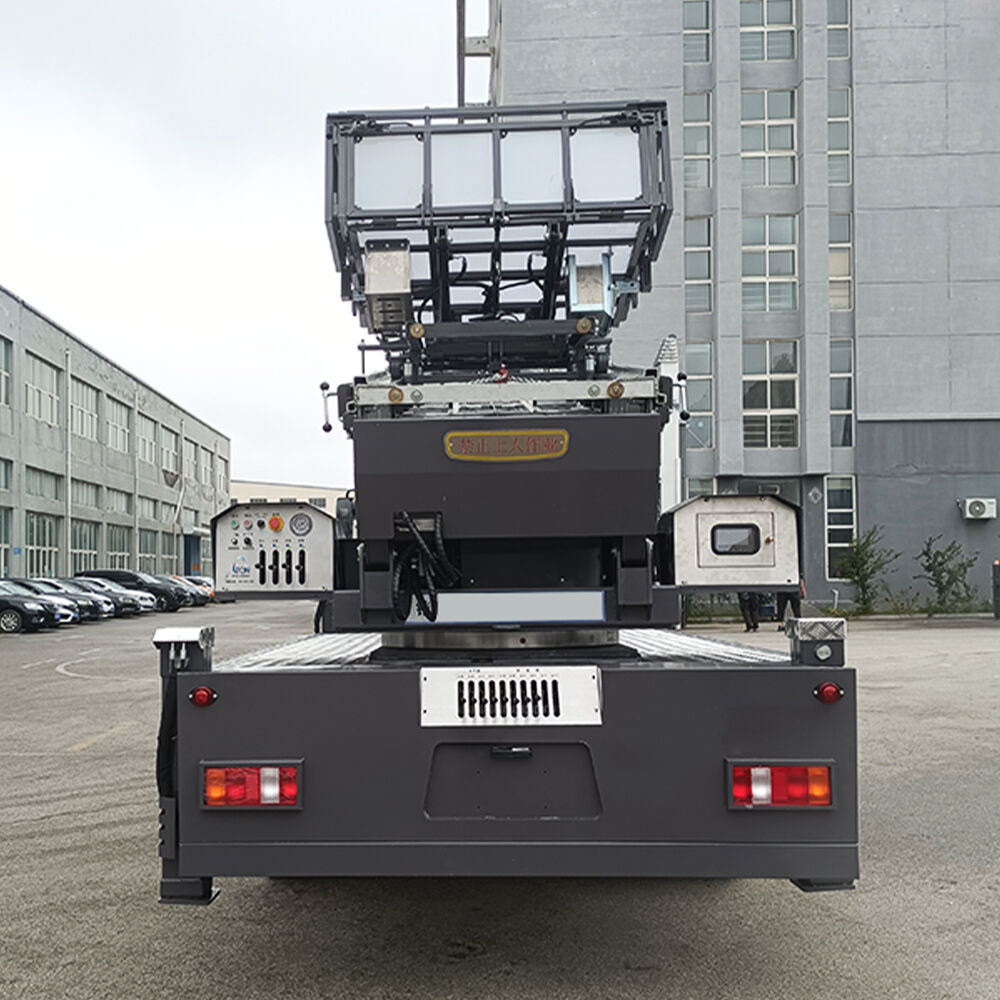

The aerial ladder truck, built on a HOWO chassis, offers a 51-meter working height and a high-strength alloy ladder system with smooth, synchronized extension for stable vertical transport. Its wide operating range, dual-stage outriggers, and imported hydraulic components ensure strong load capacity and reliable performance. With intelligent monitoring, safety interlocks, and precise angle control, it is well-suited for building installation, high-rise moving, rooftop maintenance, rescue work, and logistics handling.
- Overview
- Recommended Products
Item |
Data |
Maximum Working Height |
51 m |
Length |
8000 mm |
Width |
2440 mm |
Height |
3500 mm |
Gross Weight |
9900 kg |
Curb Weight |
9705 kg |
Truck Cable Length |
127 m |
Aerial Ladder Cable Length |
116 m |
Working Platform |
1150×1000×450 mm |
Rated Load of Working Platform |
400 kg |
Extended Length of Secondary Outriggers |
2270 mm |
Lateral Span of Outriggers |
6000 mm |
Longitudinal Span of Outriggers |
5000 mm |
Outrigger Retraction/Extension Time |
5 s |
Boom Type |
9-Section Synchronous Telescoping |
Slewing Device |
180° Left and Right |
Radiator |
Manual / Automatic |
Chassis |
Sinotruk Howo |
Engine |
Weichai Power |
Displacement |
4088 ml |
Power |
140 kW |
Horsepower |
190 HP |
Number of Seats |
3 Persons |
Axle Count |
2 |
Axle Load |
3.6/6.4 t |
Wheelbase |
4200 mm |
Front Track |
1815 mm |
Rear Track |
1795 mm |
Leaf Spring Quantity |
9/12+9 Pieces |
Number of Tires |
6 |
Tire Specification |
8.25R16LT |
Maximum Travel Speed |
95 km/h |
Approach Angle |
24° |
Departure Angle |
8.5° |
