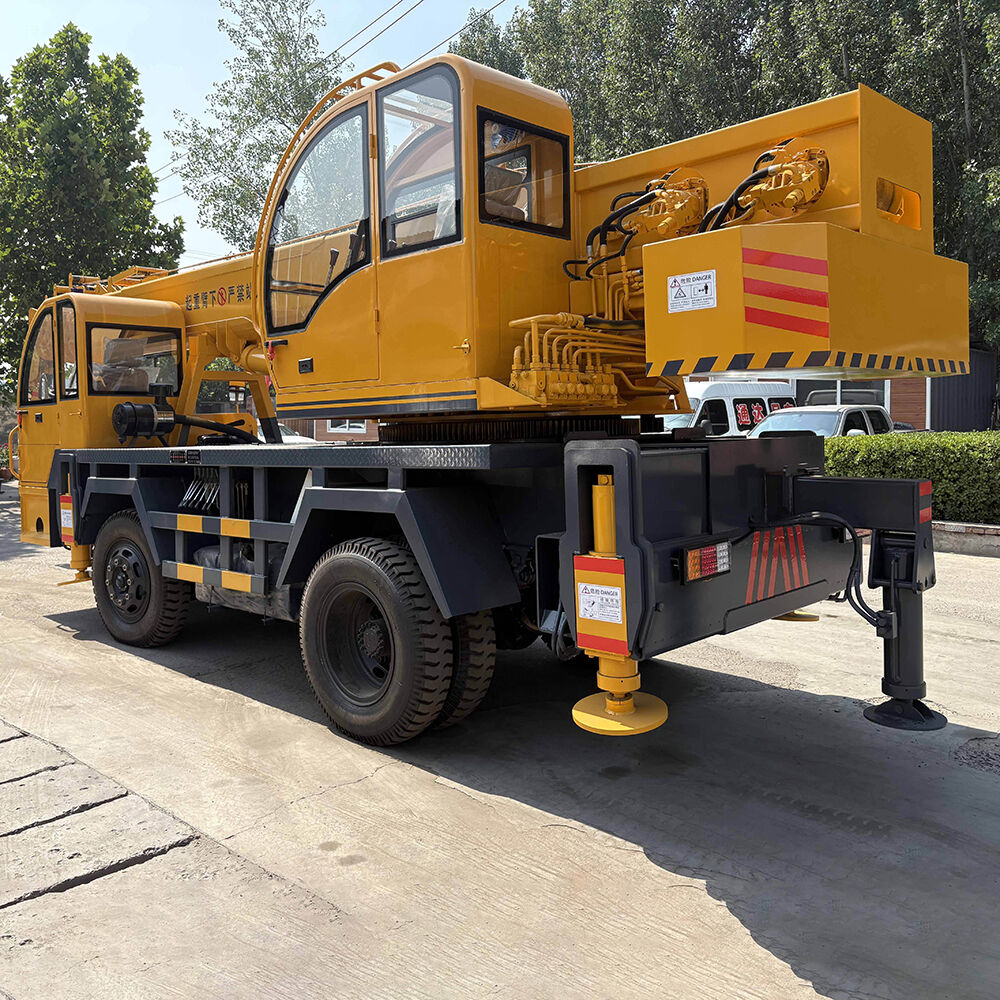

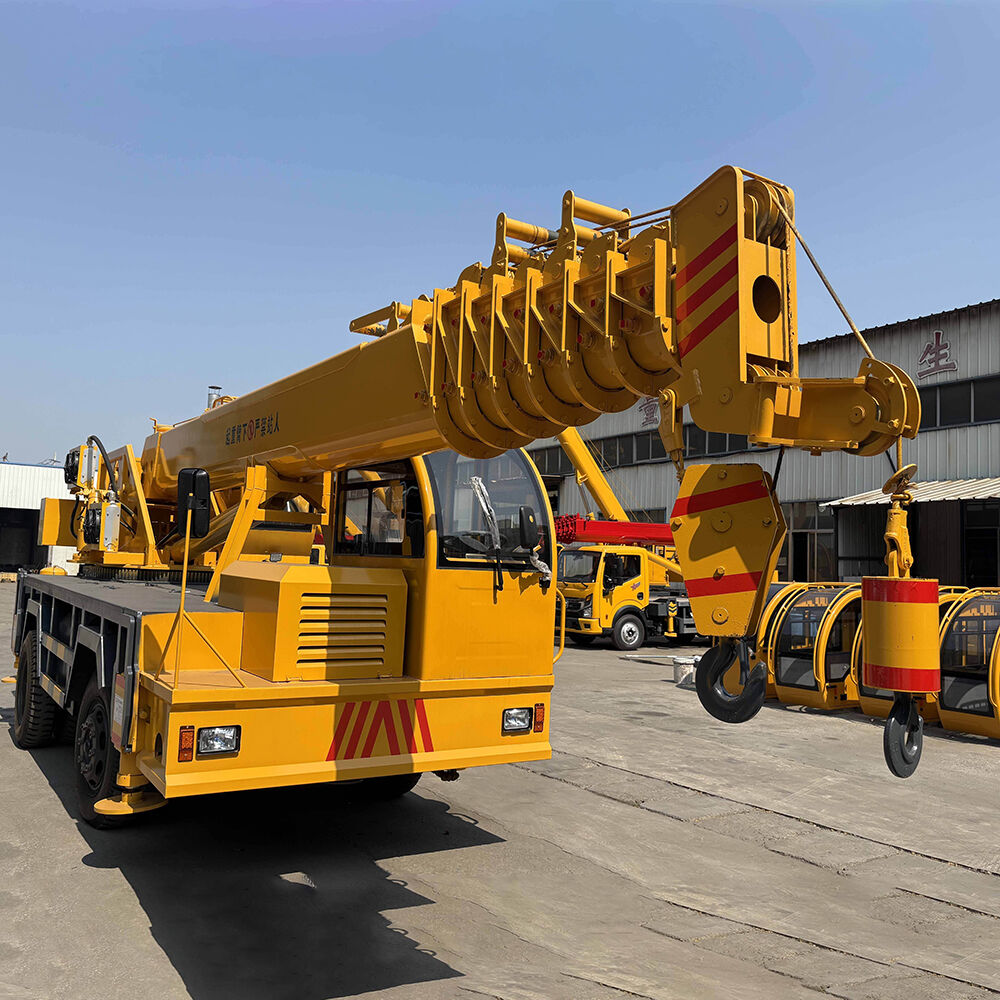

HC12T 12 ton self-made crane
This homemade crane is easily adaptable to multiple scenarios with its exquisite design. Self-made chassis, maximum lifting height 40m.Excellent load-bearing performance, flexible and convenient operation, adjustable height and angle as needed, easy to handle various handling and lifting tasks. For DIY projects and small-scale operations, it is efficient, labor-saving, practical, and highly reliable.
- Overview
- Recommended Products
Brand Model: Custom |
Main Hook Winch: 12T |
Chassis Model: Custom Chassis |
Auxiliary Hook Winch: 12T |
Max Lifting Capacity: 15.8 tons |
Rotating Bearing:1.5m External Gear |
Boom: 6m * 8 sections |
Hydraulic System: 50/40 dual pumps |
Max Lifting Height: 40m |
Central Rotation: Electric, 2-way 4-wire |
Leg Span (Transverse * Longitudinal): |
Frame Dimensions/Extension: |
External Dimensions: 960022503100mm |
Boom Size: Customized |
Lifting Speed (Auxiliary/Primary Hook): 120/90m/min |
Retractable Top: Available |
Rotation Speed: 0-3rpm |
Steering Type: Power-assisted |
Engine Model: 4105 Turbocharged Engine |
Frame Extension (for Counterweight): 500mm |
Motor Power: 15KW |
Frame Extension (Overall): 1.5m |
Tire Model: 825R20 |
Legs: 6 legs (4 double-extended + front & rear legs) |
Axle Model: 145 Axle |
Boom Cylinder: 203 type |
Vehicle Weight: 16 tons |
Steering System: 360° free rotation |
Optional Configurations: Front & rear cabs, cameras, dual pumps, air-cooled & water-cooled cooling | |
