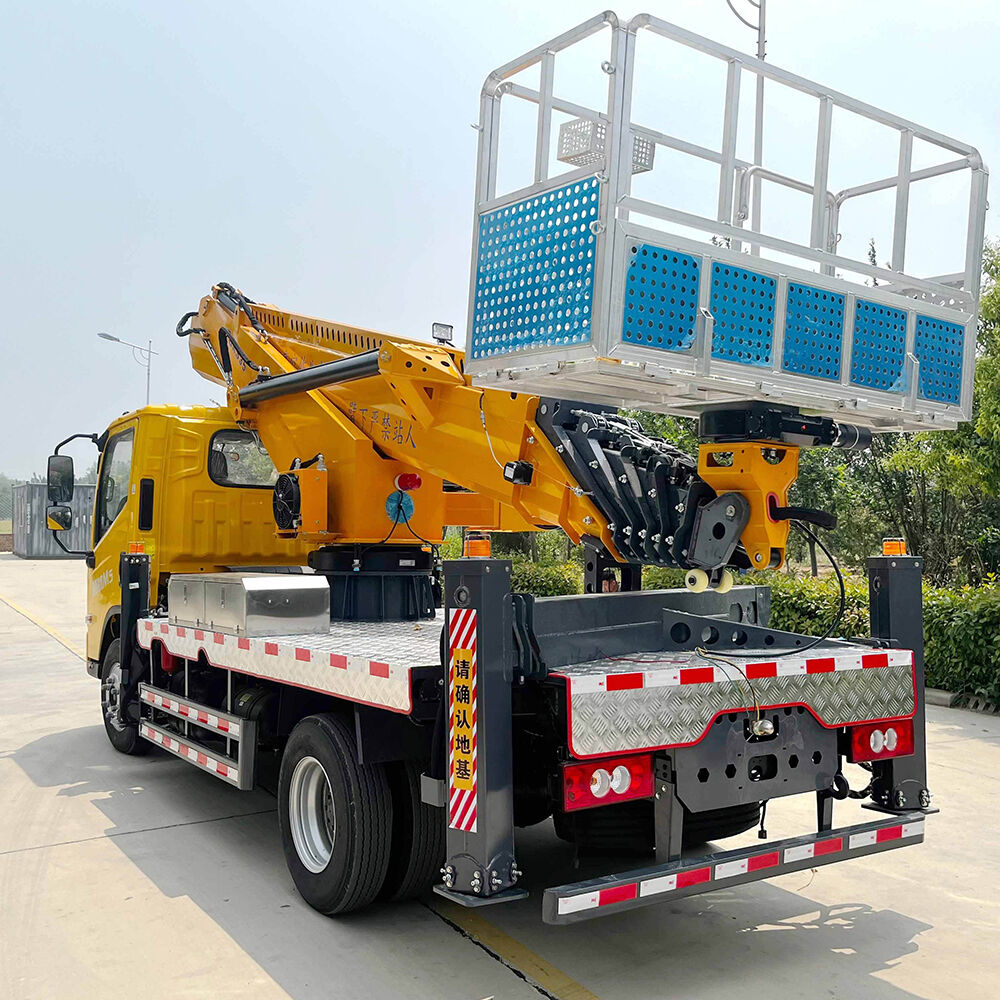

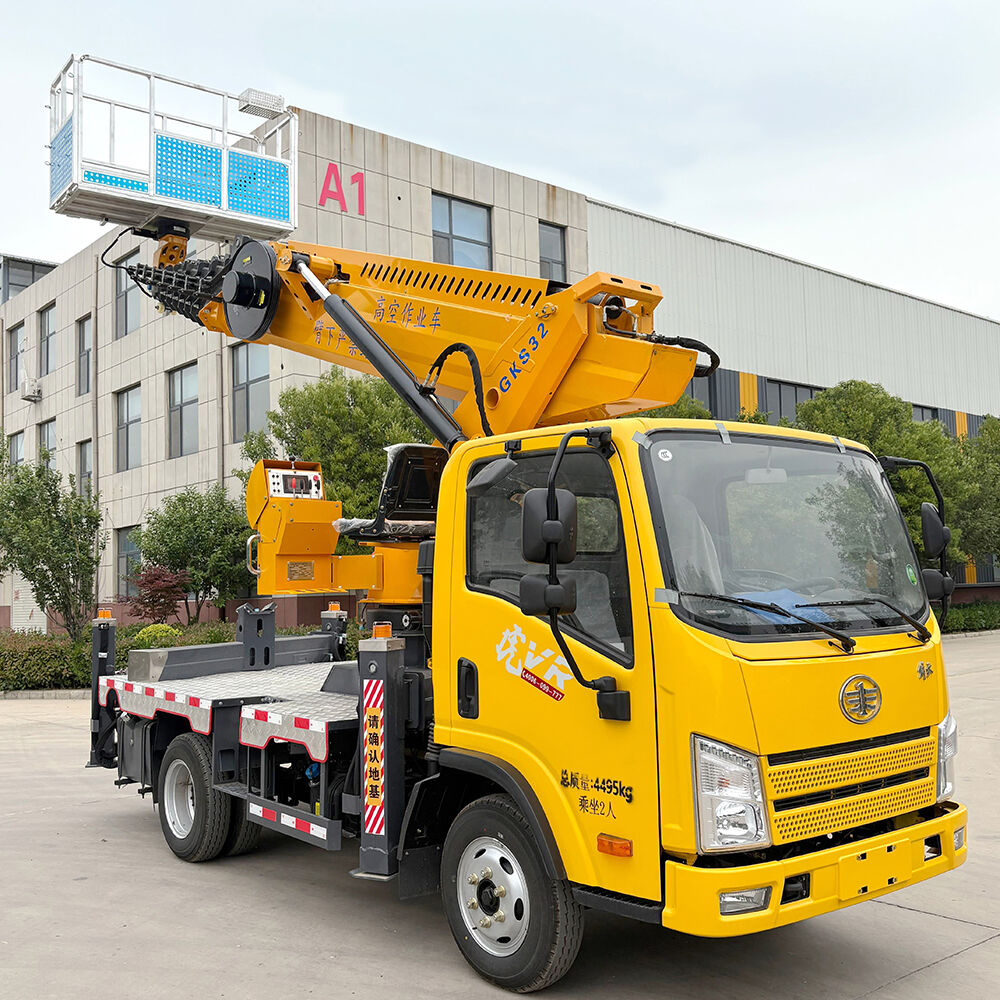

FAW JIEFANG CHASSIS 32m truck-mounted aerial work platform
The FAW Jiefang 32-meter aerial work platform truck uses a dedicated heavy-duty chassis from FAW Jiefang and is equipped with a Quanchai Q23-13260 National VI diesel engine, which is powerful, fuel-efficient, and reliable. The truck has a maximum working height of 32 meters and a corresponding working radius of 3.7 meters, making it suitable for challenging work scenarios such as power line maintenance, municipal maintenance, and telecommunications construction.
- Overview
- Recommended Products
Model：JFGKS32 |
Chassis：FAW jiefang |
Total Length(MM):5998 |
Engine：Full diesel engine Q23-13260(150HP) |
Overall width(MM):2050 |
Tyre：650mm Reinforced Steel-Belted Radial Tire |
Overall height (MM):2950 |
Braking System：Air Brake System |
Act. Wt.(KG):5744 |
Boom Type：8-Stage Drum-Shaped Polygonal Section Boom & 7-Stage Synchronized Telescoping |
Max. Work Height(M):32 |
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation |
Work radius at Max. work height(M):3.7 |
Platform Max. Load Capacity(KG)：200KG |
Max. Work Radius(M)：16 |
Outrigger：X-outrigger(individually adjustable) |
Work height at Max. work radius(M):23 |
Control operation：Work platform and ground remote control operation |
Front overhang(MM):1075 |
Operating system：Electro-hydraulic proportional control system & Realize infinite speed regulation |
Rear overhang(MM)：2120 |
Leveling system：Hydraulic Auto-Leveling System |
Wheelbase(MM)：2800 |
Upper/Lower Interlock System：Safety Interlock System for Boarding and Alighting to Prevent Accidents. |
Transverse Span(MM)：6200 |
Level Detection Function：Real-Time Vehicle Levelness Monitoring. |
Longitudinal Span(MM)：5700 |
E-Stop：Real-Time Vehicle Levelness Monitoring. |
