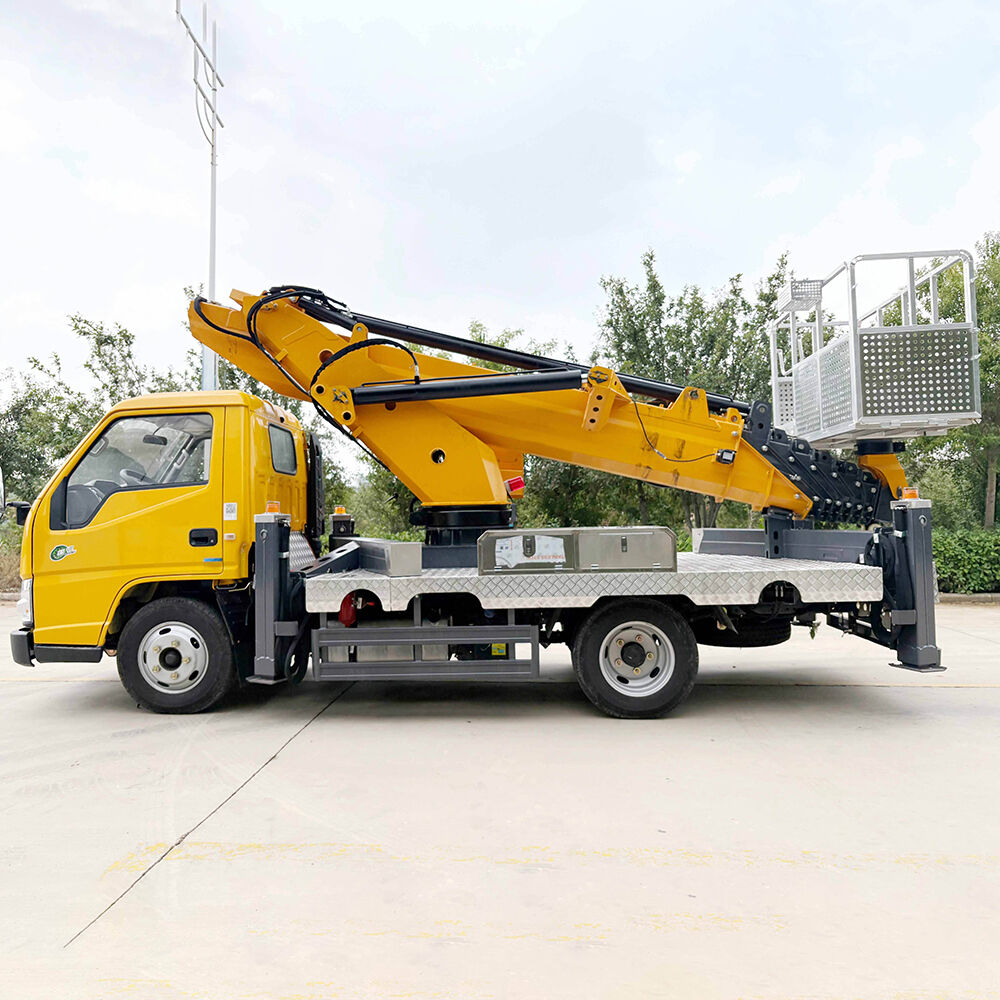

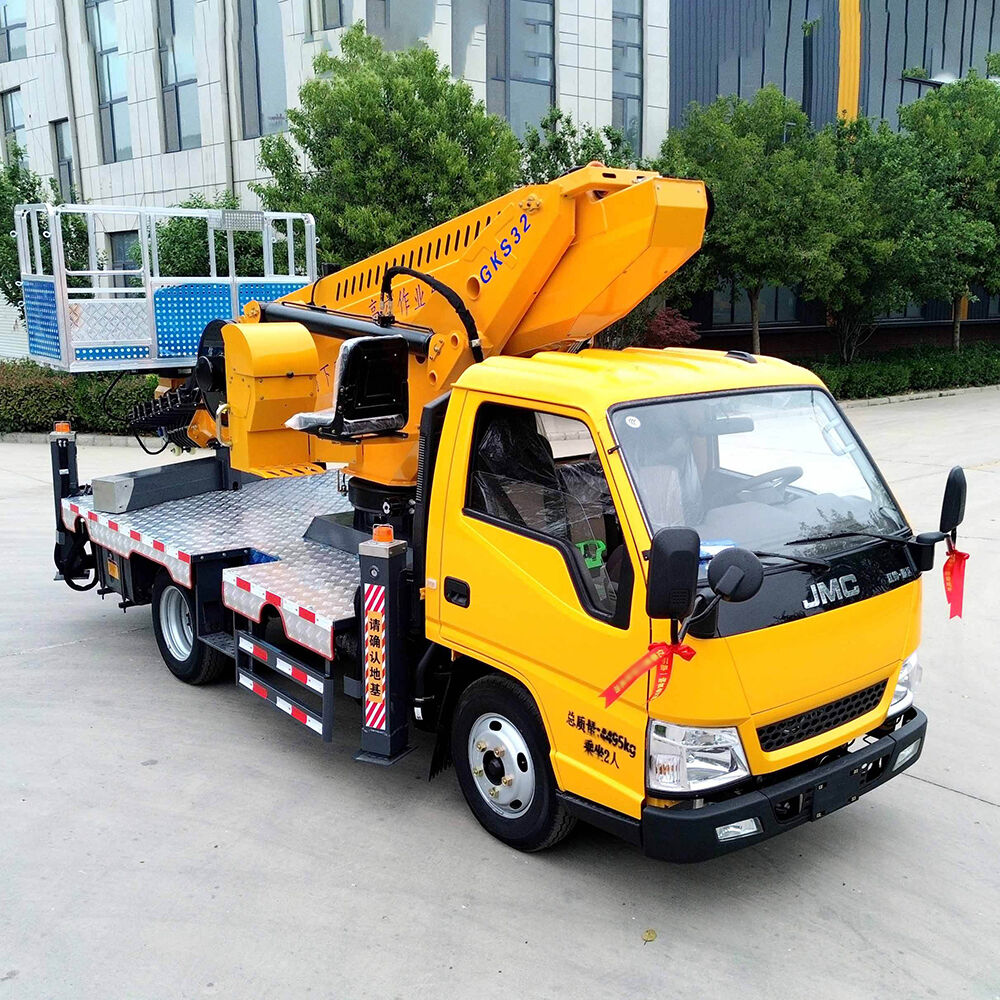

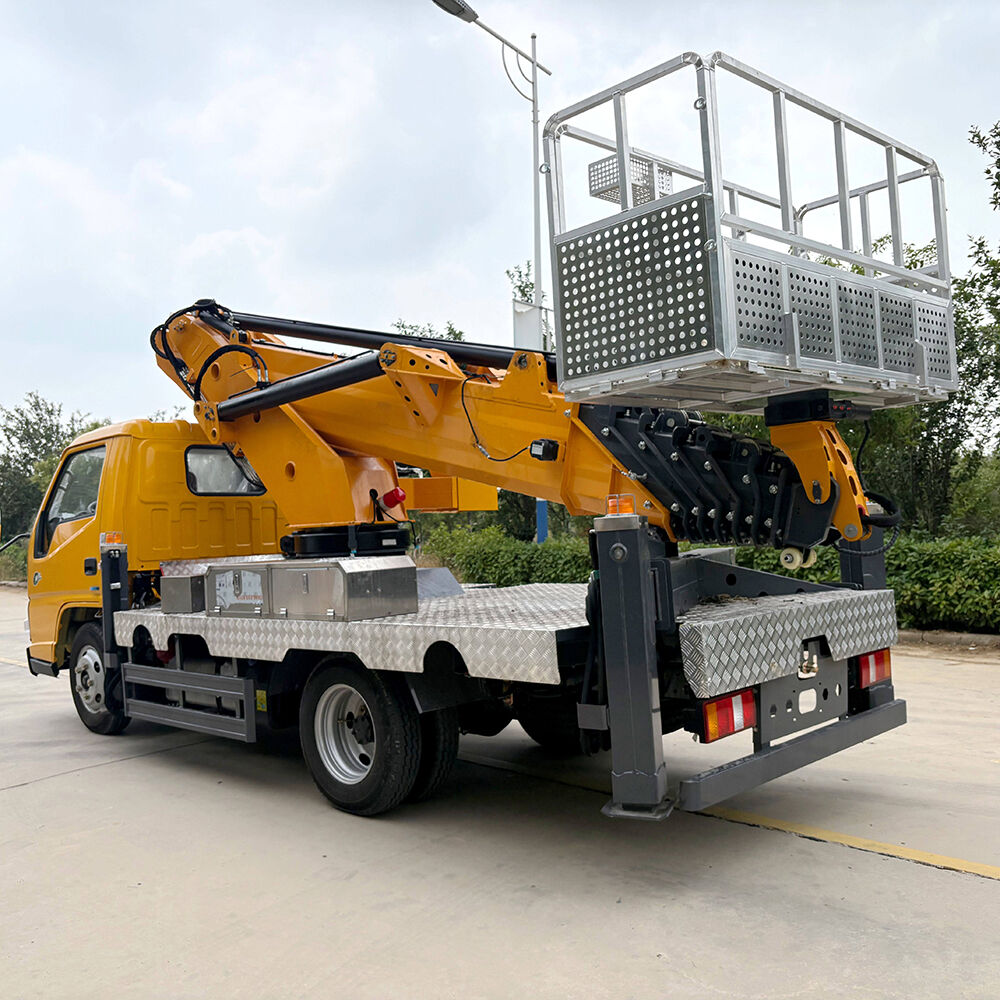

JMC Chassis 32-meter Working Height Vehichle-mounted Aerial Work Platform
The vehichle-mounted aerial work platform is equipped with JMC chassis and telescopic aerial work arm, with a maximum working height of 32 meters and a maximum horizontal working radius of 16 meters. It supports 360° continuous rotation, offering a wide working range and high flexibility. The work platform has a rated load capacity of 200 kg and can accommodate 2-3 workers and necessary tools. It features an automatic leveling system, anti-tipping protection device, emergency descent device, dual-circuit hydraulic system, and multiple safety limit functions to ensure operational safety.
- Overview
- Recommended Products
Model：JLGKS32 |
Chassis：JMC Shunda Chassis |
Total Length(MM):5998 |
Engine：Isuzu engine(122 HP、90KW、Euro 6) |
Overall width(MM):2050 |
Tyre：650mm Reinforced Steel-Belted Radial Tire |
Overall height (MM):2800 |
Braking System：Hydraulic Brake |
Act. Wt.(KG):5586 |
Boom Type：8-Stage Drum-Shaped Polygonal Section Boom & 7-Stage Synchronized Telescoping |
Max. Work Height(M):32 |
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation |
Work radius at Max. work height(M):3.7 |
Platform Max. Load Capacity(KG)：200KG |
Max. Work Radius(M)：16 |
Outrigger：Front and rear V-outrigger(individually adjustable) |
Work height at Max. work radius(M):23 |
Control operation：Work platform and ground remote control operation |
Front overhang(MM):1075 |
Operating system：Electro-hydraulic proportional control system & Realize infinite speed regulation |
Rear overhang(MM)：2120 |
Leveling system：Hydraulic Auto-Leveling System |
Wheelbase(MM)：28001111 |
Upper/Lower Interlock System：Safety Interlock System for Boarding and Alighting to Prevent Accidents. |
Transverse Span(MM)：6200 |
Level Detection Function：Real-Time Vehicle Levelness Monitoring. |
Longitudinal Span(MM)：5560 |
E-Stop：Real-Time Vehicle Levelness Monitoring. |
